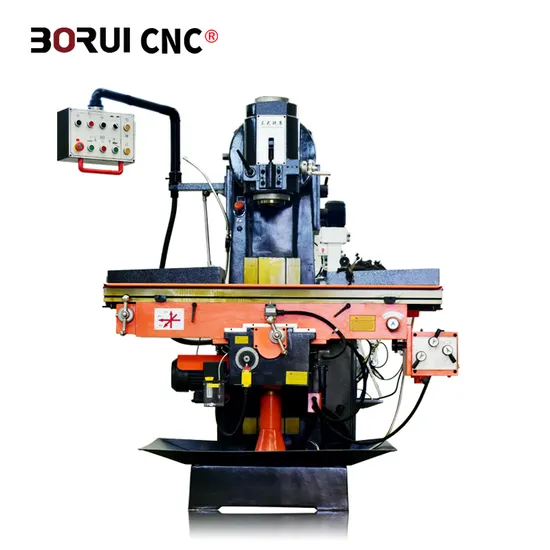

Hot Sell Milling Machine X5032A 3-Axis Digital Display Vertical Milling Machine

Product Description

X5032A Universal Milling Machine Metal Milling Machine
Product Description
Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
The main feature :
1.One more powerful metal cutting machine,
2. High rigidity,
3. Wide range of spindle feed also can bear a heavy burden.
4.The spindle taper hole can install many kinds of cylindrical cutter, disc cutter, form cutter, end milling cutter and so on,
5.Optional accessories as dividing head, rotary table, machine vice,milling chuck, Digital readout, can make such machine more functional.
Advantage :
Rectangular guide ways
Hardened and ground table surface
Spindle swivels +/-45 degrees
Quill moves up and down
The main specification :

Main specification	X5032	X5040
Table size	320 x 1325 mm	400 x 1700 mm
Spindle taper	7:24 ISO 50	7:24 ISO 50
Spindle bore	29 mm	29 mm
Distance from spindle nose to table surface	60-410 mm	30-500 mm
Distance from spindle axis to bed vertical guide way surface	350 mm	450 mm
T-slot(number/width/spacing)	3/18/70	3/18/90
Max. longitudinal travel manual/automatic	700/680 mm	900/880 mm
Max. cross travel manual/automatic	255/240 mm	315/300 mm
Max. vertical travel manual/automatic	350/330 mm	385/365 mm
Rapid speed longitudinal/cross/vertical	2300/1540/770 mm/min	2300/1540/770 mm/min
Max. turning angle of vertical milling head	±45°	±45°
Spindle travel	70 mm	85 mm
Number of spindle speed	18(steps)	18(steps)
Spindle speed range	30~1500 r.p.m	30~1500 r.p.m
Number of table feed	18(steps)	18(steps)
Main motor power	7.5 KW	11 KW
Feed motor power	2.2 KW	3 KW
Overall dimension	2294X1770X 1904	2556X2159X2258
Net weight/Gross weight	2900 /3200	4250/4350

Standard Accessories: 1.Drill chuck
2.Mill chuck
3.Inner hexagon spanner
4.Work light
5.Reduction sleeve
6.Draw bar
7.Spindle arbor
8.wrench
Optional Accessories: 1.DRO on X, Y, Z--AXIS 2.Clamping kit
3.Universal dividing head
