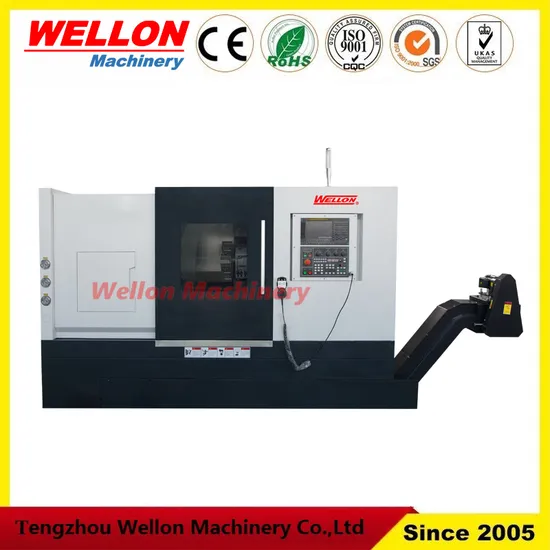

Tck75L Hot Sale 4 Axis Slant Bed CNC Lathe with CE Certificate
Basic Info.
Model NO.
TCK75L
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
GS, CE, ISO 9001
Condition
New
Max Swing Over Bed
780
Center Distance
2000/3000
Spindle Nose
A2-8
Spindle Motor Power
18.5
X Axis Limit Travel
350
Z Axis Limit Travel
2100/3000
Bed Slant Angle
45
Transport Package
Wooden
Specification
CE ISO900 rohs
Trademark
WELLON
Origin
Tengzhou China
Product Description
Detailed PhotosProduct Parameters
| Specifications | TCK75L |
| Max.swing over bed (mm) | Φ780 |
| Max.swing over cross slide (mm) | Φ500 |
| Center distance (mm) | 2000/3000 |
| Spindle nose | A2-8/A2-11 |
| Spindle motor power (kw) | 18.5-22 |
| Max.spindle speed (rpm) | 2500/2000 |
| Spindle bore (mm) | 88/105 |
| Max through bar diameter (mm) | 75/87 |
| Chuck size | 12" |
| Bed slant angle | 45° |
| X axis limit Travel (mm) | 350 |
| Z axis limit Travel (mm) | 2100/3000 |
| X/Z axis rapid moving (m/min) | 20/24 |
| X/Z axis leadscrew (mm) | 50/63 |
| X/Z axis linear guideway (mm) | 55/55 |
| X/Z axis drive motor torque (N/M) | 18/18 |
| X/Z axis position accuracy (mm) | 0.008 |
| X/Z axis repeat accuracy (mm) | 0.005 |
| Tailstock quill diameter (mm) | 150 |
| Tailstock quill travel (mm) | 150 |
| Tailstock taper | MT5 |
| Machine dimension (cm) | 600/700 *210*220 |
| Weight(kg) | 9000/11600 |
