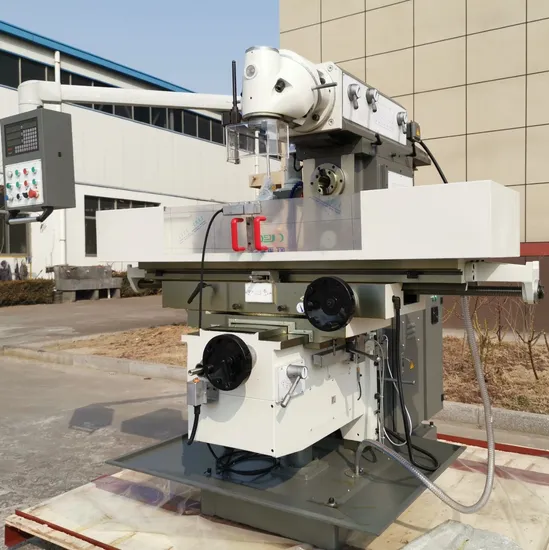

XL6436 XL6436c XL6436cl X6436 Conventional Vertical and Horizontal Swivel Head Automatic Feed Universal Milling Machine Price with Dro

Product Description

Product Description
XL6436 XL6436C XL6436CL X6436
Conventional Vertical and Horizontal Swivel head automatic feed Universal Milling Machine Price with DRO
1.Finely graduated feeds in all axis, driven by servo motor, it is a patent product in our company.
2.Complete with rapid feed in x-, y- and z-axis to reduce downtime
3.Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance
Fast delivery . Welcome your inquiry !!!
Detailed Photos
The XL6436 series milling machines are universal machines that are capable of diverse machining, like drilling, reaming, milling and boring.
Featuring optimum structure, easy operation and less maintenance, the machine can also be equipped with DRO system for higher positioning and efficiency in batch production.
The machines have a wide application for single-piece or small batch production in manufacturing, instruments, construction, maintenance and repair workshops and so like industries.
360 degree swivel head 45 degree swivel table (XL6436CLW) CE electric components
3-axis digital readout(optional) XYZ 3-axis automatic feed by servo motor vertical spindle motor 4KW
Worktable protection(optional) It`s our patented product. Horizontal spindle motor 5.5KW
Product Parameters

Specifications	Unit	X6436	X6436C	X6436CL
Table size	mm	1325×360		1600×360
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375
Spindle taper		7:24 IS050 (H) 7:24 IS050 (V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	196-656	196-646
Distance between horizontal nose and table surface	mm	20-480	20-470
Distance between spindle axis and arm surface	mm	200
Spindle speed range	r.p.m	12 steps 60-1750 (V) 12 steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)
3 to feed Ac servo motor torque	N.m	15
Overall size	mm	1800×2100×2000	2245×2100×2000	2520×2100×2000
Net weight	kg	2685	2750	2800

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Machine packed with plywood case and steel pallet.
Certifications

In 2002, we passed the ISO9001 quality guarantee system certification, and got the certificate of CE in 2007.
