Factory Price High Precision CNC Lathe Metal Cutting Milling Machine

Product Description

High efficiency and high rigidity vertical machine tool with fully enclosed shield type
Product Description
Suitable for: This machine tool is suitable for the short axis and the disk type parts processing
Feature

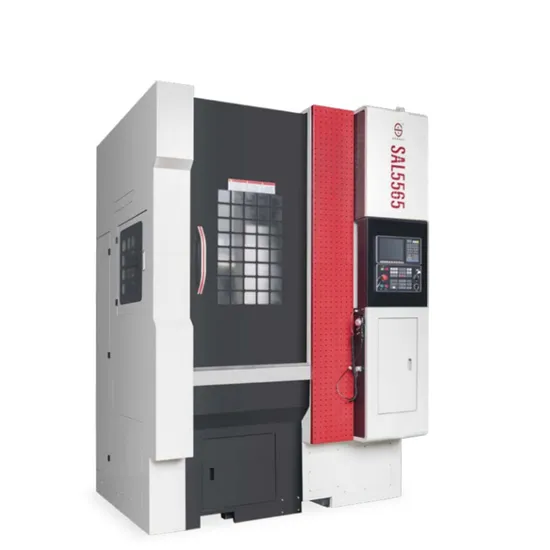

SAL5565 vertical lathe is a high-speed, high-effiffifficiency, high-rigidity machining equipment, roughness and precision integration, process intensive processing. The machine tool adopts fully enclosed protective cover to prevent dust corrosion of machine parts, the main confifiguration is imported, and part of it adopts the parts of famous domestic enterprises to enhance the stability of the machine tool and prolong the service life of the machine tool, and the whole machine has a stable and generous modelling, which is mainly designed for the demand of automobile brake drums, wheel hubs, motor housings and valves, and so on.
Product Parameters

Machining capacity	Maximum turning diameter /mm	700
	Maximum turning diameter /mm	600
	Maximum turning height mm	550
	Maximum boring height mm	255
Stroke	X-axis mm	610
	Z-axis mm	650
Rapid traverse rate	X-axis fast v m/min	12
	z-axis fast v m/min	12
Spindle	RPM r/min	100-500
	Spindle motor power Kw/rpm	22/1000
	Spindle End Form	A2-11
	OD /mm	160
	ID /mm	80
	Reduction ratio	1:2
Factory accuracy	Repeatability mm	±0.003
	GNSS mm	±0.005
	Minimum positioning unit mm	0.001
Chucks and turrets	Three-jaw nakasumi hydraulic chuck Inch	21"
	Turret	12-station servo turret
	Turret centre height mm	125
	Distance to the side of the turret mm	480
Control systems	Standard configuration
	X servo motor Nm/rpm	27/2000
	Z servo motor Nm/rpm	27/2000
	Main motor Kw/rpm	15/375
	Display	Chinese display
	Transmission interface	USB
Cutting coolant system	Cooling motor	180
	Pump output L/min	50
	Cutting fluid tank capacity L	300
	Automatic chip conveyor
Power requirements	PS V	380
	Electricity consumption Kw	35
	AT °C	5~38
	AH	<85%
	Hydraulic pump station	2.2KW/50Hz-50L
Other parameters of the machine	WT Kg	7000
	SIZE LxWxH(mm)	2280x1815x3120

Detailed Photos
hot selling product

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
