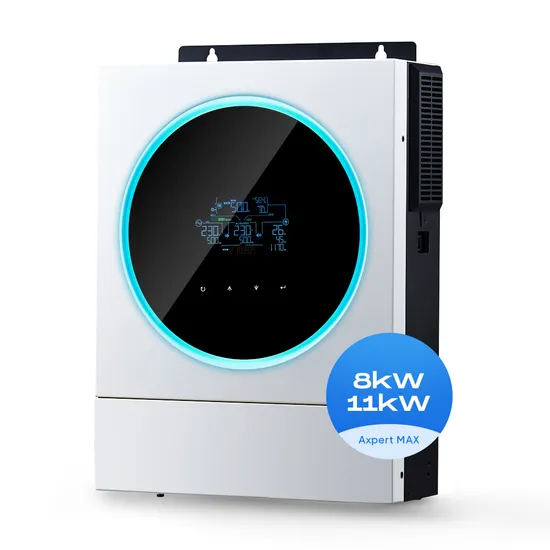

Easun Power Hybrid Inverter Smw 48V 11kw Voltronic Axpert 500VDC Input Pure Sine Wave Inverter 8000W
| US$199.00-599.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
EASUN
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
3600W-11000W
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Voltronic Power
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
PV Input Power
3600W-11000W
MPPT Voltage Range
30-500V
Battery Type
Sealed/Flood/Gel/LFP/Ternary
Battery Voltage
24V/48V DC
Output Voltage Waveform
Pure Sine Wave
Working Temperature Range
-15°c ~ 55°c
No-Load Loss
<25W
Dimensions
119 X 313.6 X 457.5mm
Weight (Kg)
12
Certificate
CE/IEC/FCC
Communication Interface
USB/RS232/RS485/WiFi/Dry-Contact
Transport Package
Carton with Pallet
Specification
3600W-11000W
Trademark
Axpert
Origin
China
Production Capacity
10000pieces/Week
Product Description
Product Description Specification| MODEL | Axpert VM 4 3600-24 | Axpert VM 4 5600-48 |
| RATED POWER | 3600VA/3600W | 5600VA/5600W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |
| Surge Power | 7200VA | 11200VA |
| Efficiency (Peak) | 90% ~ 93% | |
| Transfer Time | 15 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 33 VDC | 63 VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Solar Charger Type | MPPT | MPPT |
| Maximum PV Array Power | 4000W | 6000 W |
| MPPT Range @ Operating Voltage | 120 ~ 450 VDC | |
| Maximum PV Array Open Circuit Voltage | 500 VDC | |
| Maxmum Solar Charge Current | 120 A | 120 A |
| Maximum AC Charge Current | 100 A | 100 A |
| Maximum Charge Current | 120 A | 120 A |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 119 x 313.6 x 422.8 | |
| Net Weight (kgs) | 10.0 | 12.0 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
| MODEL | Axpert VM 4 TWIN 4K | Axpert VM 4 TWIN 6K |
| RATED POWER | 4000VA/4000W | 6000VA/6000W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 10% | |
| Surge Power | 8000VA | 12000VA |
| Efficiency (Peak) | 90% ~ 93% | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 33 VDC | 63 VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Solar Charger type | MPPT | |
| Maximum PV Array Power | 5000W | 6000W |
| MPP Range @ Operating Voltage | 60 ~ 450 VDC | 60 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC | 500 VDC |
| Maximum PV Input Current | 27A | |
| Maximum Solar Charge Current | 120A | 120A |
| Maximum AC Charge Current | 100A | 100A |
| Maximum Charge Current | 120A | 120A |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 119 x 313.6 x 457.5 | |
| Net Weight (kgs) | 10 | 12 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
| MODEL | Axpert MAX II TWIN 8K | Axpert MAX II TWIN 11K |
| RATED POWER | 8000VA/8000W | 11000VA/11000W |
| PARALLEL CAPABILITY | YES, 6 units | |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | 230VAC ± 5% |
| Surge Power | 16000VA | 22000VA |
| Efficiency (Peak) | 93% | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| DC Voltage | 12 VDC ± 5%, 100W | |
| BATTERY | ||
| Battery Voltage | 48 VDC | 48 VDC |
| Floating Charge Voltage | 54 VDC | 54 VDC |
| Overcharge Protection | 66 VDC | 63 VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Power | 8000W (4000W x 2) | 11000W (5500W x 2) |
| MPPT Range @ Operating Voltage | 90 ~ 450 VDC | 90 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC | 500 VDC |
| Maximum PV Input Current | 27A x 2 (MAX 40A) | |
| Maxmum Solar Charge Current | 150A | 150A |
| Maximum AC Charge Current | 120A | 150A |
| Maximum Charge Current | 150A | 150A |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 158.4 x 503.6 x 530.8 | |
| Net Weight (kgs) | 20 | |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
| STANDARD | ||
| Compliance Safety | CE | CE |
Application
Installation Instructions
Our Factory Established in 2008, the headquarters of our factory is located at Shenzhen, and the factory is located at Chang'an town of Dongguan. Our company is a state level high-tech enterprise that specializes in the R&D, production and sales of solar inverters and charge controllers as well as the world's leading suppliers of off-gird photovoltaic system application technology. Since the establishment, our company has held more than 250 national technology patents and has been successfully selected as an intellectual property demonstration enterprise in Guangdong Province. Our technologies, product processes, and product designs have become industry standards. Until now, our company has developed three product lines, respectively are street light solar charge controller, household solar charge controller and off grid all-in-one solar charge inverter. With the business concept of "integrity, innovation, transcendence, and win-win', our company has established a complete sales and service network both at home and abroad.
