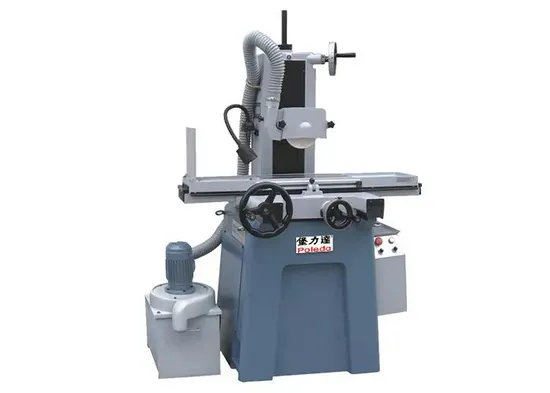

618 Precision Surface Grinder Multifunctional Manual Grinding Machine

Product Description

Product Description
Product Parameters

Mechanical prof perties
Machine structure: The main castings of the machine are made of high-grade cast iron, and through annealing treatment, to eliminate internal stress, to ensure high precision, high rigidity, and extend the life of the machine. Slide way: The machine left and right and front double V slide way adhesive wear-resistant resin TI URCITE-B, and precision shovel flower, not only smooth sliding and wear-resistant, the most suitable for forming and grinding.
Cylindrical straight spindle: The machine adopts P4 ultra-precision angular roller bearing, low noise, no vibration, large torque under high-speed rotation, suitable for heavy cutting and all kinds of forming grinding.
Automatic lubrication system: the use of circulating automatic lubrication system. When the main spindle starts, the lubricating oil automatically circulates immediately to provide forced lubrication for each screw and slide, which can greatly reduce the wear degree of slide. An oil mirror is installed above the column to monitor the lubrication condition.

Product Name
Product Name		Grinding machine
Product model		M618/618/618S/618H
Product technical parameters
	1 Table size		150*450MM(6*18'')
	2 Maximum grinding length		475MM(18-3/4'')
	3 Maximum grinding width		160MM(6-1/3'')
	4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
	5 Standard disk size		150*350MM
	6 Left and right feed/manual stroke		485MM(19'')
	7 Front and rear feed/manual stroke		160MM(7'')
	8 Hand wheel feed (per turn)		5MM(0.2'')
	9 Hand wheel feed		0.02MM(0.001'')
	10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
	11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
	12 Spindle speed (50/60HZ)		2800RPM
	13 Spindle motor		1.5HP
	14 Weight (approximate)		800kgs
	15Machine size (L * W * H)		1350*1050*1850MM
	Grinding machine configuration	Accessories name and specification		quantity
	Standard parts for machine tools	1,Grinding wheel and flange		1
		2,Wheel removal wrench		1
		3,Hexagonal wrench		1
		4,Leveling screws and foot pads		1
		5,Grinder guide oil		1
		6,Toolbox and adjustment tools		1
		7,Hanging rings		1
		8,Grinding wheel		1
	Special parts for machine tools	9,Grating electronic ruler		1
		10,Detail disk		1

Detailed Photos
Our Advantages

Packaging & Shipping
Certifications

FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .

4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.

5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac
