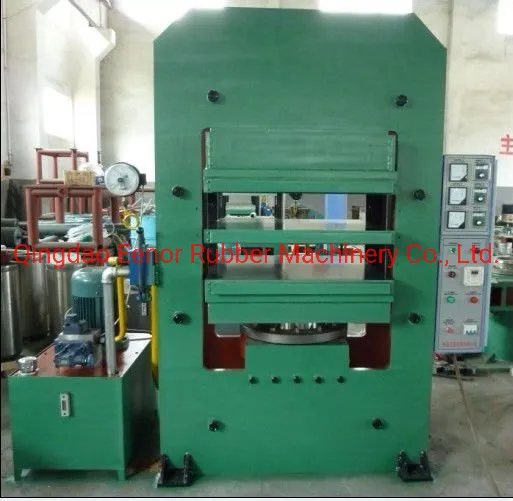

Animal Cushion Curing Press Machine Equipment

Product Description

animal cushion curing press machine equipment
Application:
Vulcanizing machine is used for vulcanizing all kinds of rubber products. In our practical application, we usually add mold to produce all kinds of rubber and plastic proiducts, like rubber mat, shoes tread, small tyre, o ring, rubber seals and so on, and also some un-mould products like conveyor belt.

Structure:
The machine is mainly consists of oil hydraulic control system, piston, hot plate and electric relay or PLC control system.

Features:
1. The way of heating the plate adopts electrical heating, steam heating or heat conducting oil heating.
2. Heating Plate Material: used good quality steel-Q235.
3. Adopts automatic PLC touch screen control or electric relay manual control system, can realize the clamping, exhaust, temperature control, curing time, alarm, mold unloading function. Touch screen can display the plate temperature of each heating zone.
4. Hydraulic cylinder made of ZG270-500 material, the plunger adopts hard alloy cast iron dense texture, after casting and finish grinding; sealing hydraulic cylinder used of YX type sealing ring.
5. Hydraulic system: the hydraulic station using the well-known brands at home and abroad, can realize the automatic of mold, exhaust and mold unloading.


All of those all has several type components, like the power of motor, the size of hot plate, our engineer and me will combine your requirement assemble the best equipment, trust us.


Technical parameters:

Column type

Type	XLB-DQ400*400*2	XLB-DQ600*600*2	XLB-DQ750*850*2	XLB-DQ1000*1000*2	XLB-DQ1500*1500*2	XLB-DQ300*300*2
Total pressure	0.50 MN	1.00 MN	1.60 MN	4.00 MN	8.00 MN	0.25 MN
Plate size	400*400 mm	600*600 mm	750*850 mm	1000*1000 mm	1500*1500 mm	300*300 mm
Plate clearance	125 mm	125 mm	125 mm	125 mm	125 mm	125 mm
Working layer nuber	2	2	2(4)	2(4)	2(4)	2
Piston stroke	250 mm	250 mm	250(500)	250(500)	250(500)	250 mm
Plate pressure	3.1 Mpa	2.8 Mpa	2.5 Mpa	4.0 Mpa	3.6 Mpa	2.1 Mpa
Motor power	2.2 kw	3 kw	3 kw	5.5 kw	5.5 kw	2.2 kw
weight	1300 kg	3500 kg	6500 kg	11000 kg	22000 kg	1050 kg

Frame type

Type	XLB-D780*600	XLB-D800*1000	XLB-D900*1100	XLB-D1000*1200	XLB-D1350*1500
Total pressure (T)	160	250	300	500	1000
Plate size (mm)	780*600	800*1000	900*1100	1000*1200	1350*1500
Plate clearance (mm)	200	140	150	150	150
Layer number	2	4	4	4	6
Motor power (kw)	5.5	7.5	7.5	11	22

We are professional rubber machine manufacturer with 10 years experiences in China. All products have been certified by the State Bureau of Technical Supervision, and have been exported to South Asia, mid East, East Europe, South and North America Africa, Australia and so on.

FAQ:

1.Q:Are you a factory or trading company?

A:We are factory.

2.Q:Where is your factory?How can i visit ?

A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm
welcome visit us.

3.Q:How does your factory control the quality of machines and after sales service?

A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will
provide lifetime maintenance.



Why choose us?

We are ready to give them a turnkey solution, by designing the line according to their space, designing all electrical Installation, water installation, civil foundation, training their people and proving that they will get the targets for production according to the
design.

The cost of the machinery they are paying is one off but the correct production design and machine configuration in order to get
the production targets is the most important point. Even if somebody got the cheapest machine quotation, at the end of the day, what is count are the production quantity, quality and the durability of the machines so to cover the investment in the correct time.

A satisfies customer can bring you ten more customers but one disappointed customer can send away one hundred customers. Reputation in the market is the most important factor for keeping business healthy and in growing line.


Guarantee & After-sale service:
♥One year guarantee for whole machines
♥24 hours technical support by email
♥Calling or door - to -door service.
♥Provide videos for each machine.

Warmly welcome our factory to visit,if you are interested,please dont
hesitate to contact me or leave an inquiry!
