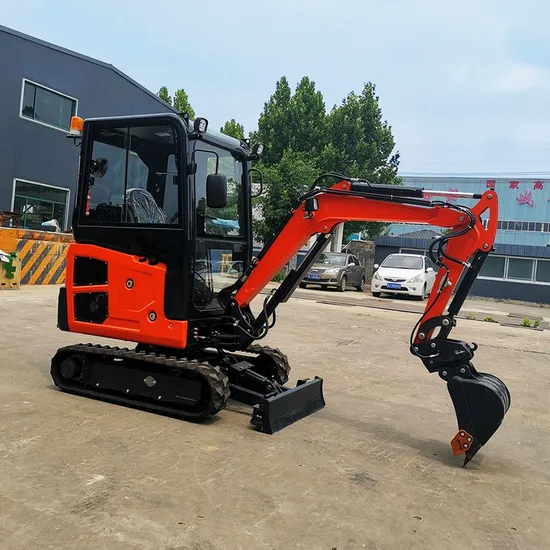

EPA Engine Construction Equipments Closed Cab Mini Digging Machine 2 Ton Excavator
Basic Info.
Model NO.
HT-20
Type
Crawler Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000, EPA
Condition
New
Weight
2000kg
Digging Bucket Capacity
0.06cbm/120kg
Rated Power
18.4kw/3600r/Min
Overall Dimension( Lxwxh)
3865mm*1050mm*2270mm
Max. Digging Depth
2050mm
Max. Digging Height
2385mm
Max. Vertical Digging Depth
1725mm
Max. Digging Radius
3860mm
Emission Standard
Tier 4/ EU (Tier) V
Make
Kubota D1105
Power /Rotation Speed
14.2kw(25HP)@2200rpm
Number of Cylinder
3
Width of Track Shoe(Rubber & Steel Track
230mm
Max. Bucket Digging Force
14kn
Max. Arm Digging Force
10kn
Transport Package
Wooden Box or 20FCL and 40hq
Specification
HT20
Trademark
HIGHTOP
Origin
China
Production Capacity
8000
Product Description
1-China laidong 3TE25 type engine , 18.4kw,stage III / Tier 4/ EU (Tier) V Kubota D1105 14.2kw (25HP) 2200rpm2-China brand pump
3-China brand valves
4-EATON brand slewing motor
5-EATON brand driving motor
6-Open cabin(Canopy)
7-Hydraulic pilot servo operation system
8-Rubber track :230mm
9-With broken pipeline system
10- Bucket capacity: 0.06m³
The crawler excavator is a compact excavator ,which matched china Laidong engine , the boom of excavator can swing to left orright , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with broken pipeline system ,adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and cabin from open to closed. ensure it can work in different working environments and conditions.
Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
