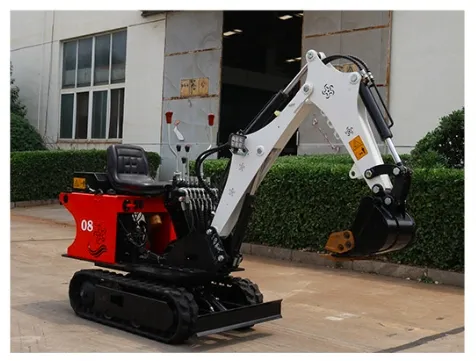

Earth-Moving Machinery Mini Crawler Excavator 0.8 Ton 1 Ton 1.2 Ton Hydraulic Small Digger Excavator for Sale
Basic Info.
Model NO.
kv08
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.035cbm
Size
Small-Scale
Certification
CE, EPA
Condition
New
Track Length
1100mm
Gradeability
40
Max. Digging Height
2500mm
Max. Dumping Height
1600mm
Max.Digging Depth
850mm
Max. Digging Radius
2478mm
Turning Radius
1360mm
Ducket Excavating Force
11kN
Operating Weight
750kg
Pump
Beefing Brand
Working Pressure
16MPa
Hydraulic Tank Capacity
16L
Hydraulic Flow
40L/Min
Transport Length
2200mm
Excavator Height
1880mm
Transport Package
Nude Package or by Plywood Box
Specification
800kg
Trademark
Topsense
Origin
China
HS Code
84295212
Production Capacity
800prices/Year
Product Description
Product Description
Powerful and affordable mini excavators
These mini but powerful machines are now the go-to choice for small construction projects. Due to their compact size, mini excavators can maneuver easily in places where large excavators struggle, making earthmoving easy and speeding up projects.
Detailed Photos
dual pumps load sensitive.soft and powerful in action. faster travel speed .low engine temperature.engergy and oil saving.
double hand front operation systerm.easy to operate.
the bulldozer blade is widened and thickened.durable.
the pin comes with grease fitting.
more lubricating.
strong cylinder ,imported seals,good flexibility, longer use time.
I-shaped industrial chassis,engineering rubber track, can be used in all terrian.
Product Parameters
| MODEL | KV08 | |
| Bucket capacity | cbm | 0.02 |
| Chassis width | mm | 730 |
| Track length | mm | 1100 |
| Gradeability | degree | 40 |
| Chassis ground clearance | mm | 385 |
| Track width | mm | 150 |
| Volume of fuel tank | L | 3.5 |
| Overall dimension | mm | 2000*730*1880 |
| Transport length | mm | 2200 |
| Excavatr height | mm | 1880 |
| Hydraulic flow | L/Min | 40 |
| Hydradulic tank capacity | L | 16 |
| Working pressure | Mpa | 16 |
| Engine | koop 192f diesel engine | |
| Engine power | kw | 7 |
| EPA engine optional | Briggs&Stratton gasoline/13.5hp | |
| Max.digging height | mm | 2500 |
| Max. dumping height | mm | 1600 |
| Max.digging depth | mm | 850 |
| Max.digging radius | mm | 2478 |
| Turning radius | mm | 1360 |
| Bucket excavating force | KN | 11 |
| Operating weight | KG | 750 |
| Configuration | Valve:beifang brand | |
| Pump:xingzo brand | ||
| load sensitive system |
Application Scenario
Packaging & Shipping
After Sales Service
Company Profile
FAQ
Q1: Are you a manufacturer?
A1: Yes. We have ourselves factory, our products are designed and developed by ourselves,have 3000 square meters factory.
Q2: What is your quality control process?
A2:We do 100% testing for all products before packing. We have an excellent QC process and department, they will check every product to make sure it can be used before shipment.
Q3: How long is your guarantee term?
A3: Our product have one year guarantee.
Q4: What's the payment way?
A4: T/T,L/C,D/P,D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash.
Q5: Do you accept ODM/OEM orders?
A5: Yes,we can accept OEM/ODM ,MOQ:5pcs you can change logo and functions if you need.
Q6: how can we guarantee quality?
A6: Always a pre-production sample before mass production;
Q7: what can you buy from us?
A7:Excavator,Forklift,Loader,Grader,Bulldozer
