Spherical Graphite Grinding Mill Line for Lithium-Ion Battery

Product Description

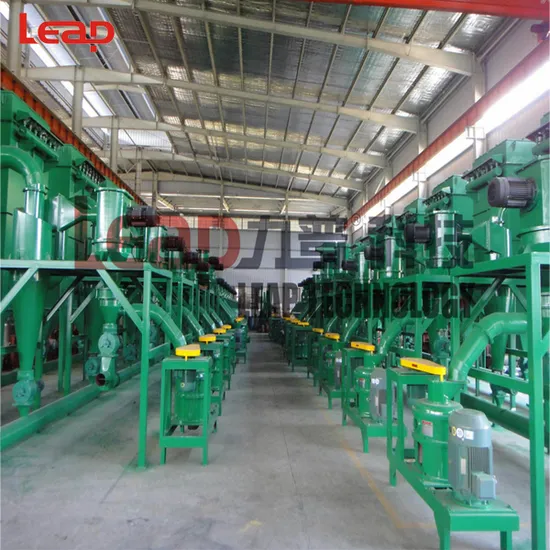

Spherical graphite grinding mill line for Lithium-ion Battery
Our Main Products
Working PrincipleAir classifier mill material would be conveyed by feeding system evenly to milling chamber, and would beimpacted by highspeed rotating beater, and also under the centrifugal force, it would impact the grinding track. By several different pulverization powers, the material would be milled into fine powder. The milled powder would go with air flow up to the classifying chamber. With the help of adjustable classifier wheel,coarsepowder and fine powder would be separated. Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to themilling chamber to be milled again.
Technical Parameter

MODEL		ACM-5	ACM-15		ACM-30		ACM-50	ACM-60		ACM-100	ACM-120
Parameter\
Matched Powder(kw)	Grinding Plate	4	11		22		30	45		90	110
	Classifying wheel	0.75			4		5.5	7.5		11	15
	Feeder	0.35	0.37		0.55					1.1
Air Flow(m3/h)		250-500	1200-2000		2200-3600		3500-5500	4000-7500		7500-15000	9000-18000
Rotation Speed (r/min)	Grinding plate	9000	5600		4600		4200	2900		2100	1800
	Classifying wheel	900-3500	750-2800		700-2800		650-2600	600-2400		500-2000	400-1800
Pulverizatin Fineness(μm)		5-300
Dimension(l×w×h)mm		690×690×770		1300×650×750	1640×960×1030	2000×1200×1300			2000×1200×1300	2400×1500×1600		2400×2200×2600
N.W(kg)		300		600	1000	1600			2000	3000		3500

Work Included Design and supply of a Complete Air Classification Milling system for the production of Spherical Graphite. This includes design and supply of all ancillary items necessary for proper operation of the offered equipment including, but not limited to:
Feed Bin (10m3 minimum capacity) and Feed Screw
Pulverizing Mills Classifiers and Cyclones, both primary and secondary as required -Bag filters/Air blowers/Rotary valves/Pipe both within each classifier unit and interconnecting ducting between stages/Two product collection systems (for 16um and 23um products), inclusive of appropriately sized bag filters, rotary valves and blowers/One fines collection system, inclusive of appropriately sized bag filters, rotary valves and blower/Electrical Cabinet
