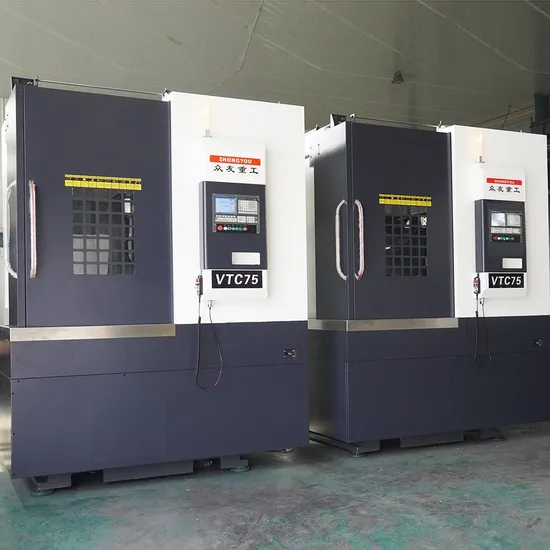

Chinese Professional CNC Vertical Lathe Buy Lathe

Product Description

chinese professional cnc vertical lathe buy lathe
Product Description
This machine is an automatic vertical cnc lath for machining the inner and outer cylindrical surfaces of the parts, conical surface, end surface, grooving and chamfering. It is especially suitable for brake hubs, drums, clutch pressure plates and flywheels. Processing of parts such as shells.


Main Features:

1.The machine tool is a single-column vertical guide rail structure. The column, base and sliding seat are all made of high-grade
gray cast iron resin sand casting process and aging treatment; reasonable structural design, perfect processing and assembly
process to ensure long-term use of machine tools. Stability and accuracy retention.
2.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque, heavy-duty cutting, and high-speed cutting. At the same time meet the needs of roughing and finishing.
3.The machine tool spindle adopts high-precision double-row cylindrical roller bearing and bidirectional thrust angular contact
ball bearing and double row cylindrical roller bearing configuration. The configuration structure has the largest bearing
capacity, can withstand large cutting force and feed force, has high radial stiffness and axial rigidity, and has high rotation
precision.
4.The X and Z axes are made of domestic precision ball screw pair and ball screw special bearings, which meet the requirements of high rigidity and high precision cutting. The pre-stretching structure of the screw support greatly reduces the influence of
thermal deformation on the accuracy of the machine during long-term operation.
5.The X and Z axes adopt advanced centralized automatic lubrication device, timed automatic intermittent lubrication, and the work is stable and reliable.
6.The machine tool holder adopts the electric knife holder or the row knife form, with accurate accuracy and high efficiency.

Product Parameters

Specification	UNIT	VTC75	VTC80
Max.Swing diameter	mm	750	800
Spindle speed	rpm	100~1000	100~800
Cutting feed speed	mm/min	0.1~1000	0.1~1000
Vertical moving distance of tool holder	mm	750	800
Tool rest horizontal moving distance	mm	750	550
Longitudinal fast moving speed	mm/min	16000	16000
Transverse fast moving speed	mm/min	16000	16000
Tool holder form		horizontal	horizontal
Diameter of hydraulic chuck	mm	400/500/630	400/500/630
Main motor power	Kw	22	22
positioning accuracy	mm	±0.008	±0.008
Re -positioning accuracy	mm	±0.004	±0.004
Machine size	mm	2050x1800x3200	2050x1800x3200

Application

This series machine is suitable for machining parts in all industries. Especially for wheel cutting and milling.On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.Since the workpiece is mounted on the horizontal worktable, it is more convenient to clamp the workpiece.
Packaging & Shipping



1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.

Our Services
Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Company Profile

Our company has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.


FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
