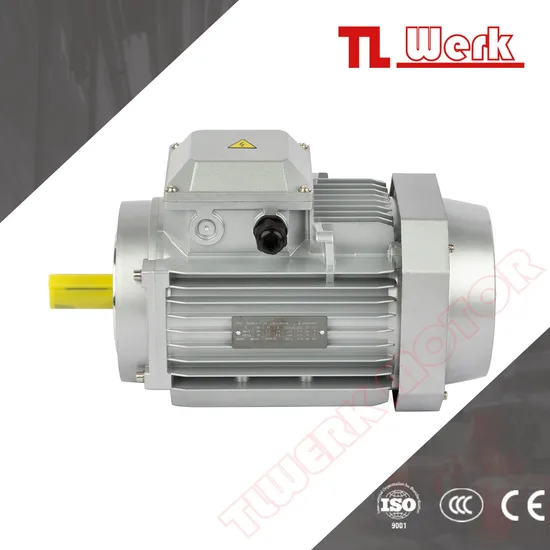

Ys/Ms Ye3 Ye4 B14 2.2kw Three Phase Asynchronous Machine for Hoisting

Product Description

Welcome to TLWERK Motors, where precision engineering meets unparalleled innovation. As a leading force in the realm of electric motor production, TLWERK is dedicated to delivering cutting-edge solutions that redefine industries and power the future.
Product Description
YS (MS), YE3, Y4 Motor Series
YS (MS), YE3, YE4 series three-phase asynchronous motors with Aluminum housing adopted the newest design and high quality material.lt is conformity with the IEC 34-1 standards. The efficiency of the motors can meet EFF2 and EFF1 if requested. That good features: perfect performance low noises light vibration, reliable running, good appearance, small volume and light weight.
YEJ Brake Motor Series
Brake motor is made of two parts: three-phase asynchronous motors and brake, it belongs to three-phase-asynchronous motor derived series. Manual brake release and bolt release are two forms of brake. Brake is the main components of the brake motor. Its working power divided into two categories: One is AC braking, the other is DC braking. Our company produces brake motors are DC brake motors, the advantage of the braking torque is below, easy installation, braking response speed, high reliability, versatility and other advantages.
To the Ac power to the brake coil is provided with suction cups for low voltage winding rated DC voltage. A single-phase AC power is rectified then supply to a sucker winding to make it work so the brake motor terminal box fitted with a rectifier, wiring diagram below.Brake motor braking time (t) is the time from the motor and brake stopping the power to the shaft completely stopped, under normal circumstances, for 63 to 880 frame size motor, the braking time is 0.5 seconds. For o-132 frame size motor the braking time is 1 second, For 160 to180 frame size motor, the braking time is 2 seconds.
YVP Frequency Conversion Motor Series
YVP speed has become the popular way, can be widely used in various industries continuously variable transmission.
In the variable frequency motor speed control system, using power electronic inverter as a power supply is inevitable that there will be high harmonics, harmonic greater impact on the motor. Mainly reflected in the magnetic circuit and the circuit harmonic magnetic potential harmonic currents. Different amplitudes and frequencies of harmonic currents and magnetic flux will cause the motor stator copper loss rotor aluminum consumption. These losses of the motor efficiency and power factor reduction, the majority of these losses into heat, causing additional heating of the motor, causing the motor temperature increases, the increase in temperature generally 10~20%. As a result of electromagnetic interference power, conduction and radiation, the stator winding insulation aging, resulting in deterioration of the common-mode voltage and leakage current of accelerated beaning, bearing perishable, while the motor screaming. Since harmonic electromagnetic torque constant harmonic electromagnetic torque and vibration harmonic MMFs and rear rotor harmonic current synthesis. The torque of the motor torque will generate pulsating issued, so that the motor speed vibration is low.
Our produce YS, IE2, IE3, IE4 Series Universal three-phase asynchronous motor design, our main consideration is the motor overload, starting performance, efficiency and power factor. Another major consideration for non-sinusoidal motor power adaptability. Suppose the influence of higher harmonic current to the motor. Since the motor is increased when the working
Temperature of the low-frequency region, class F insulation dl ass above, the use of polymer insulation materials and vacuum pressure impregnation process, and the use of special insulation structure. Ln order to reduce the electromagnetic torque ripple, improve the precision mechanical parts to improve the quality level constant. high-precision bearing mute. n order to eliminate vibration motor, the motor structure to strengthen the overall design.
OPERATING CONDITIONS:

Ambient temperature:	-15ºC<0<40ºC	Duty:	S1 (continuous)
Altitude:	not exceed1000m	Insulation class:	B/F/H
Rated voltage:	380V, 220V-760Vis available	Protection class:	lP54/IP55
Rated frequency:	50HZ/60HZ	Cooling method:	IC0141

Production Flow Product Overall & Installation Dimensions
YS/MS Series

Frame size	lnstallation Dimensions B3 (mm )									lnstallation Dimensions B5 (mm )					lnstallation Dimension B14 (mm )					Mounting Dimensions (mm )
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	M	N	P	S	T	AB	AC	AD	HD	L
56	90	71	36	9	20	3	7.2	56	5.8	100	80	120	7	3	65	50	80	M5	2.5	110	120	100	155	195
63	100	80	40	11	23	4	8.5	63	7	115	95	140	10	3	75	60	90	M5	2.5	125	130	100	165	215
71	112	90	45	14	30	5	11	71	7	130	110	160	10	3.5	85	70	105	M6	2.5	140	150	110	185	246
80	125	100	50	19	40	6	15.5	80	10	165	130	200	12	3.5	100	80	120	M6	3	160	170	135	215	285
90S	140	100	56	24	50	8	20	90	10	165	130	200	12	3.5	115	95	140	M8	3	178	185	137	226	335
90L	140	125	56	24	50	8	20	90	10	165	130	200	12	3.5	115	95	140	M8	3	178	185	137	226	335
100L	160	140	63	28	60	8	24	100	12	215	180	250	15	4	130	110	160	M8	3.5	206	206	150	250	376
112M	190	140	70	28	60	8	24	112	12	215	180	250	15	4	130	110	160	M8	3.5	222	228	170	285	400
132S	216	140	89	38	80	10	33	132	12	265	230	300	15	4	165	130	200	M10	4	257	267	190	325	460
132M	216	178	89	38	80	10	33	132	12	265	230	300	15	4	165	130	200	M10	4	257	267	190	325	500
160M	254	210	108	42	110	12	37	160	15	300	250	350	15	5	215	180	250	M12	4	320	330	255	420	615
160L	254	254	108	42	110	12	37	160	15	300	250	350	15	5	215	180	250	M12	4	320	330	255	420	675
180M	279	241	121	48	110	14	42.5	180	15	300	250	350	19	5	265	230	300	M15	4	355	380	280	455	700
180L	279	279	121	48	110	14	42.5	180	15	300	250	350	19	5	265	230	300	M15	4	355	380	280	455	740

YE3, YE4 Series

Frame size	lnstallation Dimensions B3 (mm )									lnstallation Dimensions B5 (mm )					lnstallation Dimension B14 (mm )					Mounting Dimensions (mm )
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	M	N	P	S	T	AB	AC	AD	HD	L
56	90	71	36	9	20	3	7.2	56	5.8	100	80	120	7	3	65	50	80	M5	2.5	110	120	100	155	195
63	100	80	40	11	23	4	8.5	63	7	115	95	140	10	3	75	60	90	M5	2.5	125	130	100	165	215
71	112	90	45	14	30	5	11	71	7	130	110	160	10	3.5	85	70	105	M6	2.5	140	150	110	185	246
80	125	100	50	19	40	6	15.5	80	10	165	130	200	12	3.5	100	80	120	M6	3	160	170	145	215	305
90S	140	100	56	24	50	8	20	90	10	165	130	200	12	3.5	115	95	140	M8	3	178	185	165	226	360
90L	140	125	56	24	50	8	20	90	10	165	130	200	12	3.5	115	95	140	M8	3	178	185	165	226	385
100L	160	140	63	28	60	8	24	100	12	215	180	250	15	4	130	110	160	M8	3.5	270	206	175	250	445
112M	190	140	70	28	60	8	24	112	12	215	180	250	15	4	130	110	160	M8	3.5	270	228	190	285	455
132S	216	140	89	38	80	10	33	132	12	265	230	300	15	4	165	130	200	M10	4	270	267	220	325	475
132M	216	178	89	38	80	10	33	132	12	265	230	300	15	4	165	130	200	M10	4	270	267	220	325	570
160M	254	210	108	42	110	12	37	160	15	300	250	350	15	5	215	180	250	M12	4	320	330	260	420	655
160L	254	254	108	42	110	12	37	160	15	300	250	350	15	5	215	180	250	M12	4	320	330	260	420	685
180M	279	241	121	48	110	14	42.5	180	15	300	250	350	19	5	265	230	300	M15	4	360	380	305	455	705
180L	279	279	121	48	110	14	42.5	180	15	300	250	350	19	5	265	230	300	M15	4	360	380	305	455	745

Product Performance Parameter
YS/MS Series

TYPE	RATED OUTPUT		RATED SPEED	EFFICIENCY	POWER FOCTOR	RATED CURRENT	RATED TORQUE	LOCKED ROTOR TORQUE	MAXIMUM TOROUE	LOCKED ROTOR TORQUE
								RATED TORQUE	RATED TORQUE	RATED CURRENT
	KW	HP	rpm	η%(IE2)	cosφ	A	Nm	Ts/Tn	Tmax/Tn	IS/In
YS-5612	0.09	1/8	2680	62.0	0.68	0.32	0.307	2.3	2.3	6.0
YS-5622	0.12	1/6	2660	67.0	0.71	0.38	0.410	2.3	2.3	6.0
YS-6312	0.18	1/4	2710	69.0	0.75	0.53	0.614	2.3	2.3	6.0
YS-6322	0.25	1/3	2730	72.0	0.78	0.68	0.853	2.3	2.3	6.0
YS-7112	0.37	1/2	2760	73.5	0.80	0.96	1.260	2.3	2.3	6.0
YS-7122	0.55	3/4	2770	75.5	0.82	1.35	1.880	2.3	2.3	6.0
YS-8012	0.75	1.0	2770	76.5	0.85	1.75	2.560	2.2	2.3	6.0
YS-8022	1.10	1.5	2800	77.0	0.85	2.55	3.750	2.2	2.3	7.0
YS-90S-2	1.50	2.0	2840	78.5	0.85	3.42	5.040	2.2	2.3	7.0
YS-90L-2	2.20	3.0	2840	81.0	0.86	4.80	7.400	2.2	2.3	7.0
YS-100L-2	3.00	4.0	2890	84.6	0.87	6.17	9.910	2.2	2.3	7.8
YS-5614	0.06	1/12	1320	56.0	0.58	0.28	0.410	2.4	2.4	6.0
YS-5624	0.09	1/8	1320	58.0	0.61	0.39	0.614	2.4	2.4	6.0
YS-6314	0.12	1/6	1350	60.0	0.63	0.48	0.819	2.4	2.4	6.0
YS-6324	0.18	1/4	1350	64.0	0.66	0.65	1.230	2.4	2.4	6.0
YS-7114	0.25	1/3	1350	67.0	0.68	0.83	1.710	2.4	2.4	6.0
YS-7124	0.37	1/2	1350	69.5	0.72	1.12	2.520	2.4	2.4	6.0
YS-8014	0.55	3/4	1380	73.5	0.73	1.56	3.750	2.4	2.4	6.0
YS-8024	0.75	1.0	1390	75.5	0.75	2.01	5.120	2.3	2.4	6.5
YS-90S-4	1.10	1.5	1400	78.0	0.78	2.75	7.400	2.3	2.4	6.5
YS-90L-4	1.50	2.0	1400	79.0	0.79	3.65	10.100	2.3	2.4	6.5
YS-100L1-4	2.20	3.0	1440	84.3	0.81	4.90	14.600	2.3	2.3	7.6
YS-100L2-4	3.00	4.0	1440	85.5	0.82	6.50	19.900	2.3	2.3	7.6
YS-7116	0.18	1/4	910	59.0	0.61	0.76	1.890	2.0	2.0	5.5
YS-7126	0.25	1/3	910	63.0	0.62	0.97	2.260	2.0	2.0	5.5
YS-8016	0.37	1/2	910	68.0	0.62	1.33	3.880	2.0	2.0	5.5
YS-8026	0.55	3/4	910	71.0	0.64	1.84	5.770	2.0	2.0	5.5
YS-90S-6	0.75	1.0	920	73.0	0.68	2.30	7.790	2.0	2.1	5.5
YS-90L-6	1.10	1.5	920	74.0	0.70	3.23	11.400	2.0	2.1	6.0
YS-100L-6	1.50	2.0	940	79.0	0.75	3.38	15.200	2.0	2.1	6.5
YS-711-8	0.09	0.12	600	40.0	0.57	0.60	1.950	1.8	1.9	2.8
YS-712-8	0.12	0.18	600	45.0	0.57	0.71	2.160	1.8	1.9	2.8
YS-801-8	0.18	0.25	645	51.0	0.61	0.88	2.490	1.8	2.0	3.3
YS-802-8	0.25	0.37	645	54.0	0.61	1.15	3.640	1.8	2.0	3.3
YS-90S-8	0.37	0.50	670	62.0	0.61	1.49	5.120	1.8	2.0	4.0
YS-90L-8	0.55	0.75	670	63.0	0.61	2.17	7.610	1.8	2.1	4.0

YE3 Series

TYPE	RATED OUTPUT		RATED SPEED	EFFICIENCY	POWER FOCTOR	RATED CURRENT	RATED TORQUE	LOCKED ROTOR TORQUE	MAXIMUM TOROUE	LOCKED ROTOR TORQUE
								RATED TORQUE	RATED TORQUE	RATED CURRENT
	KW	HP	rpm	η%(IE3)	cosφ	A	Nm	Ts/Tn	Tmax/Tn	IS/In
YE3-801-2	0.75	1.0	2880	80.7	0.82	1.72	2.49	2.3	2.3	7.0
YE3-802-2	1.10	1.5	2880	82.7	0.83	2.43	3.65	2.2	2.3	7.3
YE3-90S-2	1.50	2.0	2895	84.2	0.84	3.22	4.95	2.2	2.3	7.6
YE3-90L-2	2.20	3.0	2895	85.9	0.85	4.58	7.26	2.2	2.3	7.6
YE3-100L-2	3.00	4.0	2895	87.1	0.87	6.02	9.90	2.2	2.3	7.8
YE3-160L-2	18.50	25.0	2940	92.4	0.89	34.20	60.10	2.0	2.3	8.2
YE3-802-4	0.75	1.0	1420	82.5	0.75	1.84	5.04	2.3	2.3	6.6
YE3-90s-4	1.10	1.5	1445	84.1	0.76	2.61	7.27	2.3	2.3	6.8
YE3-90L-4	1.50	2.0	1445	85.3	0.77	3.47	9.91	2.3	2.3	7.0
YE3-100L1-4	2.20	3.0	1435	86.7	0.81	4.76	14.60	2.3	2.3	7.6
YE3-100L2-4	3.00	4.0	1435	87.7	0.82	6.34	20.00	2.3	2.3	7.6
YE3-112M-4	4.00	5.5	1440	88.6	0.82	8.37	26.50	2.2	2.3	7.8
YE3-132S-4	5.50	7.5	1460	89.6	0.83	11.20	36.00	2.0	2.3	7.9
YE3-132M-4	7.50	10.0	1460	90.4	0.84	15.00	49.10	2.0	2.3	7.5
YE3-160M-4	11.00	15.0	1465	91.4	0.85	21.50	71.70	2.2	2.3	7.7
YE3-160L-4	15.00	20.0	1465	92.1	0.86	28.80	97.80	2.2	2.3	7.8
YE3-180M-4	18.50	25.0	1470	92.6	0.86	35.30	120.20	2.0	2.3	7.8
YE3-180L-4	22.00	30.0	1470	93	0.86	41.80	142.90	2.0	2.3	7.8
YE3-90S-6	0.75	1.0	935	78.9	0.71	2.03	7.66	2.0	2.1	6.0
YE3-90L-6	1.10	1.5	945	81	0.73	2.83	11.10	2.0	2.1	6.0
YE3-100L-6	1.50	2.0	949	82.5	0.73	3.78	15.10	2.0	2.1	6.5
YE3-112M-6	2.20	3.0	955	84.3	0.74	5.36	22.00	2.0	2.1	6.6
YE3-132S-6	3.00	4.0	968	85.6	0.74	7.20	29.60	2.0	2.1	6.8
YE3-132M1-6	4.00	5.5	968	86.8	0.74	9.46	39.50	2.0	2.1	6.8
YE3-132M2-6	5.50	7.5	968	88	0.75	12.70	54.30	2.0	2.1	7.0
YE3-160M-6	7.50	10.0	970	89.1	0.79	16.20	73.80	2.0	2.1	7.0
YE3-160L-6	11.00	15.0	970	90.3	0.8	23.10	108.30	2.0	2.1	6.2
YE3-180L-6	18.50	20.0	975	91.2	0.81	30.90	146.90	2.0	2.1	7.3

YE4 Series

	OUTPUT	RATED CURRENT	ROTATE SPEED	EFFICIENCY	POWER FOCTOR	RATED TORQUE	LOCKED ROTOR TORQUE	LOCKED ROTOR CURRENT	MAXIMUM TORQUE	NOISE
TYPE							RATED TORQUE	RATED CURRENT	RATED TORQUE
	kW	A	r/min	Eff.%(IE4)	P.F	N.m	Tst	Ist	Tmax	dB(A)
							TN	IN	TN
SYNCHRO-SPEED 3000r/min
YE4-80M1-2	0.75	1.6	2895	83.5	0.83	2.47	2.2	8.5	2.3	62
YE4-80M2-2	1.1	2.4	2895	85.2	0.83	3.63	2.2	8.5	2.3	62
YE4-90S-2	1.5	3.1	2880	86.5	0.85	4.97	2.2	9.0	2.3	67
YE4-90L-2	2.2	4.4	2880	88.0	0.86	7.30	2.2	9.0	2.3	67
YE4-100L-2	3	5.9	2905	89.1	0.87	9.86	2.2	9.5	2.3	74
YE4-112M-2	4	7.7	2920	90.0	0.88	13.10	2.2	9.5	2.3	77
YE4-132S1-2	5.5	10.4	2945	90.0	0.88	17.80	2.0	9.5	2.3	79
YE4-132S2-2	7.5	14	2940	91.7	0.89	24.40	2.0	9.5	2.3	79
YE4-160M1-2	11	20.3	2965	92.6	0.89	35.40	2.0	9.5	2.3	81
YE4-160M2-2	15	27.5	2965	93.3	0.89	48.30	2.0	9.5	2.3	81
YE4-160L-2	18.5	33.7	2965	93.7	0.89	59.60	2.0	9.5	2.3	81
SYNCHRO-SPEED1500r/min
YE4-80M1-4	0.55	1.4	1440	83.9	0.74	3.65	2.4	6.6	2.3	56
YE4-80M2-4	0.75	1.8	1440	85.7	0.74	4.97	2.3	8.5	2.3	56
YE4-90S-4	1.1	2.6	1445	87.2	0.75	7.27	2.3	8.5	2.3	59
YE4-90L-4	1.5	3.4	1445	88.2	0.76	9.91	2.3	9.0	2.3	59
YE4-100L1-4	2.2	4.7	1450	89.5	0.79	14.50	2.3	9.0	2.3	64
YE4-100L2-4	3	6.3	1450	90.4	0.8	19.80	2.3	9.5	2.3	64
YE4-112M-4	4	8.3	1460	91.1	0.8	26.20	2.3	9.5	2.3	65
YE4-132S-4	5.5	11.4	1475	91.1	0.8	35.60	2.0	9.5	2.3	71
YE4-132M-4	7.5	15.2	1470	92.6	0.81	48.70	2.0	9.5	2.3	71
YE4-160M-4	11	21.6	1470	93.3	0.83	71.50	2.0	9.5	2.3	73
YE4-160L-4	15	28.9	1470	93.9	0.84	97.40	2.0	9.5	2.3	73
SYNCHRO-SPEED1000r/min
YE4-80M1-6	0.37	1.1	940	78.0	0.68	3.76	1.9	6.0	2.1	54
YE4-80M2-6	0.55	1.5	940	80.9	0.68	5.59	1.9	6.0	2.1	54
YE4-90S-6	0.75	2	950	82.7	0.7	7.54	2.1	7.5	2.1	57
YE4-90L-6	1.1	2.8	950	84.5	0.7	11.10	2.1	7.5	2.1	57
YE4-100L-6	1.5	3.7	960	85.9	0.71	14.90	2.1	7.5	2.1	61
YE4-112M-6	2.2	5.4	975	87.4	0.71	21.50	2.1	7.5	2.1	65
YE4-132S-6	3	7.2	985	88.6	0.71	29.10	2.0	7.5	2.1	69
YE4-132M1-6	4	9.4	985	89.5	0.72	38.80	2.0	8.0	2.1	69
YE4-132M2-6	5.5	12.8	980	90.5	0.72	53.60	2.0	8.0	2.1	69
YE4-160M-6	7.5	16.4	980	91.3	0.76	73.10	2.0	8.0	2.1	73
YE4-160L-6	11	23.5	980	92.3	0.77	107.00	2.0	8.5	2.1	73
