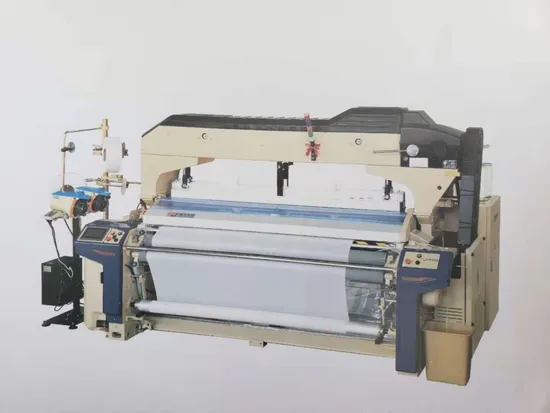

China Top Sales Weaving Machine Water Jet Loom

Product Description

1.our product

HW-3851#
No.	NAME	ORIGIN\TYPE\PERFORMACE DECRIPTION
1	Wall board	We adopts HW3851special heavy enhanced, according to TSUDAKOMA Drawing,HT220-230 standard material,large CNC precision machining.
2	Gear in the large box	Adopt Taiwan Datong(TTG) gear, ultra-quite,wear-resistant,low vibration and high precision
3	Bearing in the large box	Bearing in the large box is swiden SKF, Bearing out of the large box made in japan.
4	Beating up shaft	Adopt special treatment of solid beating up shaft, centralized oil lubrication in the support sleeve, add in weft counterweight balance system (Haijia patent:201220718493.9), optimization of beating up angle, the beating up more powerful and stable, cloth smooth.
5	Slay	SUS304 stainless steel reinforced and polishing processing slay at the top brand in China, achieve cloth smooth.
6	Stripe	Tianqi stripe, For 102 double stick, strengthening take-up.
7	Plastic stocks	New type and high quality plastic stocks
8	Beam	A number of optimization design on the basis of TSUDAKOMA ZW-851, the beam before and after the five angle pipe, steel material supply, before and after the beam with thickened angle.Especially before the beam on Haijia, unique design, draws on the advantages of air jet loom beam, making solid beating up shaft is more stable.
9	Suction pipe	∮76mm,thickness 6mm,sus304 stainless steel.
10	Cross beam	Heavy and lengthen treatment
11	Tension spring	∮12mm
12	Panel	HW3851 Special type
13	Let-off and take -up device	Mechanical or electronic
14	Temple bar,guide	HW3851 Special type ,3mm stainless steel
15	Temple	Five ring three rows of fine needle puncture (0.3mm) under the pressure of Temple (made fine denier fabric cloth smooth) South Korea Renhe or Jilong brand.
16	Leno parts	Taiwan production assembly (slide seat:Stainless steel, low noise ear wire assembly, running smoothly, long service life).
17	Press roll	New press fabric service,press roll 40#,equal tension take-up
18	Main motor	The Haijia special power of 3.0KW red flag.Save electricity,start fast,low noise,little park,long life and other advantages(self-purchased Japan NACHI bearing)
19	Electronic control system	Xinliao Brand.
20	Measuring	Electronic measuring
21	Light detection weft	Light detection weft, plus plug signal amplifier
22	Code	Electronic code
23	Plunger	Shutai ceramic plunger(39/28 mm)
24	Spring	JAPAN AWA spring(∮10x∮150 mm)
25	Nozzle	Korea MDH 90/60 nozzle
26	One way valve	Japan AWA valve,up 8# down 9#.
27	Oil seal	Made in Taiwan
28	Cutter parts	Taiwan joint bearing,scissors,scissors spring ,improve efficiency.
29	Suction motor	Electronic suction motor
30	Stabilized tank	Double filter,bucket type.
31	Take heald level liner	American DuPont material production, wear, long service life.
32	Dobby or heald frame	Customer can match by themselves.
33	Painting	TSUDAKOMA yellow color, two times over the primer, topcoat, special paint production line, improve the anti rust effect.
34	The whole machine of Stainless steel screw	Taiwan dongming SUS304 stainless steel screw,not rust.
35	Waterproof device	Thickened waterproof curtain, TSUDAKOMA style transparent waterproof cover plate.
36	False twist spindle	Pull type
37	Weft stand	Double nozzle standard weft stand.
38	Swing degree	95 Swing degree
39	Casting	Identify quality supplier, according to the standard drawings, guarantee the material and weight.

2.our factory----high precision CNC workshop
3.the high quality product
4.Highly recognized Our products are sold all over the world. 5.our company Qingdao Haijia Machinery Co., Ltd. Was founded in 1996.Haijia Machinery is the largest water jet and air jet loom production base in China.Since 2002, HJ brand loom has been won the first domestic market share for more than 10 years.
6.We provide the most comprehensive and timely quality service. 1)Technical service
our company will provide best services to help you use our machine.As well,if you want to send your technician to our company to learn how to operate machines,we will very pround of it.
2)Quality Guarantee
We provide 12 months warranty.
3)Problem solving
We have professional engineers.
We will deal with your problem at the first time. For any further information,just contact me on-line or mail me !
