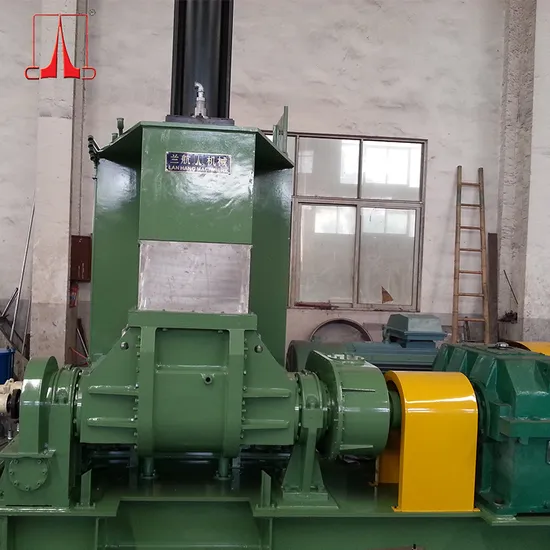

110L Rubber Mixing Kneader Machine Pressed Dispersion Kneader Factory Price with CE

Product Description

Detailed Photos
Our Advantages
Company Information
Founded in 1992, Zhangjiagang Lanhang Machinery Co., Ltd. is a private enterprise integrating scientific research, production, marketing and service of plastic machinery into one complete whole.
Our "Lanhang" brand of planetary roll extruders, straining extruders, powerful horsepower dense mixers, mixing rolls, and high-speed mixers are the backbone of our company.
we sincerely welcome customers to cooperate with us to develop rewarding business partnerships.

product name : ISO9001 and high quality xsn110 rubber lab kneader machine
key word : rubber lab kneader

1) Application& Features
With pressing cover at the top, material could be mixed enenly inside
Discharge tyoe: blending cylinder and extrusion

We can supply high quality products. Lanhang brand planetary screw extruder, straining extruder, pressed kneader,banbury mixer, mixing roll(open type mixer), high-speed mixer unit are the backbone products of the company and are of high technological content and strong practicality with the process technology of planetary extruder and banbury mixer reaching internationally advanced level the company's products sell well over more than twenty domestic provinces and municipalities and are even export to Southeast Asian and Mid-Eastern countries and regions. The product performances and the after-sale service are widely appreciated by the customers.
Product Parameters
2) Main technical parameter

project\model	X(s)N-50/30A	X(s)N-55/30	X(s)N-75/30A	X(s)N-75/30B	X(s)N-110/30	X(s)N-150/30
working volume(L)	35	55	75	75	110	150
roating speed of drive rotor(r/min)	30
roating speed ratio of rotors	1:1:2
loading type	backing charging
discharge type	hydraulic dispersion
main motor power(kw)	55	75	90	110	185	220
weight(kg)	7650	10000	9000	11000	14000	19500

3) Structural member

No.	Item	Specification
1	Machine body	One set
2	Pressuring device	One set
3	Discharging device	One set
4	Transmission gear	One set
5	Tube	One set
6	Electric control system	One set
