China Factory Good Quality Stationary Mixing Batching Dry Mix Concrete Batch Plant
| US$30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HZS25-240 Concrete Mixing Plant
Type
Concrete Mixing Plant
Shotcrete Type
Dry
Machining Process
Hydraulic
Structure
Stationary Mixing Plant
Productivity
25m3-120m3
Feeding Height
Customization
Vibrating Amplitude
2.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Discharge Height
3.8m
Main Mixer
Js500 -- Js2000
Batching Machine
PLD800-3200
Cement Silo
100ton/200ton/300ton(Optional)
Transport Package
Nude
Specification
standard size
Trademark
XINTU
Origin
China
HS Code
847431
Production Capacity
3000sets/Year
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
20000.000kg
Product Description
CONCRETE BATCHING PLANT READY MIX CONCRETE MIXING PLANTBrief Introduction:

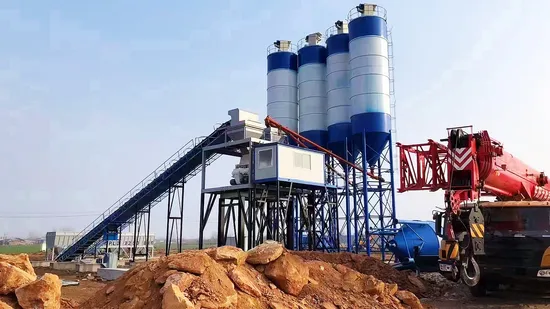

Stationary concrete batching plant is widely used for small or medium-scale building construction, bridge and road construction, and prefabrication of concrete products. It has the advantages of less land occupancy, quick installation and convenient transportation.
Features:
1.This bucket type concrete mixing plant adopts twin shaft concrete mixer, it is with strong mixing power, high mixing evenness and high productivity.
2.The mixing blade and liner is made by high wearing-resistance chromium-manganese alloy, which is more durable with long lift span.
3.The PLD series aggregates batching machine have accumulated weighing or pneumatic independent weighing system for options.
4.The electronic weighting system has a buffer device and automatic volume compensation with high accuracy.
5.The complete set concrete batching plant use full auto control models by computer or full auto SIMENS PLC+PC model, meanwhile, we have PLC semi-auto control system or manual control system for options.
1.HZS BUCKET TYPE STATIONARY CONCRETE BATCHING PLANT
PEODUCT PARAMETERS:
| Model | HZS25 | HZS35 | HZS50 | HZS75 | |
| Capacity (m³/h) | 25 | 35 | 50 | 75 | |
| Mixer | JS500 | JS750 | JS1000 | JS1500 | |
| Aggregate Bin | PLD800 | PLD1200 | PLD1600 | PLD2400 | |
| Discharge Height (m) | 3.8 | 3.8 | 3.8 | 3.8 | |
| Cycle Time (s) | 72 | 72 | 72 | 72 | |
| Weighing Accuracy (%) | Aggregate | ±2 | ±2 | ±2 | ±2 |
| Cement | ±1 | ±1 | ±1 | ±1 | |
| Water | ±1 | ±1 | ±1 | ±1 | |
| Additive | ±2 | ±2 | ±2 | ±2 | |
2.HZS BELT TYPE STATIONARY CONCRETE BATCHING PLANT
PEODUCT PARAMETERS:
