400kg Vacuum Glass Lifter for Indoor Lifting Glass

Product Description

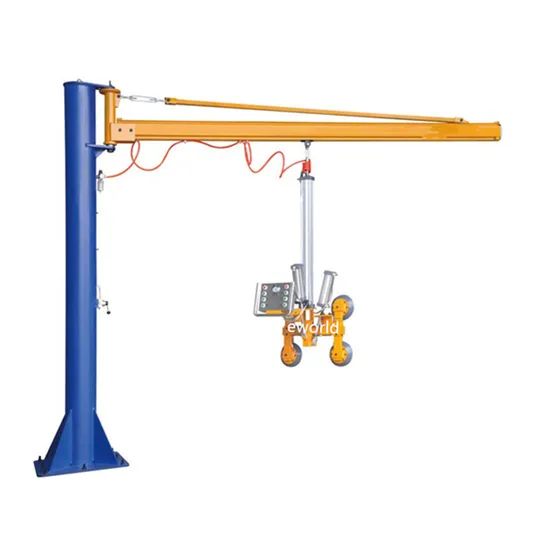

400kg vacuum glass lifter for indoor lifting glass
Model: WL400 Product Description
It is mainly used for better equipment for glass handling. This model only needs an external air source. It is mainly used for glass production and processing, glass deep processing, handling of insulating glass, tempered glass, laminated glass, vertical production line, and horizontal manual gluing line As well as the transfer of glass in the solar photovoltaic glass workshop, it can be flipped perpendicular to the ground, and can also be flipped parallel to the ground. The suction cup can be rotated 360 degrees pneumatically and can be tilted and turned over 90 degrees pneumatically. A suction cup hanger is an ideal tool for handling flat glass. A variety of structure suction cups are available for configuration and the lifting weight can be specially designed and manufactured according to customer needs.
Detailed Photos
Suitable for moving insulating glass /tempered glass/glass curtain wall, on -site construction of glass deep processing, and solar photovoltaic glass
-It can select DC charging vacuum pump, equipped with a battery device.
-Maximum bearing capacity is 500kgs
Sucker diameter: 220mm,8 pcs

Product Parameters

Cantilever crane lifter 400kgs
Dimension	700mm×700mm×800mm
Min.glass size	500mm×800mm
Suction cup weight	100-120KG
Turn on one's side	90ºC
Air press	0.7-0.8Mpa
Cantilever crane angle	270ºC
Cylinder stroke	1.2meter
Max glass weight	400KG
Pilar height	3.5meter
Arm length	4meter

Packaging & Shipping
1.Standard plywood case, its compressive strength and bearing quality is better;
2.The board area is a bit, the soil structure is good, it is better in leakproofness and waterproof;
3.When importing, the plywood case is fumigation-free, the procedure is simple;
4.Delivery Detail: within 20days after received your payment.
Company Profile
Shandong Eworld Machine Co., Ltd is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment. Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machines in China.
We take credit as the base of business and mutual benefits as the soul of business.
"Besides perfecting each product with our utmost effort.
We regard customers as our partners and provide service surpassing the expectation of customers.
We promise "Sincere Service, Permanent Promise".
Our Advantages
Customers in Singapore received the machine, and we guided the installation and use. The customer is very satisfied with our machine now.
India's customers 12-13 years ago bought a double head welding machine, customers used 12 or13 years, has not been a problem, and help customers make a lot of money. Still now, the machine has been updated, Indian customers want to buy a new machine from our side.

After Sales Service
Pre-sale service
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
Payment
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.
FAQ
Q1:Are you a manufacture?
Answer: Yes, we are professional manufacture which has more than 5 workshops.
Q2: How about the service?
Answer:
1). reply it at once if from Ali-trade manager if by email, it reply it within 12 hour
2). deliver max. days within 15 days
3). 24 hours for after-sale service
4). more than 12 years experience in this kind of machine field
5). fluent English, communication barrier-free
Q3:What s the guarantee?
Answer:
1). Our guarantee for 18 months.
2). 24 hour's technical support by email or calling
3). English manual and video tutorial
4). 2 years quality guaranty for the machine (excluding the consumables)
5). We will provide the consumable parts at an agency price
6). 24 hours of online service each day, free technical support.
Q4: Do you provide equipment operation training?
Answer: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q5:if our price is higher than other companies or factories?
Answer: please check, what is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have a breakdown, the most reason is the machine inner electric parts the problem, but we use the famous and reliable parts for the machines inside.
Q6:How long is the delivery time?
Answer: For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to the client's specific requirements, it would be 15 to 30 days.
Q7: What is the payment?
Answer: Any payment method you want, such as L/C, T/T, D/P, West union, and so on.
