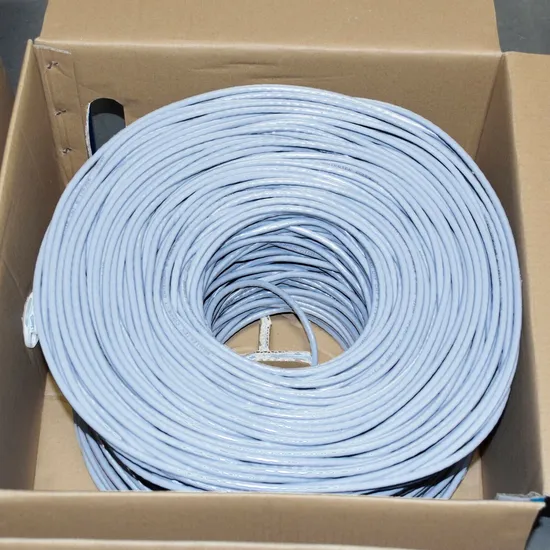

Communication High Quality 24AWG 305m UTP LAN Cable Unshielded Twisted Pair Copper Wire Cat5e CAT6 Network Cable
Basic Info.
Model NO.
CAT6 Network Cable
Cover Material
PVC
Type
Cat 6
Material Shape
Round Wire
Conductor Type
Stranded
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Model
Cat5e & CAT6
Brand
Nh-Link
Product Name
Communication High Quality 24AWG 305m UTP LAN Cabl
Style
Network Cable
Product
Network Patch Cord
Color
Blue, Grey, Green,Red or Others
Transport Package
Cartons
Specification
24 AGW
Trademark
NH-LINK
Origin
Shenzhen, China
HS Code
8544421900
Production Capacity
50000PCS/Day
Product Description
Network Cable Specification| Item Name | FTP Cat6 Cable |
| TYPE | CAT6 Single Shielded |
| Conductor | BC (Pure Copper) |
| CCA(Copper Clad Aluminum) | |
| Number of Conductor | 4Pairs / 8 Cores |
| Specification | 24AWG(4P*2*0.50MM) , As your request |
| Insulation Material | HDPE |
| PE Cross | Plastic Material |
| Single Shielded | Polyester film + Al Foil |
| Drain Wire | CCA |
| Jacket | PVC/LSZH (Indoor) |
| PE (Outdoor) | |
| Color | Grey , Blue , Black etc, As your request |
| Operating Temperature | -20 °C - +75 °C |
| Packaging | 305M/Roll (Indoor) |
| 305M/wooden drum (Outdoor) |
Technical Performance
| Frequency (MHz) | RL >=dB | ATT<=dB | NEXT >=dB | ACR (dB) | PSNEXT>=dB | ELFEXT>=dB | PSELFEXT>=dB | Delay(ns) |
| 1 | 20 | 2 | 74.3 | 72.3 | 72.3 | 67.8 | 64.8 | 570 |
| 4 | 23 | 3.8 | 65.3 | 61.5 | 63.3 | 55.8 | 52.8 | 552 |
| 8 | 24.5 | 5.3 | 60.8 | 55.4 | 58.8 | 49.7 | 46.7 | 546.7 |
| 10 | 25 | 6 | 59.3 | 53.3 | 57.3 | 47.8 | 44.8 | 545.4 |
| 16 | 25 | 7.6 | 56.2 | 48.7 | 54.2 | 43.7 | 40.7 | 543 |
| 20 | 25 | 8.5 | 54.8 | 46.3 | 52.8 | 41.8 | 38.8 | 542 |
| 25 | 24.3 | 9.5 | 53.3 | 43.8 | 51.3 | 39.8 | 36.8 | 541.2 |
| 31.25 | 23.6 | 10.7 | 5 | 41.2 | 49.9 | 37.9 | 34.9 | 540.4 |
| 62.5 | 21.5 | 15.4 | 47.4 | 32 | 45.4 | 31.9 | 28.9 | 538.6 |
| 100 | 20.1 | 19.8 | 44.3 | 24.5 | 42.3 | 27.8 | 24.8 | 537.6 |
| 150 | 18.9 | 24.7 | 41.7 | 16.9 | 39.7 | 24.3 | 21.3 | 536.9 |
| 200 | 18 | 29 | 39.8 | 10.8 | 37.8 | 21.8 | 18.8 | 536.5 |
| 250 | 17.3 | 32.8 | 38.3 | 5.5 | 36.3 | 19.8 | 16.8 | 536.3 |
