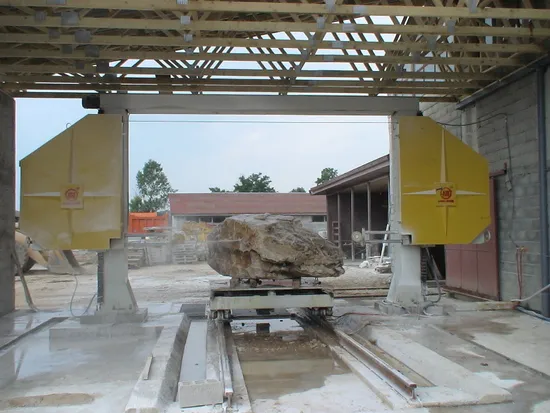

Wet Saw Cut Block Splitting Dressing Stone Machine
| US$23,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CZSJ-2000
Usage
Ceramics, Glass, Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble, Wire Saw Machine for Quarrying
Application
Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, CNC Granite Wire Saw
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
API, CCC, SONCAP, GOST, ISO, CE, Stone Cutting Machine
Product Name
Stone Cutting Wire Saw Machine
Main Motor Power
11kw
After Sales Service Provide
Engineer Available Service Machinery Overseas
Max. Processing Size
3500X2000X2000mm
Water Consumption
6m3/H
Approximate Weight
6 Tons
Quality
European Standard
Transport Package
Seaworthy Wooden Case for Auto Cutting Machine
Specification
10000x6065x3915mm
Trademark
Wanlong
Origin
Fujian, China
HS Code
84641000
Production Capacity
5000sets Per Year
Product Description
Machine Featurea) Gantry structure with wide crossbeam, large size of block cutting available.
b) Independent guide rails on the column make the flywheels move up and down smoothly.
c) Flywheels work stably that improves the service lifetime of the diamond wire saw.
d) Stable and constant stretch via hydraulic system enhances the cutting accuracy.
e)Guide wheel adopts a four-layer sealed protection system to greatly improve the machining precision.
f) Electrical parts adopt name brand to ensure the stability and reliability.
g) Friendly human-machine interface and easy operation.
h) CE certificate
Technical Parameter
| CZSJ-2000 | |
| Diameter of wire saw (mm) | 8.6-10.8 |
| Wire length | 18m |
| Main motor power(kw) | 11 |
| Gross power (kw) | 17.6 |
| Water consumption (cbm/h) | 6 |
| Max. cutting size (LxWxH/mm) | 4000x2000x2000 |
| Worktable size(mm) | 2000x2000 |
| Overall dimension (LxWxH/mm) | 8255x6065x3915 |
| Total weight (kg) | 8,500 |
