Fully Automatic Double Wall Paper Cup Bowl Sleeve Making Machine with Intelligence Controller

Product Description

TOPPRO NEW TYPE PAPER BOWL MAKING MACHINE!Product DescriptionWJ-90 MIDDLE-SPEED PAPER BOWL FORMING MACHINE

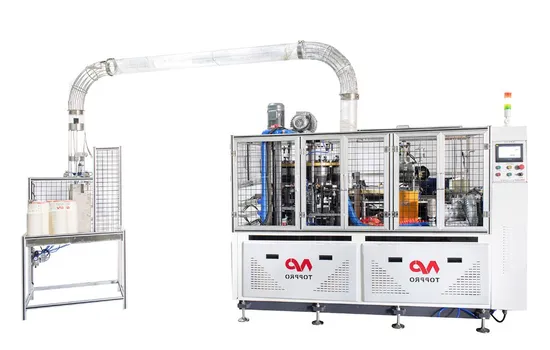

WJ-90 Middle-speed paper bowl forming machine is a machine that developed on the technique of Korea machine. It has the function of automatic paper feeding, preheating, sealing, oil injection, bottom cutting, heating, knurling, curling, and so on. It can alarm via sensor checking, counting and collecting itself. WJ-80 paper bowl machine is an equipment both for single and double PE coated paper bowl, making soup bowls and noodles bowl etc. This machine speed can reach80-100pcs/min
Product Parameters

Model	WJ-90
Paper bowl Size	Bottom:70-110mm Top: 95-140mm Height: 60-150mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	80-100pcs/min
Suitable paper weight	170-350gsm
Voltage supply	380v50hz 3-phase *If user's voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.6-0.8mpa 0.4m3/min User should buy Air Compressor
General power	10.5kw
Net weight	2000kgs
Measurement (mm)	2500*1300*1800

Detailed Photos1. The core components adopt open cam design, with gear motor
2. Machine has full automatic lubrication by oil pump and filtration, more convenient for maintenance.
3. Separated curling from knurling and heaters makes less noise on machine than old design, more stability and long lifetime
.
4. Control panel use touch screen, a clearer vision, the whole electrical appliances adopt imported configuration, have high generality and good performance, and facilitate equipment maintenance.
5. Use new rotary type paper fan feeding system, instead of traditional linear bearing, to ensure machine performance more stable and faster machine speed.
Packaging & Shippingour paper cup machine all package with strong woodencase,and also will send you a tool box,english manual and electric diagram with machine,also will send you a CD to teach you how to operate machine.
Company ProfileWenzhou TOPPRO Machinery Co..Itd. is a professional manufacturer of paper container machine, who was established in 1999,located in Ruian City,Zhejiang Province, China. Our pros paper cup machine, paper bowl machine, paper cone machine, die punching machine and so on. The company occupy an area of 9033.74 square meters. The company has obtained CE & SGS certificates. In past 10 years, we have successful foreign trading experience in Europe, South America, Africa and Southeast Asia/ Mideast. We pursue "quality first, service paramountcy", welcome the clients at home and abroad to cooperate.Certifications
FAQ
Q1: if the machine break down overseas, what is the effecient to solve the problem?
A1: Basially , the machine is easy to operate, the engineer can teach the client how to fix the machine by video or email. And the engineer are available to overseas.
Q2: The payment, MOQ, producing period and delivery time?A2: T/T 30 % as the deposit, and the balance payment should be paid before delivery.
MOQ is 1 set.
The producing time is 25 days after deposit.
The delivery time is within 5 days after balance payment.
Q3: How to get my company?
A3: The address: 7# building , Yongding Road, Songjiadai Industril Zone, Feiyun Town , Ruian city.
If you want to visit my company, please send your ticket information to my skype or email. I will meet your in the Wenzhou Longwan Airport.
Contact information:
If you are interested in our paepr cup machine,
Do not hesitate to contact us
Contact person: James Ye
Waiting for your coming~
