Indoor Optical Fiber Production Line/Optical Fiber Equipments/Optical Fiber Tinting Machine/Fiber Optic Complete Equipments

Product Description

Product Description Indoor optical cable equipment is mainly composed of tightly packed optical fiber production line, single and double core flexible optical cable production line, multi-core optical cable production line, FTTH type leather cable optical cable production line, the price of this page is the price of a series of indoor optical fiber production line, in addition, you also choose fiber processing services, welcome to consult.

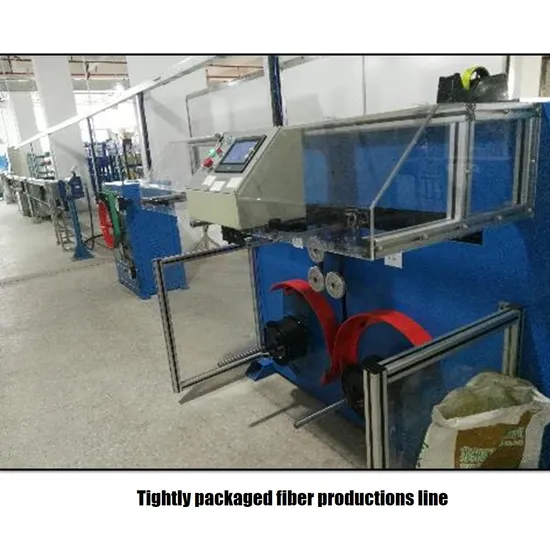

1.Tightly wrapped fiber optic machine
Tight-buffered optical fiber equipment is primarily employed for the fabrication of tight-buffered optical fibers. Tight-buffered optical fibers entail a closely encased layer of materials, such as plastic, on the exterior of the optical fibers. This type of equipment typically encompasses an optical fiber pay-off device, a coating material supply system, a coating mold, a curing device, and other components.
Optical fiber pay-off device: It is accountable for releasing the original optical fiber at a specific tension and speed, serving as the inception of the entire production process and ensuring the smooth entry of the optical fiber into the subsequent processing stages. For instance, the unwinding speed of the optical fiber is controlled by a high-precision motor drive system to accommodate diverse production rhythms.
Coating material supply system: It is utilized for the storage and precise conveyance of coating materials, such as acrylates, silicone rubber, and other polymeric materials. These materials are required to fulfill requirements like excellent optical transparency and environmental resistance in terms of performance. This system can precisely regulate the flow rate and pressure of the materials, guaranteeing that the coating materials are uniformly wrapped around the optical fiber.
Coating mold: It is a crucial component that determines the shape and thickness of the coating layer. Its internal structure is precisely designed to enable the coating material to form a homogeneous coating on the surface of the optical fiber. For example, through a specialized mold design, the distribution of the coating material in the circumferential direction of the optical fiber is maintained consistent, thereby manufacturing high-quality tight-buffered optical fibers.
Curing device: It is employed to rapidly cure the material coated on the surface of the optical fiber. Common curing modalities include ultraviolet curing and thermal curing. Ultraviolet curing utilizes ultraviolet radiation to induce a polymerization reaction in the photoinitiator within the coating material, thereby achieving rapid curing. Thermal curing is accomplished by heating the material, inducing a chemical reaction in the curing agent within it to achieve the purpose of curing.
2.Single and dual core soft fiber optic cable production line
Production process and equipment composition: Single and double fiber cable equipment is mainly used for the production of single and double fiber cable. Its production process generally includes optical fiber pay-off, reinforcement pay-off, extrusion, cooling, traction, take-up and other links. The equipment is composed of optical fiber pay-off stand, reinforcement pay-off device, extruder, cooling tank, tractor, take-up machine and related control system. Detailed Photos
3.Multi-core flexible cable production line
Production process and equipment composition: Multi-fiber cable equipment is mainly used for the production of flexible cable containing multiple fiber cores in the same cable. Its production process generally includes multiple optical fiber pay-off, reinforcement pay-off, cable formation, extrusion, cooling, traction, take-up and other links. The equipment is composed of several groups of optical fiber pay-off stand, reinforcement pay-off device, cable forming machine, extruder, cooling water tank, tractor, take-up machine and related control system.
4.FTTH type leather cable optical cable production line
The FTTH type fiber optic cable production line has the characteristics of high efficiency, high degree of automation, and accurate production precision. It can meet the needs of large-scale production and ensure stable quality of optical cables.
Main Export Countries & Areas:
USA, UK, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina, Pakistan, India, Portugal, Canada, New Zealand, South Africa, UAE, Egypt, Norway, Netherland, Russia, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union or L/C
Delivery time: 7-10 days.
Quality Warranty: Shanghai Z-printing offers quality warranty for our lasers products with "3R" policy. For any inferior-quality products, Z-printing company is responsible for return, replacement and refund.
For specific installation and operation, please refer to the product manual or contact customer service for operation tips or videos after receiving the product. The equipment is guaranteed for one year, and artificial or abnormal damage is not covered by the warranty. If it exceeds one year, a certain fee will be charged for the relevant after-sales service. This device will continue to be optimized and improved due to various factors. At that time, please pardon us not notify separately. Thank you for your support and understanding.
