Diameter 500mm CNC Internal Machine Tool for Inner Bore Tapper Hole Stepped Hole

Product Description

Product Description
Main purposes of the machine tool:

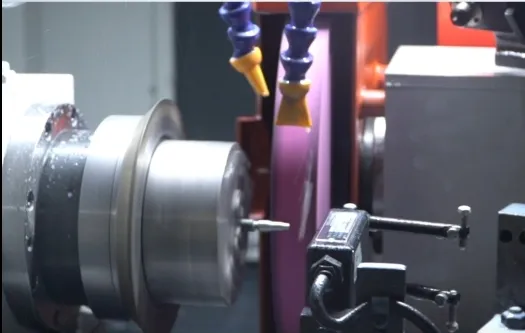

MK250is a two-axis (X-axis, Z-axis) CNC internal grinder, primarily used for grinding step holes, internal taper holes, and both internal and external end faces of workpieces. It features automatic feed, retract, rough grinding, and fine grinding; automatic wheel correction, automatic compensation, and other functions.
Processing object:
The main processing objects of this machine tool are: This machine tool can grind inner holes, step surfaces, inner end faces, and outer end faces, and is suitable for inner hole processing of parts with diameters ranging from 100-500mm and inner holes up to 500mm.
Product Parameters
Key Technical Parameters for MK250 CNC Grinding Machine:

Serial number	Name	Specification
1	Grinding hole diameter range	100-500mm
2	Maximum grinding depth	500mm
3	Maximum diameter of the workpiece inside the cover	180mm
4	Maximum diameter of the workpiece outside the cover	720mm
7	Inner hole roundness	2μm
8	Inner hole cylindricity	2μm
9	Inner hole surface roundness	Ra0.4

Detailed Photos
Company Profile
Our company offers variety of products in grinding machine which can meet your multifarious demands. Our main products are: CNC high-precision centreless grinding machine; CNC internal and external grinding machine; CNC vertical internal, cylindrical, end face grinding machine; CNC crankshaft grinding machine; CNC crankshaft milling machine; CNC camshaft grinding machine; CNC camshaft milling machine; Multi-function CNC surface grinding machine; Vertical machining center; Vertical gantry type machining Center and so on.At present, these products are mainly used in domestic high-end manufacturing fields such as national defense, research institutes, aerospace, shipbuilding, automobile, mining machinery manufacturing and so on. Users are all over China, and some products are exported to Southeast Asia, Europe and other countries. At present, these products occupy a considerable share in the same industry in China. Some varieties have reached the level of similar foreign products. The product cost performance has obvious competitive advantages at home and abroad.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
