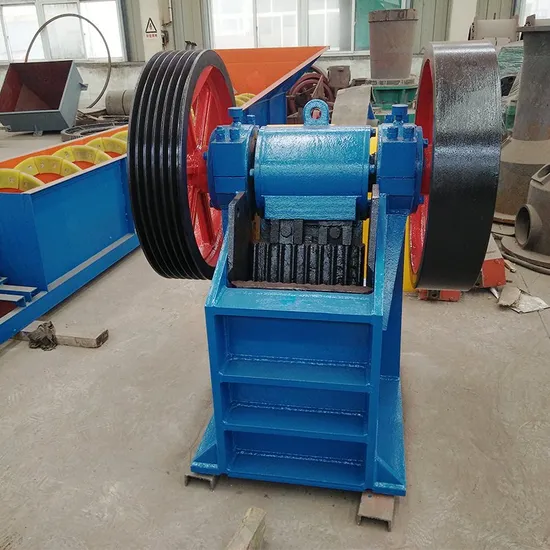

PE Series Jaw Crusher Equipment for Crushing Ores

Product Description

PE series jaw crusher equipment for crushing ores
General introduction of jaw crusher:
Jaw crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as ore quartz, granite, limestone, slags, construction materials, marble and so on. The maximum compression strength of materials to be crushed is 320MPA.PE series is used for primary crushing; PEX series is used for secondary crushing and fine crushing.
Working principle:
The machine's leather belt and wheel are driven by the electric motor, then movable jaw begins to move up and down by the eccentric shaft, when the movable jaw moves from top to bottom, the angle between fixed jaw and movable jaw becomes smaller, the movable jaw plate deviates from the fixed jaw plate under the function of dragging rod and spring, at this moment the crushed materials are discharged from the bottom outlet of the crushing cavity.
Technical parameters of jaw crusher:

Model	Max feed size (mm)	Adjustment range(mm)	capacity (m2/h)	power (kw)	Weight (kg)
150×250	125	10-40	1-3	5.5-7.5	700
200×300	165	20-70	2-8	7.5	800
250×400	210	20-80	5-20	15-18.5	3000
400×600	340	40-90	10-40	30	7200
350×750	290	30-55	20-50	37	8900
500×750	425	50-100	34-68	55	11320
600×900	480	75-200	40-120	75	17600
750×1060	630	80-200	80-160	90	30530
900×1200	750	100-200	110-200	110	50000
1000×1200	850	195-265	315-500	110	55000
1200X1500	1020	150-350	400-800	160-220	100900
PEX150X750	125	8-35	5-15	15	3600
PEX250×1000	210	15-55	15-40	37	7350
PEX250×1200	210	15-60	20-50	37	8700
PEX300×1300	250	20-90	16-65	55	11600

FAQ:
Q: Are you a manufacture?
A: Yes, we are manufacture; our factory was established in 1981.
We focus on providing expert service including design, manufacture, installation & maintenance for the logistic industries & mining equipments.
Q: Terms of Payment:
A: 30% of the total amount by TT as deposit, the balance to be paid by TT before the machines leaving seller' factory.
Or 100% irrevocable L/C at sight.
Q: Guarantee period:
A: The guarantee period for the above machines is twelve months from the date of putting into use, It is not applicable for quick wear parts. After-Sales Service:
1.We guarantee that the goods are made of the best materials and of first class workmanship,brand new,and comply in all respects with the quality and specifications and performance as stipulated in this Contract.
2.We guarantee that the goods,when correctly mounted and properly operated and maintained,shall give satisfactory performance for a period of 12 months after acceptance protocol's signature.
3.The warranty foresees the supply,free of charge,of the parts of the machine that get broken due to manufacturing defects
