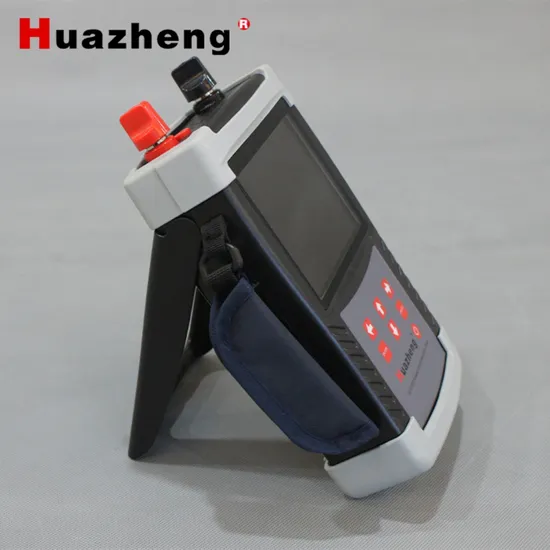

Hz-5100s Portable Circuit Breaker Loop Resistance Measurement Instrument 100A Handheld Contact Resistance Tester

Product Description

Hz-5100s Portable Circuit Breaker Loop Resistance Measurement Instrument 100A Handheld Contact Resistance Tester
I.Introduction The hand-held Circuit resistance tester is an innovative product. The product is compact, hand-held operation, battery power supply, easy to carry.
The product is mainly used in the measurement of contact resistance and other micro-Euclidean resistance of switch contacts. The test speed is fast and the accuracy is high.
II.technical data

Measuring Range
Output Current	100A,80A,50A,30A
Measuring Range	100A 0~2000µΩ
	80A 0~5mΩ
	50A 0~10mΩ
	30A 0~20mΩ
Technical Index
Accuracy	±(Reading×0.5%+1µΩ)
Resolution Ratio	0.1µΩ
Display Digit	Four and a half
Test Power Supply	Constant current limit voltage,about 2V
Input Voltage	Maximum 5V
Measuring Time	Quick,10~60 seconds optional
Testing Times	More than 600 times(full charge, fast measurement mode)
Test Line	Resistance less than 10mΩ
Conditions Of Use and Shape
working Power Supply	Built-in lithium battery or external charger,Charger input 100~240VAC,50HZ/60HZ
Charging Voltage	12.6V	Charging Current	≤3A
Charging Time	Abour 3 hrs	Auto Shut Off	5 minutes automatic shutdown without operation
Instrument Weight	1.7kg(exclude test lines)	Instrument Dimension	246mm(L)×156mm(W)×62mm(H)
Environment Temperature	-10ºC~50ºC	Relative Humidity	≤90%,no dew

III.Detailed Photos
Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
