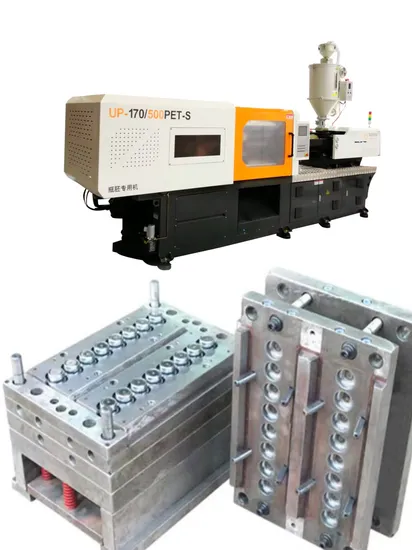

Pet Preform for Water Injection Molding Machine Pet Preform Making Machine

Product Description

Features of PET prefrom injection molding machine:1. PET special screw is used to significantly increase the sol speed and injection volume, reduce the plasticizing temperature and AA value, effectively improve the shrinkage of the bottle embryo, and enhance the transparency;Pet Prefrom Injection Molding Machine2. The variable pump control system is 25%~45% higher than the conventional machine node; The servo control system saves 30% - 50% electricity than conventional machines;3. The injection molding machine has complete specifications and is suitable for the selection of various bottle embryos. At present, the maximum injection volume; 5000g; Increase the ejection force and ejection stroke to meet the ejection requirements of the bottle embryo;Pet Prefrom Injection Molding Machine4. The locking part is fully closed sheet metal structure, which meets the requirements of sanitation and temperature control;Pet Prefrom Injection Molding Machine5. With mold needle valve control interface;Pet Prefrom Injection Molding Machine6. The synchronous pressure maintaining system can increase the production capacity by 15%~25%;7. It can provide a complete set of PET bottle embryo process and equipment, including injection molding machine, bottle blowing machine, mold and other related equipment.

Technical Parameters	Model UP-170T
Injection Unit	A	B	C
Screw diameter (mm)	42	45	50
Shot Volume (cm3)	311	358	442
Injection weight (g)	373	429	506
injection pressure (Mpa)	174	152	123
Screw speed (rmp)	199
Clamping Unit
Clamping force (KN)	1700
Open stroke (mm)	440
Max Mold height (mm)	500
Min Mold height (mm)	180
Space between tie bars(mm)	470*470
Ejector force (KN)	46
Ejector stroke (mm)	140
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	15(18.2)
Heating power (KW)	9.3
Machine dimension (M)	4.8*1.4*1.9
Machine weight (T)	5
Oiltank cubage (L)	240

FAQ
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection molding machine?
yes,we have established a highly strict quality control department to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate
