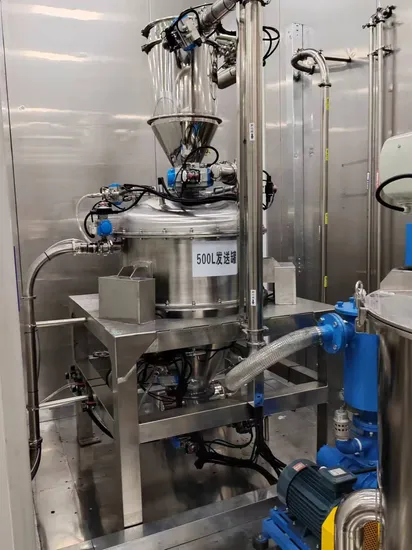

Lithium Battery Production Slurry Metering and Mixing Solutions
| US$100,000.00-10,000,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KR-ZXAUTO
Application
Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical
Certification
CE, ISO
Condition
New
Cooling Method
Water Cooling
Heating Method
Hot Water Heating
Main Material
Stainless Steel
Mixing Drum Shape
Circular Groove
Stirring Type
Spiral
Warranty
1 year
Working
Convection Mixer
Adaptive Process
Vacuum Conveying, Positive Pressure Conveying
Capacity
Positive 300L , Negtive 300L
Whole Line Power
Posive 240kw, Negtive 120kw
Power Supply
50Hz AC 380V Three-Phase Five Wire System
Grounding Resistance
Less Than 4 Ohm
Compressed Air
0.4-0.7MPa 15 M3/Min
Vacuum
Less Than -98kpa Flow Rate Greater Than 15m3/H
Cold Water
Less Than 0.3MPa, Pipe DN50
Usage Area
Indoor
Processing Material Samples
Iron Lithium,Graphite, Conductive Agent,
Usage
Convey Various Material to The Mixer
Powder Density
Less Than 2.5 Moisture Content Less Than 1000ppm
Material Type
PVDF,Cnt, Cme,Diw, Sp,NMP
Container Cleaning
Nitrogen Pulse Pressure Cleaning
Feeding Method
Manual Weighing Vacuum Conveying
Transport Package
Wood Pallet
Trademark
Career
Origin
China
Production Capacity
15000/Year
Product Description
Product Description| Equipment Name | Slurry automation system |
| Applicable process | Vacuum conveying, positive pressure conveying |
| Capacity | Equip equipment according to customer requirements |
| Machine power | According to the equipped equipment |
| Pilot run | Water or actual material |
| Processing material samples | Lithium iron, ternary, PVDF, SP, CMC, graphite, conductive agent |
| Usage | Transport various materials to the mixer |
| Processing powder density | ≤2.5 water content <1000ppm |
| Equipment equipped | Positive and negative electrode main powder feeding system |
| Positive and negative electrode feeding system | |
| Positive and negative electrode filling system | |
| Positive and negative electrode slurry conveying system | |
| Integrated system | |
| Vacuum system | |
| Main equipment details | High viscosity mixer |
| Main powder and auxiliary powder sending tank | |
| Small bag dust-free feeding station | |
| Glue making tank | |
| Glue storage tank | |
| Transfer tank | |
| Measuring tank | |
| Control system | |
| Sand mill | |
| Electrical instruments | Power wiring |
| Sensor | |
| Testing instruments |
Company Profile
Our KR Company was founded in 2006 and its headquarters located in Dongguan, Guangdong Province, China. It is a national High-tech enterprise that integrates the research and development, production, sales, and service of intelligent devices. We takes mixing, drying, grinding, dispersion, and intelligent conveying systems as its core technology. Its products cover intelligent power mixers, vacuum dryers (systems), sand mills, high-speed dispersers, automated homogenization conveying systems (powder conveying, liquid conveying, slurry conveying), MES systems, and logistics conveying systems in the field of lithium-ion soft engineering. We can provide customers with a one-stop solution for material processing automation, including unpacking and feeding, material storage, pneumatic conveying, precise batching, continuous metering, mixing and drying, mixing and pulping, dispersion and grinding, filtration and dust removal, finished product packaging, intelligent control, etc. The product is widely used in the fields of new energy, chemicals, fine chemicals, daily chemical products, food, medicine, ceramics, coatings, adhesives, etc., and can meet the personalized customization needs of different customers for various equipment.
