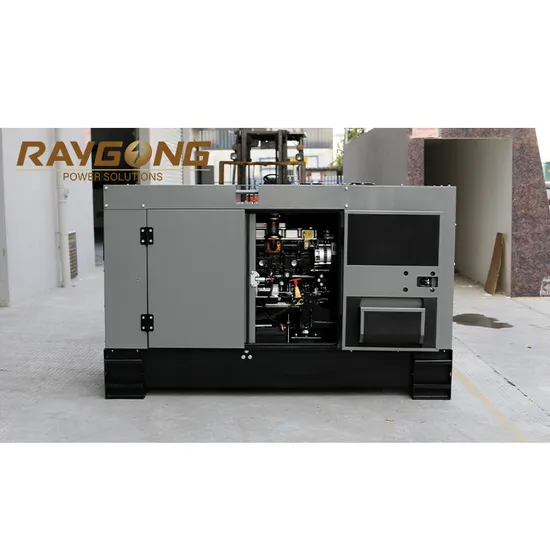

500kVA 550kVA 600kVA 700kVA 750kVA 800kVA 850kVA Silent Diesel Standby Power Generator Set

Product Description

Your Attention Please:1.The generator price mainly depend on the power capacity ,engine,alternator and controller brand Different solution the cost will be different ,can not refer to the link price.please"SEND INQUIRY "to our sales with your power demand to get the exactly price.2.Due to the time difference, your message may unable to be answer ontime at our night time, freely leave your contact information and your power demand ,our sale's will contact with you right away once we are online .
Product Description

Generator Set	Rated Voltage	110V,220V,230V,400V,415V
	Rated Frequency	50/60HZ
	Type	Open/Silent/Soundproof/Container
Diesel Engine	Engine Brand	Cumins/Fawde/ Yuchai/ Weichai/ Chinese Richardo/ KOFO/ Weifang
	Fuel Consumption	≤256
Alternator	Type	Brushless
	Phase	Single/Three
Controller Type	Type	Auto Controller
	Brand	Deepsea/Comap/Smartgen/Raygong
Cooling System	Water-cooled
Application	School, Port,Hotel,Building,hospital.,etc.
Delivery	By Sea/Train
Warranty	One Year or 1000 hours

PERFORMANCE DATA CUMINS 400V, 50HZ, 1500RPM
Model	Prime Power	Standby Power	50HZ		Engine
	KW/KVA	KWIKVA	Voltage (V)	Ampere (A)	Cumins	Governing controller	Engine power (KW/KVA)
RGC-20	20/25	22/27.5	400	36	4B3.9-G2	Electrical	24/27
RGC-30	30/37.5	33/42	400	54	4BT3.9-G2	Electrical	36/40
RGC-45	45/56	50/63	400	81	4BTA3.9-G2	Electrical	50/55
RGC-68	68/85	75/94	400	122	6BT5.9-G2	Electrical	92/100
RGC-80	80/100	88/110	400	144	6BT5.9-G2	Electrical	92/100
RGC-91	91/114	100/125	400	164	6BTA5.9-G2	Electrical	110/120
RGC-104	104/130	114/142	400	187	6BTAA5.9-G2	Electrical	120/132
RGC-140	140/175	154/193	400	252	6CTA8.3-G2	Electrical	163/180
RGC-160	160/200	176/220	400	288	6CTAA8.3-G2	Electrical	183/203
RGC-200	200/250	275/344	400	360	6LTAA8.9-G2	Electrical	220/240
RGC-250	250/313	275/344	400	450	MTAA11-G3	Electrical	282/310
RGC-300	300/375	330/412	400	540	NTAA855-G7	Electrical	343/377

WIRING ·Well-arranged wire connection.
·Each line has an independent serial number. when you need to do the maintenance, just follow our wiring diagram.
·Wiring Use anti-flaming and heat-resistant silicon rubber wires for safeoperation.
100% TESTING V Parts faults testingV Fuel tank pressure testing
V Bolt tightening torque testing
V Temperature testingV Loading Testing (0%,25%,50%,75%,100% loading)V Check verify the fuctions of control systems and protection system
OPTIONAL ENGINE BRAND
OPTIONAL ALTERNATOR BRAND
OPTIONAL CONTROLLER BRAND
Monitor&control all key parameters.Such as under/over speed;high engine temperature;low oil pressure;low diesel monitor;over current;under/over generator volts;under/over generator frequency; under/over mains frequency;under/over mains voltage;low/high battery volts.
User-friendly operating interface.
Easy operation for start&stop.
Genset protection,safety warning and shut-down levels.
Easy operation compact design.
One-click starting,easy operation.
OPTIONAL UNIT APPEARANCE COLOR
Frequetly Asked Question About Your Generators CONTACT US NOW !!!
>>APPLICATION PLACE<<
Company Profile
Keep everything powered with quality export generators from RAYGONG.
Every generator we sell is factory tested before it leaves our factory.
When you purchase an import generator from RAYGONG, you receive:
* Fully customizable options adaptable to your country or region.
* Lifelong after-sales support for service, parts and accessories.
* Rapid availability, with the shortest lead times in the industry.SUCCESS CASES
>>SUCCESS CASES <<
Q1.What services can we provide?Accepted Delivery Terms:FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU;Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,CNY;Accepted Payment Type:T/T,L/C,D/P,D/A,Money Gram,Credit Card,Paypay,Western Union,Cash,Escrow; Q2.Why should you buy from us ?We engaged diesel generator set since 2003,with two branch plants ,as a well-know brand in our market , your order will be safety, delivery will be on time ,service will be considerate, we treasure all the customers and take quality is the root ,you will be more happy to work with us and factory direct sale will help you to get more profit from your business. Q3.How about your quality warranty?All the products will have one year or 1000 hours guarantee. Q4.Can i do my own brand on the product ?Sure ,we are a factory with over 15 years OEM experience . Q5.What about the delivery time ?Less than 150 sets ,the delivery time is about 30 working days .
