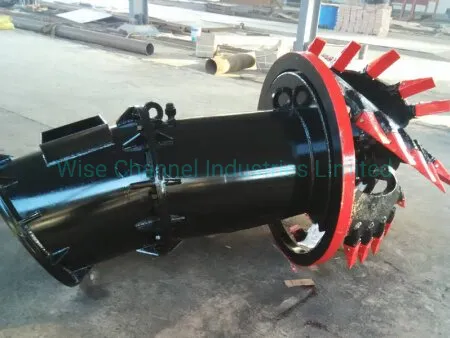

Bd-1300 Dredging Cutter Head for Cutter Suction Dredger with Pump Station
| US$15,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BD-1300
Certification
ISO9001: 2000
Condition
New
Cutter Diameter
1300mm
Suction Port Material
Cast Iron
Rated Pressure
16MPa
Rated Rotate Speed
0-30r/Min
Power
75kw
Cutter Tooth
45PCS
Cutter Tooth Material
High-Mn Steel
Blade Quantity
5PCS
Blade Material
Cast Steel
Transport Package
N/a
Trademark
BAODI
Origin
Jiangsu China
HS Code
8429529000
Production Capacity
800sets Per Year
Product Description
BD1300 Cutter Head
Model:BD1300
Cutter Diameter: 1300mm
Suction port Diameter: 478mm/450mm
Suction port material: Cast iron
Rated pressure:16Mpa
Rated rotate speed: 0-30r/min
Power:75KW
Cutter tooth: 45pcs
Cutter tooth material: high-Mn steel
Blade quantity: 5pcs
Blade material: Cast steel
Case Dimensions:3000*3000*1600mm
YY-75 Hydraulic power station with 2 types of rotate speed
Rate power: 75KW-80KW
Case dimensions: 2000*1200*1000mm
Q1. Are you a manufacturer?
Yes, we have manufactured petroleum equipment for over 30 years. They are widely used in worldwide oilfields.
Q2. Do your equipment come with a warranty?
Yes, we have one year warranty.
Q3. Can we customize the equipment from you?
Yes, actually 60% of our products are customized for our clients. You just need to let us know your demand (specifications &drawing is better), and we shall realize them for you.
Q4. How do you deliver your equipment?
By sea or by air.
Q5. What's the lead time for the equipment and its spare parts?
Generally 30-45 days for manufacturing of complete set of equipment. Depending on the quantity, the lead time for spare parts is between 15-20 days.
