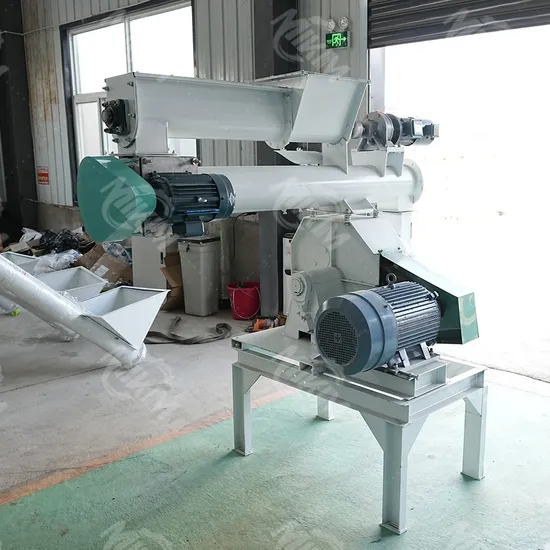

Feed Processing Machines/Full Automatic Cheap Price Mini Feed Pellet Machine

Product Description

Brand New Sheep Animal Feed Pellet Machine Ring Die Pellet Mill Product Description
Feed processing machine use: used to make cattle, geese, pigs, ducks, chickens, sheep, rabbits and other animals, livestock and poultry feed. Features:1.Frequency conversion motor regulates the feeding rate. Feed screw with variable helical structure, controlling precisely. 2.Conditioner body with large opening-door structure is easy for checking and maintenance; 3.The conditioner is set with spraying nozzles, they will add proper water to make the raw materials to achieve the best effect. 4.Setting a discharging handle or a pneumatic discharging on the outboard, makes it easy for the operation of automatic control. 5.Fit with a ring dies lifting device, which is easy to disassemble ring dies and reduce labor intensity. 6.Larger mills adopt the magnetic filtering to remove more impurities. 7.The cooling and the oil cutting alarm are in one oil cooling lubrication system, forcibly lubricating the main bearing. 8.Different materials are different ring dies running speeds, which will improve the effect of pellets.
Product Parameters

Model	Capacity (t/h)	Motor Power(kw)	Conditioner power(kw)	Feeder power (kw)	Ring die diameter(mm)	Pellet size (mm)
MK320	2-5	37	2.2	0.75	320	2-15
MK350	3-7	55	3	1.1	350	2-18
MK420	4-12	110	5.5	1.5	420	2-18
MK508	5-15	132/160	7.5	1.5	508	2-18
MK558	8-20	160/180	11	2.2	558	2-18

Our Advantages

Performance Features of Feed Pellet Making Machine
1	Transmission gears made of High quality alloy steel,surface adopts carburizing and quenching treatment,precision machining by grinding,smooth transmission,low noise,large carrying capacity, low temperature rise,long life etc.
2	Spindle with a heavy thrust bearing, support axial force, long life span.
3	Roller and flat die wear peace deal,both side can use the flat die ,long service life.
4	Use large diameter roller,big yield,pelletizing rate is high,uniform high strength pellets.
5	All bearings are sealed structure that effectively prevent dust,improve the working bearings, environment, extending bearing lift.
6	Highest grade tool steel die and rollers that are designed to fit YOUR PRODUCT.
7	Full consultation at NO Charge at YOUR FACILITY.
8	Low wear of roller,dies and bearings.
9	Do not need to add binder.
10	Pellet diameter from 6-12mm for user select.
11	Easier to clean than pellet machine with ring die.
12	Small and lightweight, available for homemade or farm pellet production.
13	If you need support on selection of Pellet Machine,contact us.

Product Application
1.Used for making animal feed pellets 2.Used for making wood pellets as fuel
3.Raw material size need 3-5mm ; Humidity :10-12%

Detailed Photos

Company Profile
Packaging & Shipping
FAQ
Question 1 : Is the pellet machine dry in and out?Answer: What we usually call dry-in and dry-out means that the raw materials can be processed directly. This is amisunderstanding. It is not a real dry-in and dry-out, because the raw materials used contain a certain percentage of moisture, as long as the overall humidity is 10 Between %-15%, there is no need to add water, and it can be done directly. If the raw materials are very dry, you can spray a little water, a small amount, about 3%-5%, so that it can be formed well and will not affect storage.Question 2 : Does the pellet machine have any requirements for raw materials?Answer: Grain materials do not need to be crushed, but forage and straw must be crushed before they can be processed. It is best to use powder materials because the particles made from powder materials are evenly nutritious.Question 3 : Can we not use your motors and equip them locally?Answer: Of course, it is convenient for maintenance in the future, and can save freight! But our price is not the price of themotor! Our motors are 100% national standard copper core from regular manufacturers, the price is more expensive, and the quality Completely rest assured!
