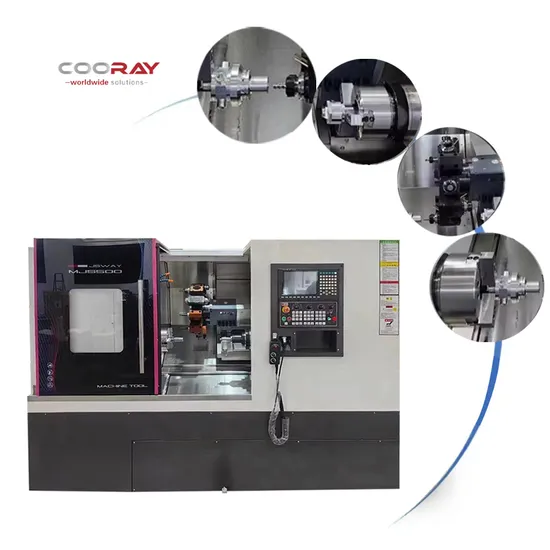

Cooray Crl200msye Power Turret Slant Bed Twin Spindle Y Axis Turret Syntec CNC Turning Milling Compound Machining Center Lathe
| US$50,000.00-90,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CRL200MSYE
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
Economical CNC Machine Tools
Condition
New
Country of Origin
Guangdong, China
Type
Milling, Other Machining Methods
Whether to Micro-Process
Not Micromachined
Brand
Core
Applicable Industries
Machine Repair Shops, Manufacturing Plants, Energy
Transport Package
The Two Sides Negotiate Logistics.
Specification
2700mm*1800mm*1915mm
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
270.00cm * 180.00cm * 191.50cm
Package Gross Weight
5500.000kg
Product Description
Product DescriptionMachine tool specification (standard main unit specification) | ||
| Processing scope and capacity | Maximum turning diameter | 700mm |
| maximum machining diameter | 340mm | |
| Maximum processing length | 520mm | |
| travel stroke | X-axis travel | 215mm (Radius) |
| Y-axis travel | 100mm(±50mm) | |
| Z-axis travel | 570 mm | |
| W-axis travel | 600 mm | |
| main spindle | Output power (continuous / 40%ED) | 18KW(105N.m) |
| End form | A2-6 | |
| maximum speed★ 1 | 4000rpm | |
| chuck | 8 inches hollow | |
| through hole diameter | 51mm (optional 66MM) | |
| sub spindle | Output power (continuous / 40%ED) | 11 KW (60N.m) |
| End form | A2-5 | |
| maximum speed★ 1 | 5000rpm | |
| chuck | 6 inches hollow | |
| through hole | solid | |
| moving speed | 25m/min | |
| direct connection motor | Electric spindle | |
| turret | Tool capacity | 12 tools |
| Tool body size | 25*25mm | |
| Maximum boring tool diameter | φ40mm | |
| BMT65 wide body; optional 15 BMT55 | ||
Milling spindle | Maximum speed of milling spindle | 6000rpm |
| Output power (continuous / 25%ED) | 5.0Kw servo motor | |
| Maximum vertical milling cutter diameter | φ20mm | |
| Maximum diameter of cutting tool | φ20mm | |
| Maximum diameter of the taping | M20*2.5 | |
feed | X-axis fast forward speed | 25000mm/min |
| Y-axis fast forward speed | 10000mm/min | |
| Z-axis fast forward speed | 25000mm/min | |
| C-axis fast forward speed | 500rpm | |
| X/Z1/Z2/Y motor power | 2.4KW | |
| Machine tool size (excluding chip conveyor, control panel, etc.) | 2700mm(L)×1800mm(W)×1915 mm(H) | |
| Total weight of machine tool | 5500Kg | |
| ambient temperature | 5~40ºC | |
| Relative humidity of the environment | ≤75% | |
