Recycled Plastic Granulator with Single Screw Extruder

Product Description

Product Description
Greenlandplast Plastic Recycling Granulating Machine Recycled Plastic Granules Making Machine Recycled Plastic Granulator This plastic pelletizing machine is designed by Zhangjiagang Greenlandplast Machinery Co., Ltd for the recycling and granulating/pelletizing of clean and dry waste plastic. It is equipped with different feeding methods and cutting methods, and can also be used for pelletizing film scraps materials when a forced feeding system is installed.
The machine is suitable for recycling and pelletizing various types and properties of materials, including PE, PP, ABS, PS, PC, PA, PVC, and other materials. It effectively processes crushed granules and plastic flakes.
The extrusion system of the machine features a specially designed screw for pelletizing recycled materials, ensuring fast and stable feeding and wear resistance. It also has natural exhaust holes and a vacuum system to effectively drain water from the material. The extruder is equipped with a durable cast aluminum or ceramic heater. Additionally, an automatic hydraulic screen changing system is included to produce cleaner and higher quality particles.
Features
Recycles and granulates clean and dry waste plastic
Can be used for pelletizing film scraps materials with forced feeding system
Suitable for various types and properties of materials
Fast and stable feeding with specially designed screw
Wear resistance
Natural exhaust holes and vacuum system for effective water drainage
Durable cast aluminum or ceramic heater
Automatic hydraulic screen changing system for cleaner and higher quality particle
Available Materials: PE, PP, PS, ABS, PC, etc.
Product Parameters
Technical date

Model	Screw Diameter(mm)	L/D	Motor Power	Capacity
GLP100	100	25-33:1	55kw	150-200kgh
GLP120	120	25-33:1	90/kw	250-350kgh
GLP140	140	25-33:1	132kw	400-500kgh
GLP160	160	25-33:1	160kw	550-650kgh
GLP180	180	25-33:1	185kw	650-800kgh
GLP200	200	25-33:1	250kw	800-1000kgh

Detailed Photos
Loading System The material is fed to the extrusion system of the Zhangjiagang Greenlandplast Machinery Co., Ltd through either a screw feeder or a belt conveyor. For added convenience, the belt conveyor can be equipped with an optional metal detector, ensuring the highest level of quality control.
Quantitative Feeding System
The feeding speed is controlled by an inverter, allowing it to adapt to different material properties and ensuring the extruder operates smoothly.
Equipped with a sensor device, the feeding system intelligently and automatically feeds materials. It synchronizes with the loading system, stopping feeding when the material is full and automatically loading when it's not.
For more information, please visit Zhangjiagang Greenlandplast Machinery Co., Ltd.
Extrusion System - Product Description
Extrusion System The extrusion system by Zhangjiagang Greenlandplast Machinery Co., Ltd is specifically designed for plastic recycling pelletizing. The screw barrel is made of 38CrMoAl material with nitrided treatment, ensuring durability and longevity. The surface of the screw is sprayed with an alloy wear-resistant layer, further enhancing its performance.
Equipped with an exhaust section and vacuum exhaust, this extruder offers high output, excellent dehydration, and superior exhaust effect. It also boasts exceptional wear resistance, making it a reliable choice for plastic recycling.
The heating system of this extrusion system features either a cast aluminum heater or a ceramic heater. Each heating zone has an independent intelligent temperature control system, allowing for convenient and accurate temperature control. Additionally, forced air cooling is provided, ensuring optimal temperature regulation and ultimately improving the quality of the pellets produced.

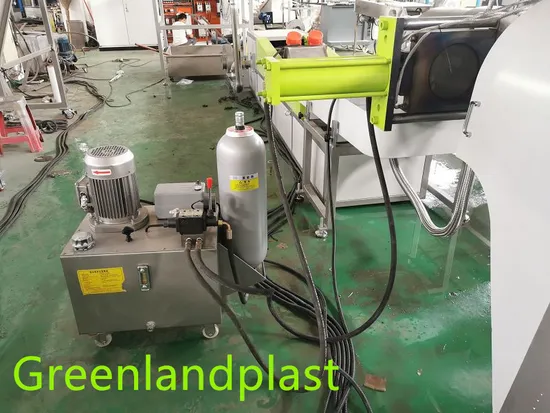

Screen Change Filter System The screen change filter system by Zhangjiagang Greenlandplast Machinery Co., Ltd is designed to enhance the quality of pellets by filtering out small impurities in the material. It features a plate-type hydraulic automatic screen changer that effectively removes impurities and improves the overall quality of the pellets. The system is equipped with an automatic pressure alarm device, ensuring efficient and reliable operation.
For customers with specific requirements, we also offer the option of equipping the system with a column hydraulic screen changer or a non-net screen changer. These additional features further enhance the filtering effect and make the operation even more convenient.
Pelletizer Cutting System - Greenlandplast Machinery
Pelletizer Cutting System Greenlandplast Machinery offers a cutting-edge waste plastic recycling pelletizing/granulator with a highly efficient water ring pelletizing system. This system ensures a smooth and beautiful pelletizing effect, making it easy to operate and saving labor.
For materials with special properties or based on customer preferences, we also provide additional options for pelletizing systems:
Water-stretching and pelletizing
Automatic strand-stretching and pelletizing
Underwater pelletizing
These options allow for greater versatility and customization, ensuring the perfect pelletizing solution for your specific needs.
Choose Greenlandplast Machinery for reliable and innovative waste plastic recycling solutions.
Reference: Zhangjiagang Greenlandplast Machinery Co., Ltd

Vibration Dewatering System
Vibration Dewatering System The Vibration Dewatering System by Zhangjiagang Greenlandplast Machinery Co., Ltd is a revolutionary method for efficient dewatering and drying of particles. With its unique dewatering fan, this system saves power consumption and operates with low noise, making it ideal for various applications.
Key Features:
Efficient Dewatering: The Vibration Dewatering System ensures excellent particle dewatering, resulting in a high-quality end product.
Power Saving: By utilizing advanced technology, this system reduces power consumption, leading to cost savings and environmental benefits.
Low Noise Operation: The dewatering process is carried out with minimal noise, creating a comfortable working environment.
Effective Drying: In addition to dewatering, this system also provides efficient drying of particles, enhancing productivity.
Experience the benefits of the Vibration Dewatering System by Zhangjiagang Greenlandplast Machinery Co., Ltd. Improve your dewatering and drying processes with this innovative solution.

Air Conveyor & Hopper Storage The Air Conveyor & Hopper Storage system, manufactured by Zhangjiagang Greenlandplast Machinery Co., Ltd, is designed to efficiently transfer pellets to the storage tank. Made of high-quality stainless steel, both the air conveyor pipe and the tank ensure durability and longevity. The surface of the pipe is equipped with sound-absorbing cotton, effectively reducing noise levels during operation.
