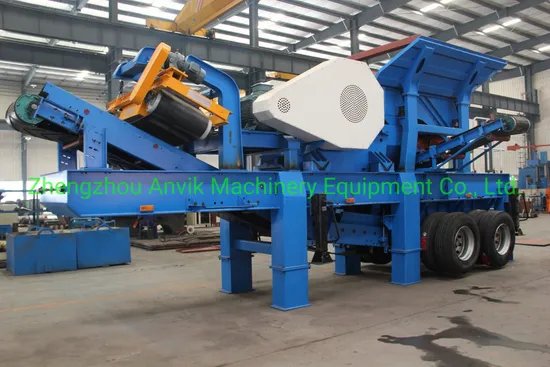

Mobile Gravel Crusher for Crushing Granite/Riverstone/Basalt

Mobile Gravel Crusher for Crushing Granite/Riverstone/Basalt

US$100,000.00-300,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
AM938J69
Drive
Electric
Crushing Style
Impact
Compressive Strength (For Crushing)
>300MPA
Crushing Degree
Intermediate Crusher
Finished Surface
Outer Surface Process
Certification
CE, ISO
Condition
New
Color
Blue
Transport Package
Nude Packing
Specification
AM938J69
Trademark
ANVIK
Origin
Henan
HS Code
8474209000
Production Capacity
100sets/Year

Product Description

Application
Mobile crushing plant is widely applied in metallurgy, chemical, building materials, hydropower industries where the working sites need moving from one place to another, especially in dealing with aggregates for highway, railway, and hydropower project. Customers can choose different configurations according to their specific requirements.
Advantages
1. Easy transportation, lower cost and wide application;
2. Short assembly time, flexible combination, and convenient installation;
3. Compact structure design and excellent crushing performance;
4. Space-saving and lower operation cost.
Technical Specification
Model Vibrating feeder Jaw crusher Belt conveyor Chassis frame Capacity (t/h) Overall dimensions (l*w*h)(mm)
AM724J46 GZT0724 PE400×600 B650×8M Bi-axis 15-60 10500×2800×3700
AM938J57 ZSW380X95 PE500×750 B650×8M Bi-axis 40-100 13000×2900×4100
AM938J69 ZSW380X95 PE600×900 B800×8M Bi-axis 60-140 13200×2900×4600
AM1149J710 ZSW490X110 PE750×1060 B1000×8M Tri-axis 90-230 15000×2900×5700
AM1349J912 ZSW490X130 PE900×1200 B1200×8M Four-axis 150-350 17000×3100×5800

Model Vibrating screen Cone crusher Belt conveyor Chassis frame Capacity (t/h) Overall dimensions (l*w*h)(mm)
AM1235Y900 3YA1235 PYB900 B650×7M Bi-axis 50-90 13700×2800×5700
AM2160Y1200 3YA1848 PYB1200 B800×7M Bi-axis 110-200 15200×3500×6450
AM1848S36 3YA1548 PSGB0918 B650×7M Bi-axis 80-120 13700×3150×5700
AM1860S51 3YA2160 PSGB1321 B1000×8M Tri-axis 130-220 15200×3150×6400

Model Vibrating screen Impact crusher Belt conveyor Chassis frame Capacity (t/h) Overall dimensions (l*w*h)(mm)
AM1235F1007 3YA1235 PF1007 B650×7M Bi-axis 15-60 10800×2480×5170
AM1548F1010 3YA1548 PF1010 B650×7M Bi-axis 50-90 12700×2800×5700
AM1848F1210 3YA1848 PF1210 B650×7M Bi-axis 70-130 13500×3150×6000
AM1860F1214 3YA1860 PF1214 B800×8M Bi-axis 90-180 15500×3150×6400
AM2160F1315 3YA2160 PF1315 B1000×8M Tri-axis 120-250 16200×3500×6700
AM2460F1315 3YA2460 PF1320 B1400×8M Four-axis 160-350 16200×3500×6700

Photo at Our Client's Quarry
Photo at Our Factory
