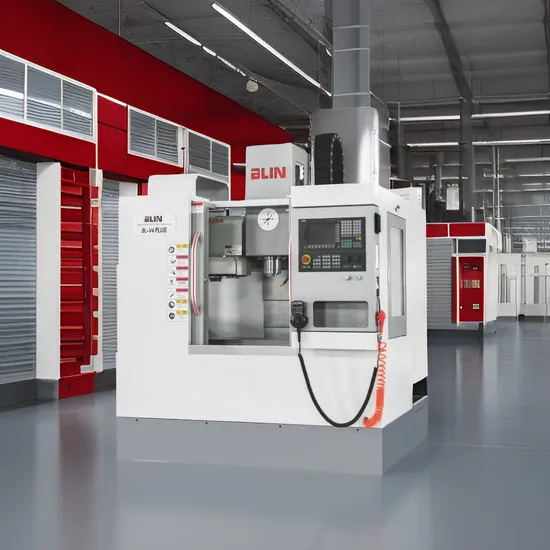

Small CNC Vmc Milling Machine Center (BL-V4)
| US$20,000.00-21,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-V4
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
800*320mm
Table Max. Loading
200kg
T Slot(No./Width/Gap)
3/14/100mm
Distance From Spindle Nose to Table Surf
105-585mm
Distance From Spindle Center to Column S
375mm
X/Y/Z Axes Travel
450/300/480mm
Spindle Type
Bt40
Spindle Motor
3.7(Option:5.5kw)
Spindle Speed
Belt-Drive: 8000/10000rpm
Cutting Feed Speed
12m/Min
Positioning Precision
0.005mm
Repeatable Positioning Precision
0.003mm
Tool Magazine
Umbrella Type 12t/Arm Type 16t
Max. Tool Weight
8kg
Transport Package
Plywood Case/Steel Pallet
Specification
1830*1870*2120
Trademark
BLIN
Origin
China
HS Code
8457101000
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Small CNC VMC Milling Machine Center(BL-V4- 3 axes adopt high precision linear guideway
- Designed by GERMAN engineer
- Whole production process accord to TAIWANESE standard
- Chips outlet set in the back of machine
- Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
- High speed, high precision, long using lifespan
- Adopt HT300 high class cast iron,after aging treatment and FEA analysis
- Bridge shape column, high rigidity, high stability
- 3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash
and temperature rising, ensure stable positioning and repeatable positioning precision
Details:
| Item | Specification | Unit | BL-V4 PLUS |
| Worktable | Table size | mm | 800×320 |
| Table max. loading | kg | 200 | |
| T slot(NO./width/gap) | mm | 3/14/100 | |
| Travel | X/Y/Z axes | mm | 450/300/480 |
| Spindle | Distance from spindle nose to table surface | mm | 105-585 |
| Distance from spindle center to column surface | mm | 375 | |
| Spindle type | mm | BT40/Φ120 7:24 | |
| Spindle motor | kw | 3.7(option:5.5kw) | |
| Spindle speed | rpm | Belt-drive: 8000/10000 Direct-drive: 10000/12000 | |
| Feeding axes | X,Y,Z axes ball screw O.D./pitch | mm | 32/12 |
| X,Y,Z axes linear guideway width | mm | 30 | |
| X/Y/Z axes motor | Nm | 6/6/11(SIEMENS 808D) | |
| Cutting feed speed | m/min | 12 | |
| X/Y/Z axes rapid moving speed | m/min | 36/36/24 | |
| Positioning precision | mm | ±0.005 | |
| Repeatable positioning precision | mm | ±0.003 | |
| Tool magazine | Tool magazine | / | Umbrella type 12T/Arm type 16T |
| Max. tool weight | kg | 8(Arm type 16T) | |
| Max. tool length | mm | 220(Arm type 16T) | |
| Max. tool dia.(fully loaded) | mm | 78(Arm type 16T) | |
| Max. tool dia.(no adjacent) | mm | 120(Arm type 16T) | |
| Others | Overall dimension(L×W×H) | mm | 1830×1870×2120 |
| Weight | kg | 2400 |
IMain parts list:
| Item | Brand |
| Spindle bearing | JAPAN-NSK |
| Ball screw bearing | TAIWAN-TPI |
| Ball screw | TAIWAN-HIWIN |
| Linear guideway | TAIWAN-HIWIN |
| Spindle unit | TAIWAN-VYU CHEN |
| Tool magazine | TAIWAN-OKADA |
| Booster cylinder | TAIWAN-HAO CHENG |
| Lubrication pump | TAIWAN-BEISUN |
| Power switch | TAIWAN-MEANWELL |
| Pneumatic parts | TAIWAN-AIRTAC |
| Electric parts | FRANCE-SCHNEIDER |
Standard configuration: - SIEMENS 808D ADVANCED CNC controller - 12T Umbrellal type tool magazine Optional configuration: - SIEMENS 828D/FANUC 0I MF/GSK218MC
- 16T Arm type tool magazine
- 4th axes rotary table
- 5th axes
