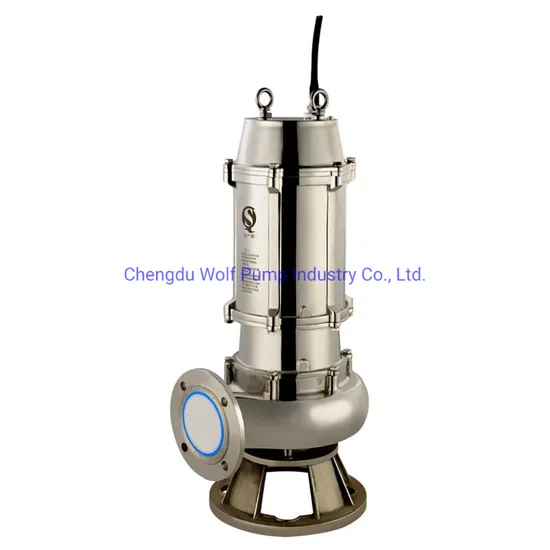

Wq Series Stainless Steel Submersible Sewage Pump

Product Description

WQ series Stainless Steel Submersible Sewage Pump
Introduce
WQ Series Submersible Sewage Pump is new genration pump developed with the advanced technology,with function of energy saving,non-clog,auto-coupling install and auto control.
It is especially suitable for handling sewage containing solid particles and long fiber.This pump consists of pump.Mechanical seals and motor.Pump is at the lower part of Sewage Pump,Motor located at the upper part of the motor pump.
Which is three-phase electric motor.Mechanical seal is between pump and motor,it is a kind of double end mechanical seal,"O" rings are applied in all static joints of the Submersible Pump.
Working Conditions
The pumps can operate properly and continuously under following operation conditions:
1.Working medium carries no corrosives,sand contents shall be max 2%.
2.Medium tem perature shall be 40°C and PH shall be 4-10.
3.The pump shall be operated within the normal delivery range.
4.The pumps shall be fully submerged into. water max. Depth of 5m.The pump shall
be min 0.5m over the water bottom and shall no be inserted into sludge.
5.Power frequency shall be 50HZ,three-phase voltage 380V and voltage
fuctuation shall be 0.9-1.1 times the nominal.
Main Application
This pump series is widely used for sewage treatment of city constrectionand sewage and waste
discharge for architecture projects,hotel,ine pond,ayeing and printing,paper making and textile industries.
lt is the ideal tool for transpor tation of sludge,slurry,living sewage,and feces and stale wastes and solid
grains containing fiber,papercontaining fiber,paper chips,sandy soil etc.
Data Sheet(Please Contact Us For Morel Models)

Model		Outlet(mm)	Flow(m3/h)	Head(m)	Speed(r/min)	Power(kw)
50WQ7-10-0.55		50	7	10	2900	0.55
50WQ10-10-0.75		50	10	10	2900	0.75
50WQ15-10-1.1		50	15	10	2900	1.1
50WQ15-15-1.5		50	15	15	2900	1.5
50WQ9-22-2.2		50	9	22	2900	2.2
65WQ20-15-2.2		65	20	15	2900	2.2
80WQ40-10-2.2		80	40	10	2900	2.2
80WQ45-9-2.2		80	45	9	2900	2.2
50WQ15-30-3		50	15	30	2900	3
80WQ40-13-3		80	40	13	2900	3
100WQ60-9-3		100	60	9	2900	3
65WQ20-25-4		65	20	25	2900	4
100WQ60-10-4		100	60	10	2900	4
50WQ15-40-5.5		50	15	40	2900	5.5
80WQ30-30-5.5		80	30	30	2900	5.5
100WQ65-15-5.5		100	65	15	2900	5.5
150WQ100-7-5.5		150	100	7	2900	5.5
100WQ45-22-7.5		100	45	22	2900	7.5
150WQ100-10-7.5		150	100	10	2900	7.5
100WQ100-25-11		100	100	25	1450	11
150WQ130-15-11		150	130	15	1450	11
200WQ300-7-11		200	300	7	1450	11
100WQ100-30-15		100	100	30	1450	15
150WQ130-20-15		150	130	20	1450	15
200WQ250-11-15		200	250	11	1450	15
100WQ80-30-18.5		100	80	30	1450	18.5
150WQ180-20-18.5		150	180	20	1450	18.5
200WQ250-15-18.5		200	250	15	1450	18.5
100WQ100-45-22		100	100	45	1450	22
150WQ180-25-22		150	180	25	1450	22
200WQ300-15-22		200	300	15	1450	22
150WQ180-30-30		150	180	30	1450	30
200WQ250-22-30		200	250	22	1450	30
250WQ600-9-30		250	600	9	1450	30
150WQ160-45-37		150	160	45	1450	37
150WQ160-45-45		150	160	45	1450	45
250WQ600-15-45		250	600	15	1450	45
200WQ400-30-55		200	400	30	1450	55
250WQ600-25-55		250	600	25	1450	55

True Photo
Factory Introduction Our company CHENGDU WOLF PUMP INDUSTRY Co., Ltd specialized in pumps more than 20 years.
We have more than 20000 square meters modern factory and 100+ professional engineers,workers.
Our business scope have covered all kinds of pumps, like centrifugal pump, submersible pump,
vacuum pump, sewage pump, chemical pump, screw pump, diaphragm pump, fire pump, water supply
equipment and so on. Also welcome custom-made and OEM service. Our pumps are popular in
Southeast Asia, Middle Asia, Africa and Europe.
Every customer mostly care about products quality, our group have passed ISO9001: 2008 quality
control system. Double testing is our quality policy. 12 months warranty time and necessary spare
parts are welcomed by our customers. For international trade, third party inspection is supported.
