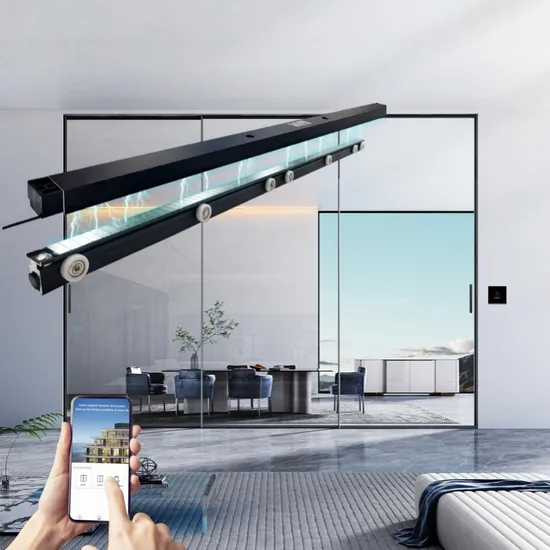

Houses Interior Wooden Electric Sliding Doors Opener Aluminum Magnetic Automatic Door System Operator

Product Description

Product DescriptionWhat is Magnetic LevitationMagnetic levitation (maglev) or magnetic suspension is a method by which an object is suspended with no support other than magnetic fields. Magnetic force is used to counteract the effects of the gravitational force and any other forcesWhat is Linear MotorA linear motor is an electric motor that has had its stator and rotor "unrolled", thus, instead of producing a torque (rotation),it produces a linear force along its length. However, linear motors are not necessarily straight. Characteristically, a linear motor's active section has ends, whereas more conventional motors are arranged as a continuous loop.

	Caelus Maglev automatic door	Traditional automatic door
Principle	Non-contact magnetic drive,between motor and moving rail There is a 1.5-2mm gap between.	Mechanical physical transmission
Mute	1 million Silent test <40dB(A), Cut out the Noise, Enjoy all-dayserenity and comfort	Mechanical transmission noise and long-term wear noise.
Safety	Accurately monitors door movement, High sensitivity, and rebounds when encountering resistance	Torsional drive, Risk of loss of control.
Service life	Reduced Cost of Use,Caelus fewer moving parts and incurs less wear and tear, has a longer life(1 million usage tests)	Easy to wear and high maintenance costs.
installation	Factory pre-adjusted, power-on self-adaptive, ready to use, easy to install	Complex structure,Cumbersome and details installation.
Volume	Slim in Size,Takes up little space and can be integrated into various decoration styles.	It occupies a large space, has a complex structure, and has limited installation in some sites.
Energy saving	40W(About 1 kwh per month),Small mechanical friction, low loss, low power, high energy efficiency	100W,2 times the energy loss
stability	Smoothness-Vector control system, smooth operation without any frustration	The old-fashioned control has poor accuracy and is prone to jamming, and is prone to operating errors after long-term use.

Caelus Automatic Sliding Door System Function
Our advanced magnetic levitation system eliminates the need for traditional rollers, providing an effortless and maintenance-free operation,ensuring that your patio door system operates smoothly and quietly for years to come.Say goodbye to the hassle and cost of maintenance and enjoy the ultimate convenience and luxury of a no-maintenance patio door with Caelus Doors,low energy linear magnetic drive automatic door opener that is activated ,standard intelligent Bluetooth module, support mobileAPP control.
Maglev Automatic Sliding Door Includes
★1 pcs Linear Motor ★pcs Moving Track ★1 pcs Track(Monorail without splicing)★1 pcs power supple ★1 pcs power cable ★1 pcs Junction Block★1 pcs Cable fixed board ★1 pcs stopper ★Black and white manual ★US plugLinear Motor (Drive unit, Control unitand Blue tooth unit included)The Caelus automatic door is built on advanced
linear magnetic drive technology,
main control unit adopts vector control algorithm,
1.5-2mm gap between motor and moving rail,
enabling it to effortlessly glide open and closed with
a fluid and frictionless motion. Mute<=90kg
Moving TrackHigh-end aluminum, performance magnet and high quality roller,perfectly paired,which haspassed 300000 wear-resistant tests to achieve extremesilence and smooth operation. Track(Monorail without splicing)Adopting high-end quality aluminum material, heavy-duty reinforced and thickened engineering outer rail, with high load-bearing grade Junction BlockDigital input/output reserved to meet varies scene.support various intelligent opening methods such as switches,remotes. infrared sensors. radar sensors, passwords/card access control, fingerprint recognition. face recognition. intelligent voice.Bluetooth etc.Safety★ When the power is on, push the door gently by hand for 2-3cm, and the door will open automatically.★ Safety anti-pinch,vector control algorithm, microcomputer control system for precise monitoring, If the door encounters an obstacle, it can safely rebound to the fully open position, and then pass the conflict position at a low speed again. If there is no obstacle, it will operate at the normal door opening and closing speed.
Anti-shear force in place<10NMute&Slim in Size★Unlike traditional automatic doors,there is no other contact point except the pulley and the track, 1 million Silent test <40dB(A) ,and the operation is very quiet.★Installation takes up little space and can be integrated into various decoration styles. Modern Design & Easy OperationFactory pre-adjusted, power-on self-adaptive, ready to use, easy to install.

Model		E40s Full Set
Brand		Caelus Automation
Application scenarios		Home/Commercial/Industrial
Design style		Modern
Operation Weight		<=90KG
Speed		0.2-0.5m/s
Average Power Consumption		40W
Standby power		<5W
Door opening speed		250-450mm/S (adjustable)
Closing speed		250-450mm/S (adjustable)
Manual opening and closing force		<10n
Running noise		≤40Db
Door opening dwell time		0~30s
Motor length		1312mm
Track length		2.1m single tarck single open,For other sizes please contact customer service
Standard features		Mobile phone Bluetooth APP control, support automatic, inching, full open, full closed, lock door (electric lock is optional) and other modes to switch freely;
Expanded functionality		Linked door control program, multiple digital input/output terminals reserved, support various switches, remote controls, infrared sensors, radar sensors, safety beams, password/card access control, fingerprint recognition, face recognition, intelligent voice, remote control and other intelligent opening methods

How many switches can be used to controlSupports various switches, remote controls, sensors, password/card access control, fingerprint recognition, face
recognition,smart voice, mobile phone Bluetooth, remote control and other smart opening methods.Company Profile
FAQ
Q1: Are you a manufacturer or trading company?
A: We have more than 20 years' experience in automatic door R&D and manufacturing Our factory is in Changsha. Welcome to our factory.
Q2: How long is your warranty?
A: 1 years.
Q3: What is your minimum order quantity (MOQ)?
A: The MOQ is 1 set.
Q4: What are your terms of payment?
A: We accept T/T, Western Union, PayPal, Alipay, Credit card and Cash.
Q5: What is your way of packing?
A: Carton and wooden packing, they are strong, safe and reliable.
Q6: Do you have the products in stock?
A: Most standard automatic door system and parts are in stock.
Q7: How long is your delivery time?
A: Standard product about 3-5 days after payment. Customized products depend on agreement.
Q8: How about the quality of your product?
A: Our maglev products is the most advanced in the world. Not only in terms of duration,but also in performance.Easy installation,easy maintenance
Q9: What are your main products?
A: C3000 is our best seller. It's a life changing hi-tech product, which can provide you extreme silent and smooth experience with max working load over 200kg. Meanwhile, it also has a slim size--40mm*23mm, length customizable.
Q10: Can you accept customization?
A: Yes. We have professional R&D team. we will offer complete solution according to customer' requirements to customize whole set door for project.
