BM55/12 NC Vertical Beveling Milling Machine for Bridge H-Beams Steel Structure C

Product Description

Product Description

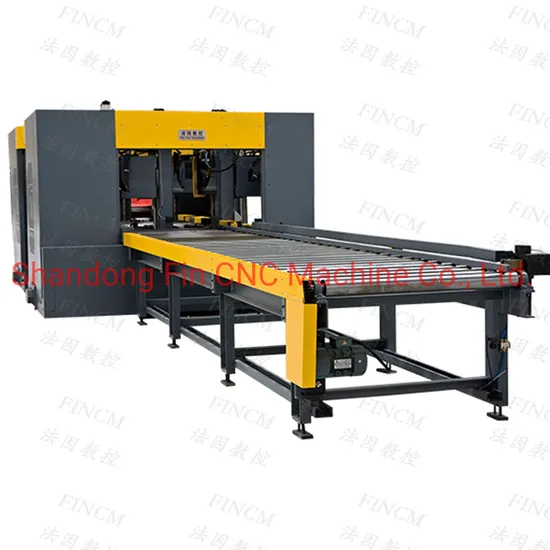

BM55/12 FINCM Bridge H-Beams Steel Structure CNC Vertical Beveling Milling Machine 220-1250mm
This machine tool is mainly used for milling grooves, milling end faces and web milling arc grooves of H-shaped steel end wing plates in steel structure industries such as construction, bridges, and municipal administration.
Equipment advantages:
1. The CNC longitudinal sliding table is used to process the locking of the inclined H-shaped steel at one time.
2. The machine tool has an automatic setting function, which can automatically change the amount of milling, which greatly improves productivity.
3. It adopts frequency conversion roller table to feed, which can be stably conveyed.
4. The scale of the conical milling cutter can be adjusted according to the cutting depth of the milling head, and the groove amount can be aligned to obtain the required groove size.
5. Cemented carbide indexable milling cutters are used for the processing of grooves, milling end faces and arc grooves.
6. The use of programmable controllers, touch screens and other electrical components, and the mechanical transmission uses high-precision mechanical components such as ball screws and linear rolling guides to improve positioning accuracy and extend the service life of the machine tool.
7. The feeding channel, main machine, and discharging channel form an automatic line, which can automatically and continuously mill the H-shaped steel of the same model.

Detailed Photos
Main Techinical Specification:

Longitudinal slide	Quantity	2
	Longitudinal stroke	300mm
	Drive motor power	2*0.37kW
Lateral slide	Quantity	2
	Longitudinal stroke	1050mm
	Drive motor power	2*0.37kW
Milling power head	Quantity	4
	Milling cutter	Indexable carbide blade
	Axial adjustment of conical milling cutter	80mm
	Spindle motor power	4*15KW
Milling column	Quantity	4
	Vertical travel of power head	1300mm
	Vertical movement drive motor	4*2.2kW
	Clamp movement range	100~600mm
	Clamping mode	Hydraulic clamping
Milling deep retaining iron	Quantity	4
	Working schedule	0~40mm
	Drive motor	4 *0.06kW
Conveying roller table	Length of outside conveyor roller table	2*5000mm
	Power of external conveying motor	2* 1.1kw
	Power of motor in machine	4*0.55kW
Overall dimension of main machine (length × wide × (high)		About 15.0×4.0×2.8 m
Machine weight		About 24T

Main Outsourcing Parts Catalog:

Number	Name	Brand	Country
1	Linear slide	HIWIN/CSK	Taiwan, China
2	Pneumatic solenoid valve	Airtac	Taiwan, China
3	Filter regulator	Airtac	Taiwan, China
4	touch screen	Screen pass	Taiwan, China
5	programmable control	Mitsubishi	Japan

Note: The above supporting manufacturers are all designated suppliers of our company. In case of failure to supply under special circumstances, products of the same level will be used instead, but the quality standards shall not be lower than the products supplied by the above suppliers.
