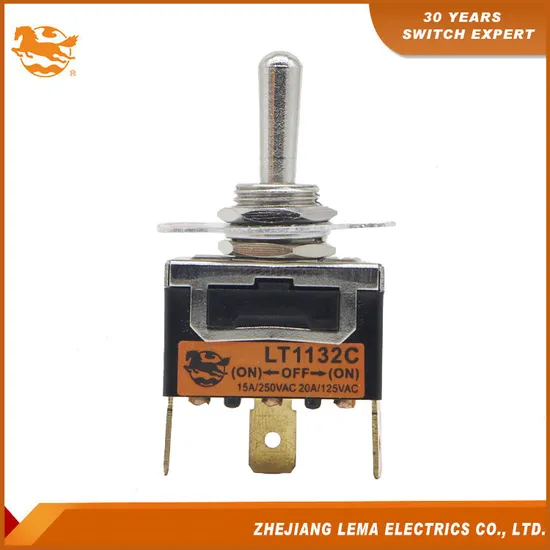

Lema Auto Reset (ON) -OFF- (ON) 3 Pin Momentary Toggle Switch (LT1132C)
Basic Info.
Model NO.
LT1132C
Type
Sing-Pole Three-Position
Application
Electronic Products
Electric Current
15A
Name
Lt1132c
Rating
15A 125/250VAC
Advantage
Long Life, High Reliablity
Terminal Type
Quick Connect Terminal
Color
Black
Contact Type
(on)-off-(on)
Transport Package
Standard Package
Specification
28.5*53.6*16mm
Trademark
Lema
Origin
Yueqing, Zhejiang
HS Code
8536500000
Production Capacity
100000 PCS Per Year
Packaging & Delivery
Package Size
13.00cm * 8.00cm * 10.00cm
Package Gross Weight
0.800kg
Product Description
Factory Price LT1132C Single Pole ON-OFF-ON Auto Reset Toggle Switch| Operating frequency | 30 times/min | |
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
| Dielectric strength | Between non-consecutive terminals | 1,000Vrms, 50/60Hz for 1 min |
| Between non-current carrying metal parts and each terminal | 2,000Vrms, 50/60Hz for 1 min | |
| Between ground and each terminal | 2,000Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance | Durable: 1000m/s2(100G)max. Malfunction: 300m/s2(30G)max. | |
| Operating life | Mechanical life | 100,000 operations min. |
| Electrical life | 50,000 operations min | |
