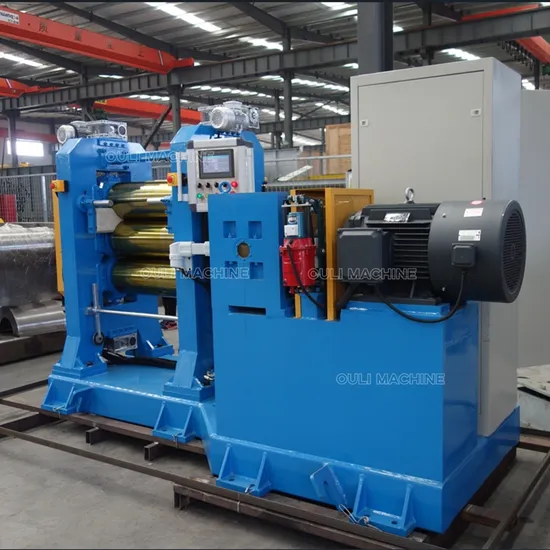

High Technology Calender Machine, PVC Tape Making Machine, Calendering Machine

Product Description

Rubber calender is the basic equipment in the process of rubber products, it is mainly used to put rubber on fabrics, to rubberize fabrics, or to make rubber sheet.
Features:
1. Rolls: chilled alloy cast iron rolls with surface hardness 68~72hs. the rolls are mirror finished & polished, duly grinding and are hollowed for cooling or heating.
2. Roll clearance adjusting unit: nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
3. Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete up to supply pipe terminal.
4. Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.
5. Lubrication: full automatic grease lubrication pump for anti friction roller bearings fitted in dust sealed housing. 6. Stand frame & apron: heavy duty steel casting.
7. Gearbox: hard-tooth reduction gearbox, GUOMAO brand.
8. Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately machined on which whole machine with gearbox and motor are fitted.
9. Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload protection relay, 3 phase indicator and emergency stop switch. Detailed Photos
Product Parameters

Parameter/model		XY-2-250	XY-2-360	XY-2-400	XY-2-450	XY-2-560	XY-2-610	XY-2-810
Roll diameter (mm)		250	360	400	450	560	610	810
Roll working length (mm)		720	1120	1200	1400	1650	1730	2130
Ratio of rubber speed		1:1	1:1	1:1	1:1	1:1	1:1	1:1
Roll speed (m/min)		1.2-12	3-20.2	4-23	2.5-24.8	2-18.7	4-36	2-20
Nip adjust range (mm)		0-6	0-10	0-10	0-10	0-15	0.5-25	0.2-25
Motor power (kw)		15	37	45	55	75	90	160
Size (mm)	Length	3950	5400	5600	7013	7200	7987	8690
	Width	1110	1542	1400	1595	1760	1860	3139
	Height	1590	1681	2450	2460	2760	2988	4270
Weight (KG)		5000	11500	12500	14000	24000	30000	62000

Parameter/model		XY-3-250	XY-3-360	XY-3-400	XY-3-450	XY-3-560	XY-3-610	XY-3-810
Roll diameter (mm)		250	360	400	450	560	610	810
Roll working length (mm)		720	1120	1200	1400	1650	1730	2130
Ratio of rubber speed		1:1	1:1	1:1	1:1.5:1	1:1.5:1	1:1.4:1	1:1:1
Roll speed (m/min)		2-15.9	3-20	3-26	2.6-26.2	3-30	5.4-54	3-30
Nip adjust range (mm)		0-6	0-10	0-10	0-10	0-15	0.5-25	0.2-25
Motor power (KW)		22	45	55	75	110	160	132x3
Size (mm)	Length	3950	5400	5600	7013	7200	7987	8690
	Width	1110	1542	1400	1595	1760	1860	3139
	Height	1810	2440	2520	2900	3800	3950	5050
Weight (KG)		5500	14000	18000	21000	35000	42000	110000

Parameter/model		XY-4-230	XY-4-360	XY-4-400	XY-4-450	XY-4-550	XY-4-610	XY-4-810
Roll diameter (mm)		230	360	400	450	550	610	810
Roll working length (mm)		630	1120	1200	1400	1500	1730	2500
Ratio of rubber speed		1:1:1:1	0.7:1:1:0.7	1:1.4:1.4:1	1:1.5:1.5:1	1:1.5:1.5:1	1:1.4:1.4:1	1:1.4:1.4:1
Roll speed (m/min)		2.1-21	2-20.1	3-26	2.5-25	3-30	8-50	4-40
Nip adjust range (mm)		0-10	0-10	0-10	0-10	0-15	0-10	0-10
Motor power (KW)		15	55	75	110	160	185	132x4
Size (mm)	Length	2800	3300	6400	6620	7550	7880	11400
	Width	930	1040	1620	1970	2400	2560	3900
	Height	1890	2350	2490	2740	3400	3920	5140
Weight (KG)		5000	16000	20000	23000	45000	50000	130000

Our Advantages
Manufacturing Technique
Except rubber calender machine , we have many other products related with rubber production.Such as Rubber kneader,Rubber Bale Cutter, Batch-off Cooling Machine , Rubber Extruder, Tube Extruding Line,Tube Curing Press Machine, Waste Tire Cutting Machine ,Rubber Crusher ,Rubber Powder Grinder ,Reclaimed Rubber Refining Mill ......


About the Package and delivery

Standard Seaworthy Package
We have professional equipment and workers to pack your products well and keep them intact in transit.

Company Profile


Established in 1997, Qingdao Ouli Machine Co., Ltd. was located in Huangdao District, the west coast of Qingdao city,
Shandong province, China.We are specialized in rubber machinery designing,manufacturing and maintenance work.OULI main products:1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter
2. Rubber vulcanizing machine: Four-column press, Frame press, E-type press, tire and tube press, Belt vulcanizing press.
3. Automatic and semi-automatic waste tire recycling equipment
4. Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
5. Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line .
6. Reclaimed rubber production line: XKJ-450 , XKJ-480 Rubber reining mill.
7. Paper roll cutting machine.Ouli machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil.We warmly welcome customers visit our factory and technology discussion is highly appreciated.



Certifications
Marketing Campaign
Packaging & Shipping

FAQ
Q1: Where is your factory located?
A1: Qingdao OULI machine co.,LTD is located at Wangjialou industrial zone ,Huangdao district ,Qingdao city, China Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines
