Product Description

Product Description

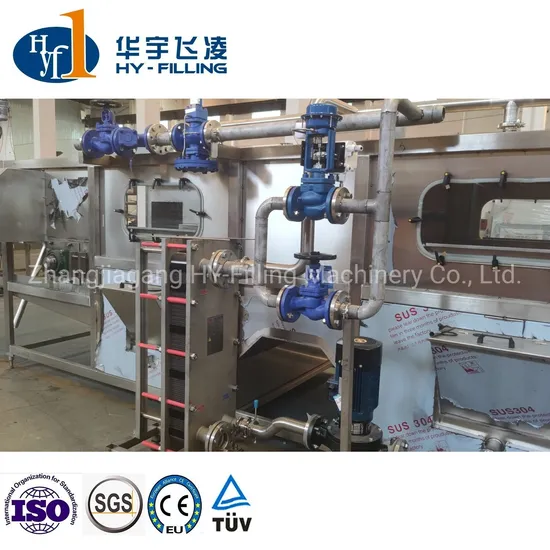

This machine uses continuous chain plate conveyor, running stable, good permeability of water, high strength, and low power consumption. Upper and lower nozzle arrangement is reasonable, small difference in temperature, to ensure the best result of sterilization and min broken bottle. Main drive adopts frequency step less speed regulation. Main body of this machine use fully open wall structure. It's convenient to open top and both side of the machine for clean, maintain and watch at any time. This machine adopts spray tube with rectangular nozzle. Because of its widely square, the nozzles can be adapted to high-volume spray. It has simple structure and hard to be blocked. This machine adopts PID temperature automatic control device, high precision of temperature control. And because the small volume of water tank, temperature has short reaction time, it can save energy. Technical Parameters:

Rated Capacity	3,000-36,000BPH
Bottle Entrance Temperature	10ºC
Bottle Exit Temperature	30-35ºC
Pasteurization Time	12-14 minutes
Total Time From Entrance to Exit	40 minutes
Pasteurization Temperature	62-63ºC ( can be adjustable)
Overheat Temperature	65-68ºC( can be adjustable)
Max. Height of Bottle	H≤300mm
Pasteurization Material	Water(Pressure:2-4Kgf/cm2)
Steam Pressure	4-6Kgf/cm2
Compressed Air Pressure	2-4Kgf/cm2
Rated Voltage	380V
Control Voltage	AC 24V

We provide the Complete turnkey project for beverage production line includes: Water Treatment System (Water Filtration) Preparation/Processing System (Mixing System for Drinks like CSD, juice etc) Injection molding machines (for pet preform) Bottle Blowing Machine (Making plastic bottles) Air Conveyor (Transport empty bottles) Filling Machine (Filling product into bottles) Cap elevator (Transport cap) Blow dryer (Blow away water drops) Flat Convey (Transport bottle) Code Printer (Printing the date on the filled bottle) Labeling Machine (Labeling for filled bottle) Bottle Packing Machine (package the filled bottles) Palletizing Machine (to palletize the cartons)
Auxiliary Machines

	1.Water treatment Water treatment is equipped for pure water, mineral water, and water used in beverage drink. It contains RO, natrium filter, ultra filter, activated carbon filter, ion exchanger, ozone processor etc.
2.Bottle Blowing Machine Divided into: semi-automatic bottle blowing and full automatic bottle blowing machine. Suitable for: PET bottle. Bottle size: 500ml-2L
	3.Filling MachineThe machine is combined with rinsing, filling and capping, which special designed for PET bottled. It is stable characteristic, advanced technology, nice appearance and complete function.
4.Filled Bottle Conveyor System Conveying belt is designed by module, component can be interchanged easily, structure is compact, noise is little, easy assembling and maintaining, have flexibility to combine the bottle type according to the different capacity.
	5.Packaging System Customized: Sleeving Label Machine, Film Shrink-wrapping Machine, Palletizing machine, Date code printer etc.
