Economic Machine Stainless Steel Lump Breaker Machine Grinding Equipment

Product Description

SDCAD New Lump Breaker for Engineering construction, food processing SDCAD Lump Breaker is an efficient, economic machine specially designed for breaking up friable lumps in bulk materials discharged from silos, bins or hoppers. Suitable for engineering construction, food processing, cement, chemical industry, electric power, metallurgy, building materials, etc.
Description

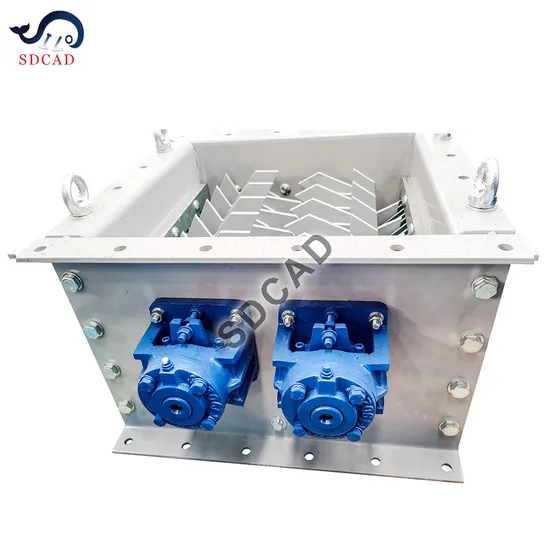

SDCAD Lump Breaker consists of a square cross section casing with upper and lower flange, two horizontal rotating shafts equipped with chopping knives, a grid to hold back lumps, four end bearing assemblies with integrated adjustable shaft seal, an appropriately sized drive unit complete with power transmission.
Function
SDCAD Lump Breaker is the ideal device for breaking up material lumps which have formed during handling or processing but are soft enough to be broken up. Quick rotation of special chopping knives through a fixed grid does the job. The presence of two rotor shafts results in high through put rates. Features ★The crushing blade shaft is detachable in one piece and easy to replace. ★The screen is not easy to be blocked and is easy to disassemble and clean. ★Material: carbon steel, 304 stainless steel
★Contains two rotor shafts equipped with chopping knives and a fixed grid to reduce clearance ★Drive unit with fixed speed gear motor or variable speed drive, chain or gear transmission

Name	Motor Power	Capacity
Lump breaker	4 kw	30t/h
	5.5 kw	50t/h
	7.5 kw	150t/h
Other size can also be customized

Benefits
* Sturdy and compact
* Modular design
* Compact shipping dimensions and easy to install
Installation attention
The Lump Breaker body is fitted with two flanges; the upper one will be used for connecting it to a container (hopper, silo, etc.) or to a loading system (screw feeder, conveyor belt, etc.), while the lower one is meant for connecting the machine to a conveying duct or directly to a transport system below. In applications where the machine is installed at the base of a hopper, it is advisable to provide a fixed safety grid and a cover on the top. Ducts and machines connected to the DLP must be sturdy enough to withstand the weight and vibrations that may be generated during operation. Level the machine on all planes so that the rotors are perfectly horizontal to prevent improper connection with a hopper or with machines connected to it. Before completing anchoring operetion, fit seals or sealants be tween the machine flanges and the other machinery to prevent leakage of product.
Notes on use
The Lump Breaker can be used in two ways: - when the product is particularly crumbly and the particle size is not really significant, it is advisable to use the machine without the contrast grid. The lumps are broken up by the effect of the impact of the product on the rotating paddle wheels and by the speed transmitted by these to the material thrown up against the machine walls. - when the product is particularly hard and compact and the particle size has to be checked, use the lump breaker with the grid.In the latter case, the product that is not in the form of lumps will pass through the grid while the lumps that are larger than the mesh size are held back and are broken up by the rotating blades.
In both cases, crushing and must be done on the product in motion.
After Sales Service

Pre-Sales Service	After-Sales Service
Customer consultant 24 hour online;Engineer team provide design drawing;Skilled staff responsible for production;Take pictures for all Production process.	Provide installation instruction;Solve any problems involved;Tell the machinery maintain guidance;Regular monthly sales tracking.

Contact us Company Profile
FAQ
Q - May you introduce your Factory?A - Our factory is with 10,000m2 factory floor area. More than 100 workers will service for you. Our factory is located in Shandong -the only province which cover all industrial sectors in China.
Q - What's the Advantage of your products?
A - Full Process Solution Provider of Mixing, Storage, Conveying.
Our engineers team provide Customized Solution for every project!
Q - What is your Delivery time?
A - 3-7 days for spare parts; 10-20 days for simple machine. 30-50 days for production line.
Q - What Certificate do you have to ensure quality?
A - CE certification is provided.
ISO health, ISO Quality, ISO Environment are provided.
Q - Do you have Quality Check QC Service?
A - QC checking work is including from material, steel processing, welding, painting, electric system, test, delivery, installation. Quality check for full process
Q - How can I Get Solution to my inquiry?
A - Pls send inquiry to us now,
More project and contact information more better. Engineers will make plan for you. Our Sales manager will Quote to you in the first time.
