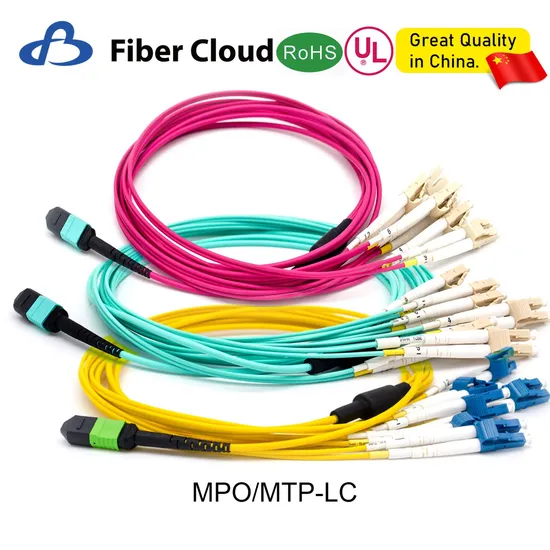

12f 40-100g Sm/Om3/Om4 2m-50m FTTH MTP/MPO Breakout Fanout Jumper Cable Duplex MPO-LC Fiber Optic Patch Cord

Product Description

8/12/24core 2m-50m High Density PVC/LSZH UL Certification MPO-MPO Sm Om3 Om4 Om5 Trunk Cable Patch Cord Fiber Optic Jumper MPO/MTP-LC/SC patch cord
MTP/MPO-LC/SC pre-terminated sector optical fiber means that one end uses an MPO single-head 12-core or 24-core connector, and the other end uses an LC/SC connector. This product is mainly used in the pre-end module box to connect the jumper between the pre-end trunk optical cable and the equipment, making it modular and plug-and-play. Compared with traditional splicing, it greatly improves the convenience and efficiency of work. .
• Use standard high-precision MPO/MTP optical fiber movable connectors and simplex/duplex LC/SC connectors;
• 100% factory pre-terminated and tested to ensure its transmission performance;
• Can be quickly configured and networked to reduce on-site installation time;
• Quickly upgrade and support parallel transmission system applications;
• 100% factory pre-terminated and tested to ensure its transmission performance;
• The length of trunk and branch harnesses can be customized;
• Comply with IEC61754-7; 7. Comply with TIAFOCIS5/604-5, bellcoreGR-1435.
• optical cables of data center;
• Used with MPO/MTP adapter panel;
• Active optical network transceiver control;
• Optical fiber distribution system.
Product Parameters
Technical Characteristics(MPO/MTP)

Items	Description
Connector	MPO(MTP)	LC
Connector Type	Female / Male	UPC / APC
Connector color	OS2: Green OM4/OM3: Aqua	OS2: UPC-Blue ,APC-Green OM4/OM3: Aqua
Fiber Count	4~72 Fibers
Fiber Mode	Single mode: OS2 9/125µm Multimode: OM4 50/125µm, OM3 50/125µm
Fiber Brand	Corning ClearCurve ® multimode fiber and SMF-28® Ultra optical fiber

Optical properties

Type	Unit	Description
Model	--	SM		MM
Polish	(dB)	UPC	APC	UPC	PC
Insertion Loss	(dB)	≤0.3	≤0.3	≤0.3	≤0.3
Return Loss	(dB)	≥50	≥60	≥30	--

MPO Fanout Ordering Information

Fiber Counts	Connector A	Connector B	Loss level	Cable	Fiber Type	Cable Jacket
8 12 24	SM/UPC 12C Female SM/UPC 12C Male SM/APC 12C Female SM/APC 12C Male SM/UPC 24C Female SM/UPC 24C Male SM/APC 24C Female SM/APC 24C Male MM/UPC 12C Female MM/UPC 12C Male MM/UPC 24C Female MM/UPC 24C Male	LC/UPC SM LC/APC SM LC/UPC MM SC/UPC SM SC/APC SM SC/UPC MM FC/UPC SM FC/APC SM FC/UPC MM ST/UPC SM ST/UPC MM	Standard Loss <0.7dB Low Loss <0.35dB	Mini bundle cable Ribbon cable	SM-9/125-G652D SM-9/125-G657A1 SM-9/125-G657A2 MM-62.5/125-OM1 MM-50/125-OM2 MM-50/125-OM3-150 MM-50/125-OM3-550	OFNP OFNR LSZH

Certifications
Packaging & Shipping
Our Service: 1.Customers solutions in days, not weeks. 2.Warmly services with careful attentions. 3.Can provide your specific inquiry within 24 hours. 4.Save much costs, bring more benefit for customer to expand business. 5.We have been 10 years experience in this field. We are the prefessional supplier that you can trust. FAQ: Q1:How can you guarantee the delivery time? A:1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. 2. We can regulate the penalty clause in the contract for the late delay. Q2:What's your best price? A:Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time. Q3:What's your BRAND? A:FIBERCLOUD,YOFC,CORNING... Q4:Can I print our own logo on the product? A:Yes, Please send your logo to us. Q5:Can you provide OEM/ODM service? A:Yes, we can. Please tell us the details of your requirements Q6: How to deal with the faulty? A: First of all, our products are produced under a strict quality control system, and the defective rate will be less than 0.2%.
Secondly, we will conduct strict quality inspections and issue test reports before shipment to ensure the quality of the products. Q7:Why choose us to cooperate? 1. We have first-class production line and strict quality management system. 2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment. 3. We can provide the most competitive price to meet your budget. 4. We also design and innovate the new products based on our rich experience . 5. We have professional team to provide comprehensive one-stop service for you.
6. we know china market very well ,so we can communicate to help you find the products you needed! Hope this would be a good start for our cooperation!
