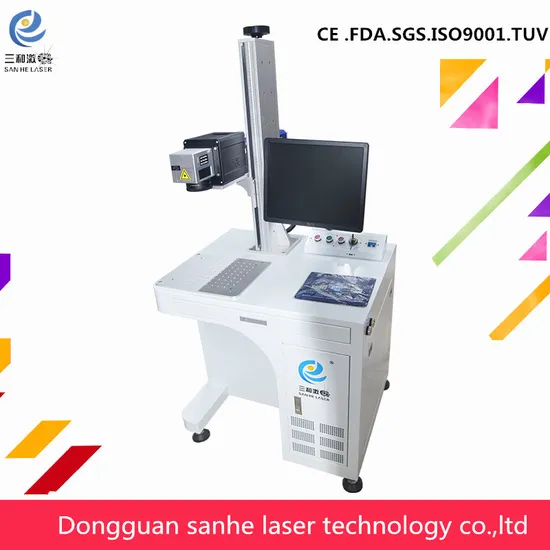

3D Laser Marking Machine High-Precision Three-Dimension Positioning Technology

Product Description

Product features
1.high-precision three-dimensional positioning technology, high speed focusing and scanning system,
laser beam fundamental mode ,hort pulse, peak Value of power high repetition rate for customers to bring the
perfect marking effect
2.Leading three-dimensional graphics processing technology, user-friendy, suitable for dxf plt. cnc, step.
iges and many other Format files
3.high Photoelectric conversion effiency, the machine long life, easy maintenance;
4.Quick marking, greatly improving the processing efficiency
Technical-parameters

model	3HE-3D30W	3HE-3D50W	3HE-3D100W
Output power	30W	50W	100W
Pulse power	1MJ	1MJ	1MJ
Repetitive Rate	30K-200KHZ	50K-200KHZ	50K-200KHZ
Wavelength	1064nm
Guide laser	Red light/655nm wavelength/output1.0mw
Marking range	140mm*140mm
Optional marking range	70mm*70mm/100mm*100mm/170mm*170mm/200mm*200mm/300mm≤400mm
Hight/Depth range	±20mm
Marking model	XYZ axis dynamic focusing
Min line width	0.03mm
Marking speed	≤10000mm/s
Operate system	WIN7/WINXP
Support font	True type,AUTOCAD,Others
1D barcode	CODE39/CODE128/TIF/CODABAR/EAN/UPC
2D barcode	QR/PDF417/DATA Matrix(ECC220)
Support format	PLT/DXF/DWG/SVG/STL/BMP/JPG/PNG/TIF
Working environment	Temperature:10ºC-35ºC Humidity 5%/75%
Power consumption	Single phase 110v/220v optional/50-60HZ
Cooling way	Air cooling
Control connector	PCL-Express/USB-2.0 Optional
Whole machine size	580mm*750mm*1532mm

Our Company
Dongguan Sanhe laser technology Limited Company is a professional manufacture of laser equitment
and the modernization of production and application of high-tech enterprises,In this ten years ,outsanding Sanhe
team has been committed to the study and practice of light conversion , take lifting laser value as our business goals ,
take promoting Chinese national laser industry to the world as our professional mission,we believe that if you want to
success ,you must be professional ,and professional skills and pragmatic approach to service each customer .
Certification:ISO. FDA .CE . SGS .
Vision:when three lines must has somebody be my teacher, we respected team members idea.
Mission:with professional armed the machines, to promote national laser industry.
Values:never compared with others,just to become best ourselves
