Fire Mobile Electric Control Fire Water Monitor Pskdy60zb-Sx

Product Description

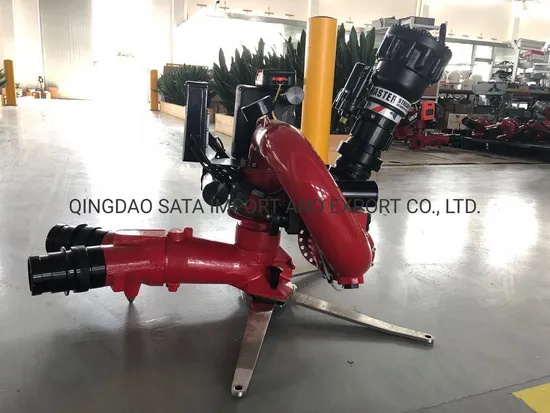

Fire Mobile Electric Control Fire Water Monitor PSKDY60ZB-SX
Model optional:
PSKDY40ZB-SX,PSKDY60ZB-SX,PSKDY80ZB-SX
Our Series Fire-fighting monitor,Automatic tracking and Positioning jet fire-fighting devices and fire-fighting robots fully reflect our company's technological innovation ability. The products are exported to foreign countries and widely used in large space fire-fighting systems, petrochemical fire-fighting, wharf fire-fighting, ship fire-fighting, vehicle-mounted fire-fighting guns, life-saving, rescue equipment, precision equipment fire-fighting and other fields. They are few in China. Professional fire-fighting gun manufacturer with R&D capability and export capability.
1.Advantages:
a. Concentrated jet flow and long range.
b. Large action area and multi-function.
c. Easy to operate and the barrel can either rotate or fasten.
d.Can be equipped on all kinds of fire trucks, fire boats, high platforms, fixed monitor towers and fire pipelines.
2.Working Principle:
The mobile self swinging electric control fire water monitor is suitable for petrochemical enterprises, storage tank areas, aircraft hangars, warehouses, ports, docks, garages and other places. It is also an ideal vehicle mounted fire monitor for fire engines. With large flow and long range, it can extinguish early fires more quickly. It has dual band detection, effectively improve anti-interference ability, image transmission, on-site picture function, linkage function with other fire alarm systems, light weight, compact structure and simple maintenance.
3.Technical Parameters:
We make available customized design for our clients special request.
Application: Boat,Fire Fighting Truck,Fire Robot,Anti-riot Water Cannon Vehicle
4.Components:
Rubber Automatic Pressure Regulating Gun Head,
Antenna,
Runner,
Control Panel Button,
Quick Pull Removable Battery,
DC Motor,
Quick Interface,
Shock Absorption Support Foot
Products introduction:
1. Small size and light weight (self weight 32kg), which can be lifted with one hand and operated by one person. The old mobile electric water cannon is bulky and bulky, requiring 2-3 talents to lift and move.
2. For the replacement of gun head, the test range of 40L is 75m and 80L is 90m. The traditional cross DC is no longer used, but the direct injection in the shape of water column is adopted.
3. The electric control battery adopts a 3-second quick pull-out small removable battery, which is easy to use and can be replaced and charged at any time. The old bulky large cube integrated non removable battery box is no longer used. The remote controller is also small, and can be operated with one hand after studying the palm part according to human function. Even if you wear gloves, the keys are as accurate and comfortable. No longer use the old heavy hands to operate the remote control. Raise the remote control distance to 300 meters.
4. The support part adopts 5-leg stable gravity design, combined with alloy steel cone, and the grip is stably improved.Others models optional
5.Specification:
Flow rate: 40L/S,60L/S,80L/S,
Material: stainless steel,
Rated pressure: 0.8Mpa,
Range: 70M,
Maximum spray angle: 120 degree,
Horizontal return angle: 180 degree,
Horizontal rotation angle: 0-360 degrees,
Pitch angle: 15-85 degree,
Working voltage: 24V,
Wireless remote control distance: 150M,
Weight: 32KG,
Quick pull battery can be replaced
Operation mode: panel operation,
Wireless remote control operation,
Interface configuration: Double 80 fast waterproof belt knotting

Weight in Kg Incl. Nozzle Approx.	32KG	Range of Motion	+85°/+15°vertical , 120° Horizontal
			Other Degrees Adjustable
Material	Body Stainless Steel	Speed(of high speed version)	24°/sec rotation,10°/ sec vertical
	Aluminum Hard Anodized Nozzle	Power Consumption Max.	24V @ 7.5A
	Gear bronze	Power Supply	24 VDC
Flow Range @ 7 Bar (Max recommended)	Nozzle Model: AN40 - 24Vdc Jet Spray Nozzle-Adjustable	Reaction Force	Up to 1.0MPa
		Mechanical Installation	Support must withstand 4000 N of force
	Flow rates:1200LPM-2400LPM -3200LPM@100PSI	Options	Network, radio remote , aux control etc.
		Max. Reach @ 7 bar	70M
