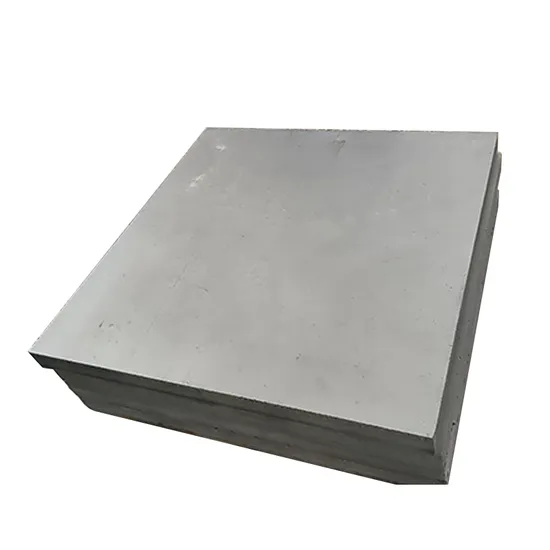

Titanium Industrial Imi 115 125 DIN 3.7025 3.7035 ASTM Gr1 Gr2 Gr4 Grade5 Titanium Sheet Plate

Product Description

titanium industrial IMI 115 125 DIN 3.7025 3.7035 ASTM Gr1 Gr2 Gr4 grade5 titanium sheet plate
Product Description
Titanium sheet and plate are commonly used in manufacturing today, with the most popular grades being 2 and 5.
Titanium is lightweight, strong, corrosion resistant and abundant in nature. Titanium and its alloys possess tensile strengths from 30,000 psi to 200,000 psi (210-1380 MPa), which are equivalent to those strengths found in most of alloy steels. The density of titanium is only 56 percent that of steel, and its corrosion resistance compares well with that of platinum
Grade 2 Titanium
Grade 2 is the commercially pure titanium used in most of the chemical processing plants and is cold formable. Grade 2 plate and sheet can have ultimate tensile strength at and above 40,000 psi.
Plate is often used with the goal to get really close to the final dimensions of the part being made. The material is worked to the closest size of the desired part and the grain structure of the finished piece is more homogenous. Titanium sheet is often used as a heat barrier because titanium stops the heat and does not transfer to the rest of the assembly. Titanium plate and sheet have ballistic properties making it great for driver protection in racing.
Detailed Photos
Grade 5 Titanium
Grade 5 is the aerospace grade and is not cold formable, so it is used more often when no forming is needed. Grade 5 aerospace alloy will have ultimate tensile strength at and above 120,000 psi.
Product Parameters

GRADE	SIZES	STANDARD	APPLICATION
TA1 TA2 TA3 TA4 TA5	0.5-80	GB/T 13810-2007	Fire wall, driver protection, valve covers, bell housings, driveshaft tunnels
GR1 GR2 GR3 GR4 GR4	0.5-80	ASTM B265/ASTM
