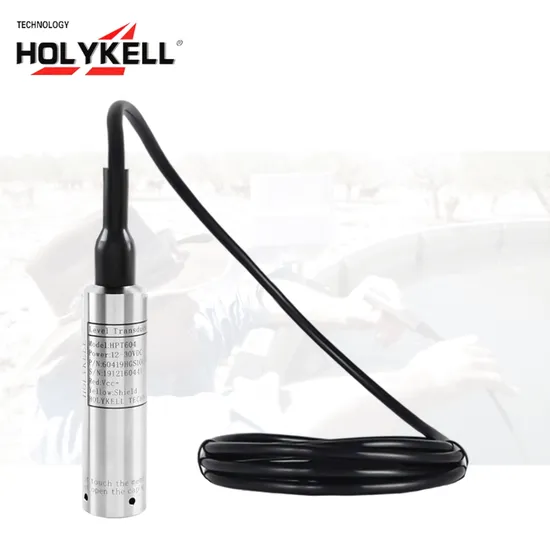

Holykell 0-500m Submersible Deep Sea Water Level Probe Transmitter Sensor

Product Description

Holykell Submersible Deep Sea Water Level Probe
Product Description HPT604 is a sewage water level sensor probe suitable for liquid level and depth measurement. It consists of an imported MEAS TE piezoresistive sensing element encased in 316 SS housing. And adopt the high quality printed-circuit board and wiring, with good electromagnetic compatibility;Anti-interference is enhanced by 300%, the stability is over 10 years.

You will benefit from Our HPT604 wastewater water level sensor ?

Advantage	Benefit
short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection	running reliable and longlasting in harsh condition
breath atmospher and protect moisture enter transducer	without maintenance, even in the most humid environments.
High accuracy 0.25%,Small temperature drift,automatically compensates for changes in barometric pressure	Stability,keep sensor running longer by reducing downtime and maintenance costs
Low-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3V	energy-saving and environmental protection
Anti-corrision ,wear resistance , shock resistance	make it suitable for immersion for a long time in most industrial liquids
8 pore design Anti-blocking Prevent plugging rate increases more than 80%	Simple maintenance ,easy to cleaning and installation

1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response time; Its service life is 2-3 times of similar products.
2. Adopt the high quality printed-circuit board and wiring, with good electromagnetic compatibility;
Anti-interference is enhanced by 300%, the stability is over 10 years.
3. The unique design of 8 hole and The unique filter design, it Can effectively filter out impurities,prevent blockage, prevent shock; Prevent plugging rate increases more than 80%.

Product Parameters

Model	HPT604-A
Pressure Range	0-0.05 Bar…..50 Bar / 0-0.5m…..500m H2O Optional
	*1000m H2O max can be specially customized
	* 80m max for SDI-12 signal
Overload	150% F.S.
Burst Pressure	500% F.S.
Accuracy (Linearity Hysteresis Repeatability)	≤ ±0.5%F.S(Typical); ≤ ±0.25%F.S (by customized) @25 degree C Including non-lin., rep. and hys. Optional
Long-term Stability	≤ ±0.1%F.S. of span/year
Working Temp.	-40ºC~80ºC(non-corrosive medium)
Storage Temp.	-40ºC~80ºC(Nitrile rubber sealing ring); -20ºC~80ºC(fluororubber rubber sealing ring)
Temperature Compensation	0ºC~80ºC
Medium compatible	Compatible with 316L Stainless Steel
Electrical Wire	2 Wires		3 Wires							4 wires
Output	4-20mA		1-5V;0-5V	0-10V	0.5-4.5V		SDI-12	Dual 4-20mA		RS485 Modbus RTU
Power Supply	7-30Vdc		8-30Vdc	13-30Vdc	5Vdc±5%		12Vdc	12-30VDC		3.5-36Vdc
Polarity protection	Yes	Power wires-Yes; Signal Wires-Yes, Power&Signal Wires-No!
Insulate resistance	>100M Ω@50V
Zero Temp. Drift	0.2%FS/ºC(≤100kPa); 0.1%FS/ºC(>100kPa)
FS Temp. Drift	0.02%FS/ºC(≤100kPa); 0.01%FS/ºC(>100kPa)
Electrical connection	Fixed cable with vented tube and water proof IP68
Response time	≤10 ms
Pressure Type	Gauge pressure; Sealed gauge and absolute optional.
Certificate	Exia IICT6, TUV RoHS and CE Certificate
EMC Standard	EN 61326-1:2013; EN 61326-2-3:2013
	EN 61000-6-2:2005; EN61000-6-4:2007+A1
Lightning Protection (optional functions)	Air conduction more than 8000V; external sensor more than 4000 Voltage protection.
Cable optional	Cable materials are optional according to request, we offer 3 types of special cables as follow:
	PE Cable(Water Proof); PU Cable(Oil/Fuel Proof); FEP Cable(Anti-Corrosive)
