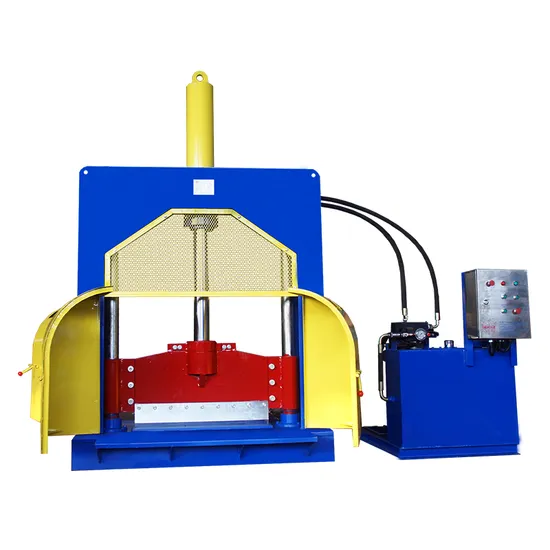

RC-60 Hydraulic Vertica Blade Cutting Machine for Plastic Rubber
| US$5,720.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RC-60
Material Processed
Plastic Bottle
Plastic Type
PE
Screw
Single-Screw
Automation
Non Automation
Computerized
Non-Computerized
Certification
CE
Name
Plastic Hydraulic Cutter
Foundation
Cuting Plasitc Into Small Piece
Transport Package
Container
Specification
40Ton
Trademark
QIANGYE
Origin
Guangdong, China (Mainland)
HS Code
8477800000
Production Capacity
50sets/Month
Product Description
Feature :1.This Rubber Cutting Machine mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system and etc. Simple structure,convenient to operate.
2.The lead is casted on the base right under the rubber knife for protecting the edge of the rubber knife.
3. Two limit switches are installed on the frame to control the reversal valve to control the movement direction of the rubber knife, at the same time it protects the cover of the cylinder
| Model | Blade width (mm) | Stroke (mm) | Pressure (ton) | Oil pump discharge (L/Min) | Oil capacity (KG) | Motor power (KW) | Total weight (KG) | Dimension (mm) |
| RC-40T | 900mm | 900mm | 40 ton | 46 L/min | 70kg | 7.5kw | 1400kg | 1200X900X2800mm |
| RC-60T | 1000mm | 900mm | 60 ton | 63 L/min | 110kg | 11kw | 2500kg | 1300X800X2900mm |
| RC-100T | 1200mm | 1000mm | 100 ton | 63 L/min | 130kg | 15kw | 3100kg | 1400X1000X3100mm |
| RC-250T | 1500mm | 1000mm | 250 ton | 250 L/min | 200kg | 37kw | 4000kg | 1800X1200X3300mm |
| RC-300T | 1500mm | 1000mm | 300 ton | 340 L/min | 250kg | 37+11kw | 4500kg | 1800X1200X3400mm |
