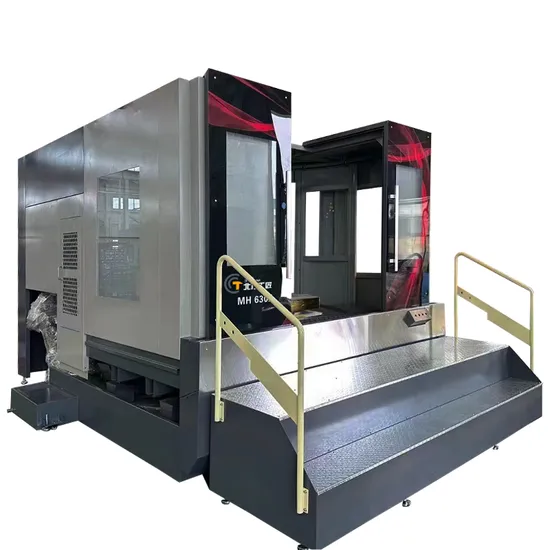

CNC Horizontal Machining Centers for Milling, Boring, Drilling, Tapping and Thread Cutting

Product Description

Performance
- It is suitable for processing spare parts in automobile, ship, metallurgical mine, machine tool manufacture and other industries,especially in box type and complicated parts. .
- This machine is a double-pallet precision horizontal machining centre with a three-point support positive T-bed, fully closed-loop control, automatic table exchange, table automatic indexing , spindle speed stepless change, automatic tool change, etc. .
- The machine has high efficiency,high precision, high rigidity, etc. It is a good equipment to improve the efficiency and flexibility of parts processing, and also good for large and medium batch parts processing. Product Description

Specifications	units	MH630A	MH800
Table size	mm	630X630	800X800
Max.table load	kg	1500	2000
Minimum indexing unit	°	1	1
Max speed of turning table	rpm	11.1	16.7
X axis travel	mm	111100	1600
Y axis travel	mm	750	1000
Z axis travel	mm	950	1000
Distance from the spindle center to table surface	mm	0-950	160-1160
Distance from the spindle nose to table center	mm	150-1250	200-1400
Max. Workpieceswing diameter	mm	φ1000	φ1500
Spindle taper	--	BT50	BT50
Max. Spindle speed	rpm	6000	6000
Main motor power	kW	15/18.5	15/18.5
Tool magazine type	--	arm type	arm type
Tool magazine capacity	pcs	24	24
Max. Tool dia(full/empty)	mm	112/200	112/200
Max tool length	mm	350	350
Max. Tool weight	kg	25	25
Min. Time of tool exchange (T-T)	s	3.7	3.7
Rapid feed speed(X/Y/Z)	mm/min	2400	2400
Cutting feed speed(X/Y/Z)	mm/min	10-10000	10-10000
Positioning accuracy(X/Y/Z)	mm	0.008	0.008
Positioning accuracy(B)	″	7	7
Repeat positioning accuracy(X/Y/Z)	mm	0.005	0.005
Re-positioning accuracy(B)	″	±3.5	±3.5

About Us

Certificate display

Visiting customers

FAQ

1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year. 2. Can we pay by L/C or others ? Yes ,you can make the payment by T/T , l/C etc. 3. What is your payment terms ? 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 4.When is the delivery time? The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 5. How to handle the warranty period? During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost. 6.Can your company send the technical personnel to our company and direct our workers for free? When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD50.00-100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
