Free for Intercom Surveying Instrument

Product Description

Key Features :
1.Color screen without prism measurement work
2.With 8 g OTG usb flash drive
3.400m reflectorless
4.2.8-inch color screen, 240 × 320 pixels
hi target total station with english system and color screen

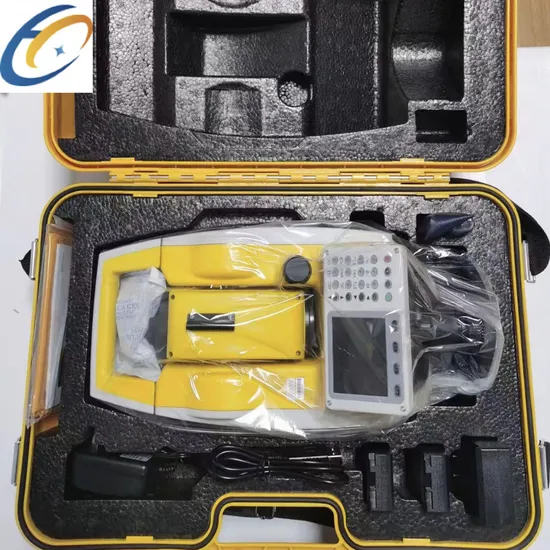

Accessories of Total Station ZTS420R

Hi-target ZTS-420R Total Station
Angle Measurement
Measurement Method:	Absolute Encoding
Minimum Readout:	1″/5″/10″(0.3mgon/1.5mgon/3mgon)optional
Accuracy	2"
Distance Measurement (with Reflector)
Single Prism	3000m (9,842ft.) under good condition3
Three Prisms	6000m (19,685ft.) under good condition3
Reflective Sheet	800m (2,624 ft.)
Accuracy	2mm +2ppm
Measuring Time (Fine/Quick/Tracking)	1s/ 0.5s
Distance Measurement (Reflectorless)
Reflectorless Range	400M
Single Prism	>7500m (24606ft.)
Accuracy	3mm+2ppm
Measuring Time	1.5s
Telescope
Magnification	30X
Field of View	1°30′ (2.7m at 100m)
Minimum Focusing Distance	1.5m
Reticle	Illuminated
Compensator
System	Dual-axis (optional)
Working Range	±3′
Setting Accuracy	1″
Bluetooth
Interface	Standard RS232, SD card4, USB pen drive
Internal Data Memory	Approx. 20,000 Points
Data Format	ASCII
Operation
Operation system	English Real-time Operating System
Display	2.8-inch High resolution backlight black and white display with contrast adjustment/ Graphics: 240 x 320 pixels / Character: 6 lines x 25 characters
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Laser Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Power Supply
Battery Type	Rechargeable Li-ion battery
Voltage/Capacity	ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400	Optimal 16 hours5 (Continuous angle measurement every 30 seconds) / 10 hours (typical)
Measuring Times	Approx. 12000 times
Environmental
Operating Temperature	-20ºC ~+50ºC( -4ºF to +122ºF)
Storage Temperature	-40ºC ~+70ºC(-40ºF to +158ºF)
Dust&Water Proof (IEC60529 Standard)/Humidity	IP55
