20 Cubic Meters Different Medium Filling Tank

Product Description

Product DescriptionCLW 20m3 LPG Storage TankLPG storage tanks are specialized products for the storage of liquefied petroleum gas, belonging to special equipment. The material includes Q345R & Q370R, and AS-ME standard material SA516M & SA517M.The shape is cylindrical with 2 end plates.Usually, the Shell is always thicker than the end plate according to the volume of the tank.Liquefied petroleum gas is a flammable and explosive medium, so the storage tank of this medium should be strictly required during installation and usage. Operators must comply with operating specifications.The production flow includes Computer Controlled cutting, Computer Controlled Rolling, submerged arc welding, assembly, non destructive testing, heat treatment, hydraulic test pressure, blasting and painting.Product Advantage 1.Advanced technology and equipments, mature experience 2. Selectable LPG tanker volume: 5 CBM to 120CBM 3. European and American brands of safety accessories to be choosed 4. 100 percent welding line detection 5. Certificate of ISO, CCC & ASME 6. LPG tanker series ranks Top 5 in China

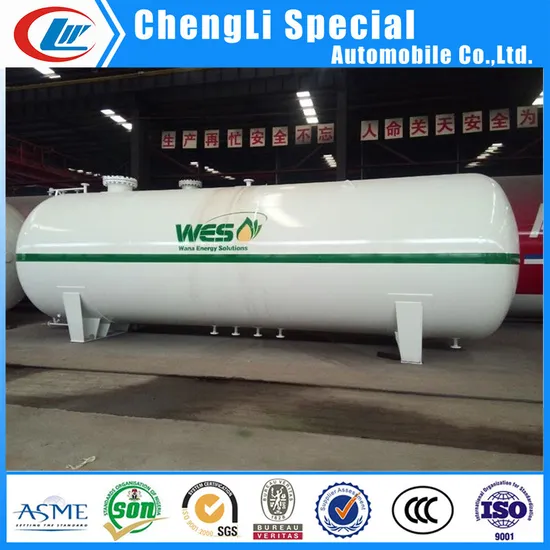

Product Image The specification of CLW 20m3 LPG storage tank

Volume of Tank		20 CBM
Filling Weight		10000 kg
Tank Weight		5050 kg
Thickness of Shell (mm)		12 mm
Thickness of End plate (mm)		12 mm
Tank Diameter (mm)		2100 mm
External Dimensions (mm) (length x width x height)		6154 x 2124 x 2714 mm
Material of Tank and Main Pressure Parts		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa
Test Pressure		2.22 Mpa
Corrosion Allowance		1 mm
Medium Density		420-590 kg/ cbm
Main parts of LPG Tank
Item	Specification/ mm		Quantity
Discharge Pipe	DN50-2"		1
Inflow Pipe	DN50-2"		1
Outlet	DN50-2"		1
Gas phase balance pipes	DN50-2"		1
Manhole	DN450		1
Drain Hole	DN50-2"		1
