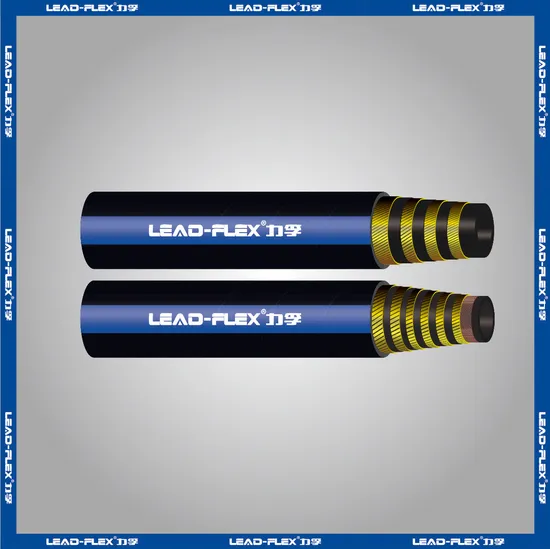

Sixth-Floor 35MPa Wire Multi-Spiral Hydraulic Rubber Hose

Product Description

Sixth-floor 35Mpa Wire Multi-Spiral Hydraulic Rubber HoseProduct Description
Multi-layer steel wire spiral hydraulic hose
Structural features: It is a multi-layer steel wire reinforcement layer with spiral winding. The spiral winding method of the steel wire allows the hose to be more evenly distributed in various parts of the hose when it is subjected to high pressure, enhancing its pressure resistance. Its working pressure is generally high and can withstand tens of MPa or even higher pressure.
Performance: It has excellent fatigue resistance. When the pressure of the hydraulic system changes frequently, it can maintain a good working condition and is not prone to damage due to fatigue. At the same time, it has good flexibility, is convenient for installation and layout, can be bent according to actual needs, and can adapt to more complex pipeline system layouts.
Sealing performance: It can effectively prevent hydraulic oil leakage and ensure the efficient operation of the hydraulic system. And it has good corrosion resistance. The internal steel wire reinforcement layer and the external rubber layer cooperate with each other to resist the corrosion of the hose by the external environment and hydraulic media.hose is widely used in the hydraulic systems of various heavy machinery, construction machinery, agricultural machinery, and other equipment, and is a key component to ensure hydraulic power transmission.
Product Parameters

LEAD-FLEX SAE 100R13

PoductSeiss	Norinal Damets	IDmm		W.Dmm		ODmm		W.P	B.P	Min.B.R	W.T
	Mm	Min	Max	Min	Max	Min	Max	Mpa	Mpa	Mm	Kg/m
R13-12-19	19	18.6	19.8	28.2	30	31.0	33.2	35.0	140.0	240.0	1.36
R13-16-25	25	25	26.4	34.9	36.4	37.6	39.8	35.0	140.0	300.0	2.12
R13-20-31.5	32	31.4	33.0	45.6	48.0	48	51.3	35.0	140.0	420.0	3.75
R13-24-38	38	37.7	39.3	53.1	55.5	56	58.8	35.0	140.0	500.0	5
R13-32-51	51	50.4	52.0	66.9	69.3	69.3	72.7	35.0	140.0	640.0	7.13

Detailed Photos
High-pressure Bearing Capacity
It can withstand very high pressure, and the working pressure is usually above tens of MPa. This is because the spiral winding method of the multi-layer steel wire reinforcement layer enables the pressure to be evenly distributed in various parts of the hose, effectively enhancing the overall compressive performance of the hose.Good Flexibility
Compared with some rigid pipes, this hose has better flexibility. It can be bent according to the actual installation requirements, with a relatively small bending radius, which can adapt to the complex hydraulic system pipeline layout and facilitate installation and connection in equipment with limited space.Fatigue Resistance
The hose can maintain good performance under the frequent pressure changes and pulses of the hydraulic system. Due to the structural characteristics of the steel wire reinforcement layer and the use of high-quality rubber materials, the hose can withstand long-term pressure pulses and is not prone to fatigue damage such as rupture or leakage.Sealing Performance
It has excellent sealing performance, the inner rubber layer is in good contact with the hydraulic medium, and the outer rubber layer and joints and other connection parts can effectively prevent hydraulic oil leakage. This is crucial to ensure the efficient operation of the hydraulic system and avoid environmental pollution.Corrosion resistance
The internal steel wire reinforcement layer and the external rubber layer cooperate to resist the corrosion of the hose by the external environment and hydraulic media. Whether in a humid environment, a place with chemical substances, or in contact with different hydraulic media, the performance of the hose can be kept stable.Company Profile
FAQ
Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and have a good relationship?
A:1. We keep good quality and competitive prices to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
