IEC 60068-2-75 Pendulum Hammer Striking Tester

Product Details

Product Description

Product Description
Application
IEC 60068-2-75 provides three international standardized test methods for determining the ability of a specimen to withstand rigorous and stringent impacts and is used primarily to establish an acceptable level of robustness when assessing the safety of a product.

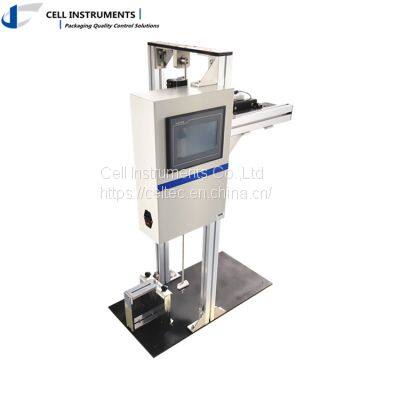

PHS-01 Pendulum Hammer Striking Tester is the pendulum hammer method that has an autolifting pendulum hammer that can be automatically released at different impact heights. It is used for determination of the ability of a sample to withstand specific severities of impact.
System Description
PHS-01 has a steady structure and is mainly composed of control box, pendulum lifting and releasing unit, and sample clamping unit.
Technical Features
It's a PLC controlled unit(industrial level stable) and HMI touch screen operated. Sychonized belt driven pendulum lifting and meganetic pendulum releasing design. By simply clicking the impact engergy on screen, the system will automatically lift the hammer to the corresponding height. Then when test start, the pendulum automatically releases from the latch and impact the sample.
Sample mounting fixture is strictly standard conformed and it can be adjusted with plywood thickness and can be turned about as well, to keep sample perpendicular to impact hammer direction.
● PLC control inside & HMI touch screen
● Pendulum automatically lifting and electromagnetic releasing
● Impact height is automatically reached
● Different striking elements available
● Dual language display available
● Sample mounting fixture direction adjustable

Impact Energy	0.14J, 0.2J, 0.35J, 0.5J, 0.7J, 1J, 2J, 5J
Equivalent Mass	0.25, 0.25, 0.25, 0.25, 0.25, 0.25, 0.5,1.7
Height of Fall	56,80,140 ,200,280,400,400,300mm
Plywood	175*175mm, 8mm thickness by user
Power	AC 110~220V 50/60Hz
Control	PLC and human machine interface

Major Standards
IEC 60068-2-75, GB/T 2423.55
